VP-5201-CE7 12.1-inch WinCE ViewPAC with Cortex-A8 CPU and Touch Panel
12.1-inch WinCE 7.0 ViewPAC combining HMI, I/O expansion and control in one panel-mount unit with a 1 GHz Cortex-A8 CPU.
- Cortex-A8 1.0 GHz CPU running Windows CE 7.0 with hard real-time capability
- 12.1-inch 800 x 600 TFT LCD with 5-wire resistive touch panel
- 1 x 10/100/1000BASE-T Ethernet, 3 x RS-232/RS-485 serial and 2 x USB 2.0 host ports
- 512 MB SDRAM, 256 MB Flash, 128 KB MRAM and 16 KB EEPROM, plus SD card storage up to 32 GB
- Dual watchdog timer, built-in real-time clock and 64-bit hardware serial number
- NEMA 4/IP65 front panel, fanless design, operating range -10 to +60 °C
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "VP-5201-CE7 12.1-inch WinCE ViewPAC with Cortex-A8 CPU and Touch Panel"

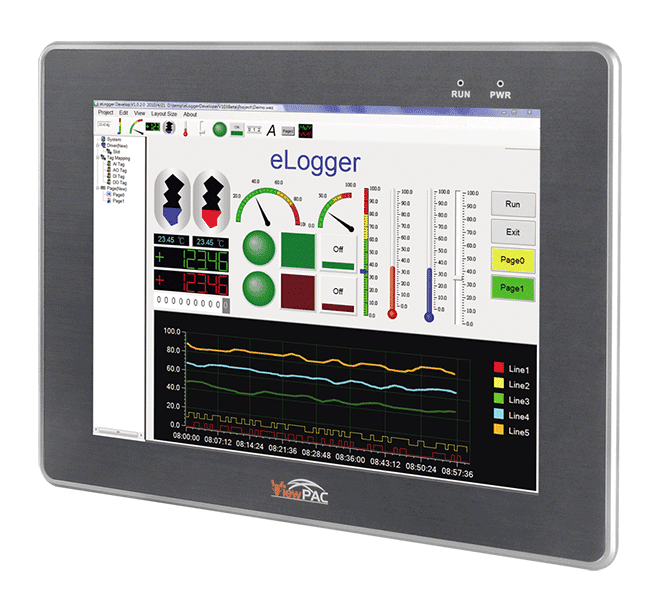

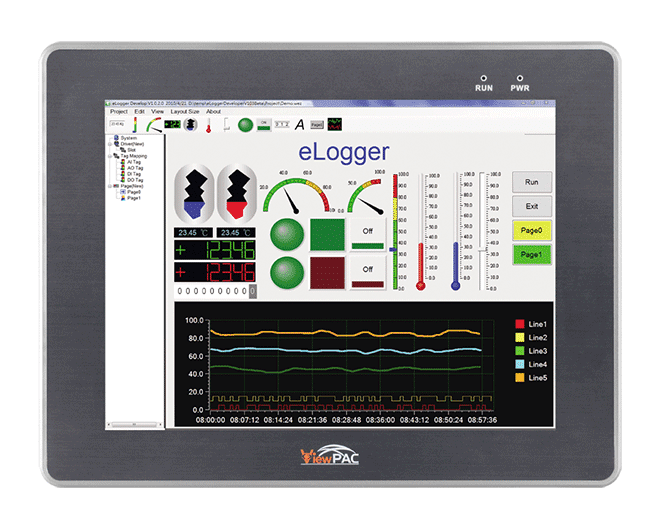

The VP-5201-CE7 CR is a standard 12.1-inch ViewPAC that brings operator interface, computing and control into a single panel-mounted unit. It suits applications where an HMI, data acquisition and control logic need to share one device, rather than being split across a separate panel PC and PLC.

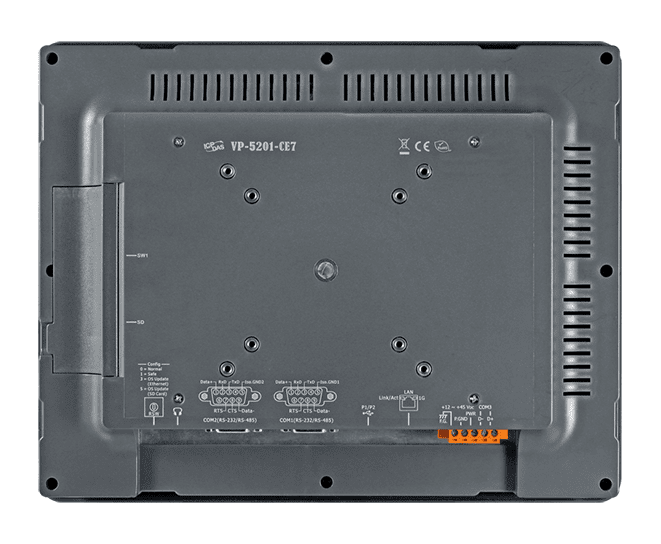

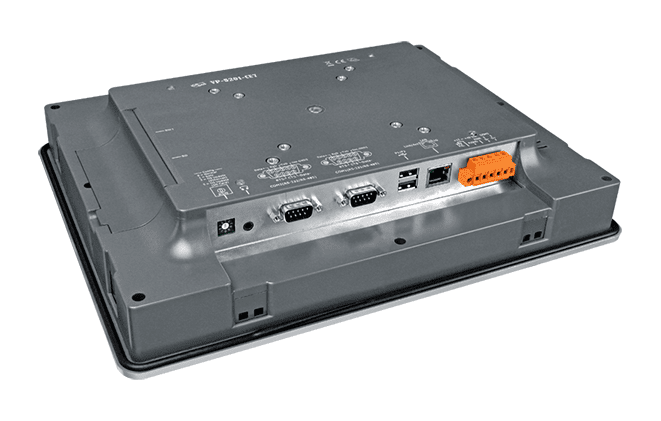

At its core is a 1.0 GHz Cortex-A8 processor running Windows CE 7.0, with 512 MB DDR3 SDRAM, 256 MB Flash (SSD), 128 KB MRAM and 16 KB EEPROM for data retention, and an SD card slot supporting up to 32 GB. The 800 x 600 TFT LCD has a resistive 5-wire touch panel. Connectivity includes one 10/100/1000BASE-T Ethernet port, three RS-232/RS-485 serial ports with 2500 VDC isolation, and two USB 2.0 host ports. I/O can be expanded using Ethernet and RS-485 I/O modules.

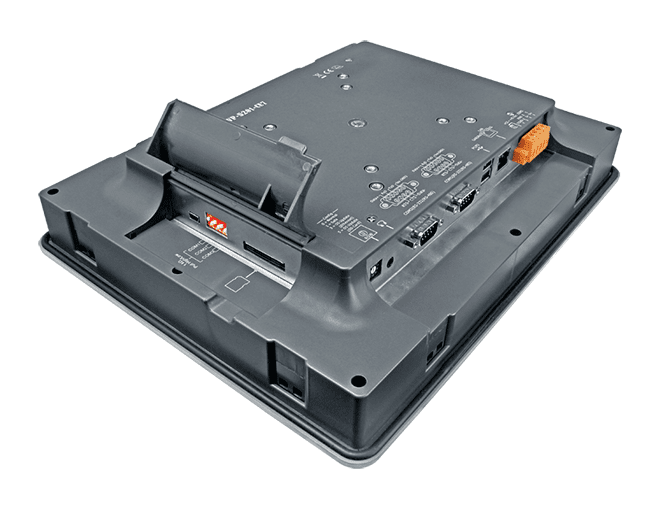

The unit is designed for panel installation, with an NEMA 4/IP65 rated front panel and a fanless design rated for -10 to +60 °C. Power is accepted from +12 to 48 VDC or from PoE, and the built-in real-time clock, dual watchdog timer and 64-bit hardware serial number support long-running and software-protected deployments.
Applications
- HMI and operator panels for machine control
- Data acquisition and control in a single panel-mounted unit
- Industrial automation cabinets and machine front panels
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| Ports: | 1 Ethernet, 3 serial, 2 USB |
| PoE: | Yes |
| Isolation: | 2500 VDC (serial), 1 kV (power) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic, IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage | SD Card (supports up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | TFT LCD |
| Size | 12.1" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Color | 16 bit RGB, 64 K full Colors |
| Contrast Ratio | 500:1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 (2500 VDC Isolated), 2 x RS-232/RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC (1 kV Isolated ) |
| Consumption | 14.0 W |
| Powered from PoE | Yes |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 324 x 255 x 64 (W x L x H) |
| Panel Cut-out (mm) | 310 x 241, ±1 (W x H) |
| Installation | Panel mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 2290 g |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
