U-7551M OPC UA I/O Module, 16-ch DI with 2-port Ethernet Switch
16-channel digital input OPC UA I/O module with a dual-port Ethernet switch for daisy-chain wiring. Supports OPC UA, MQTT and RESTful API, with PoE powering.
- Supports OPC UA Server and Client, MQTT Client and RESTful API over HTTP and HTTPS
- All three protocols can run simultaneously
- 16 digital input channels, sink/source, wet contact, 10 to 50 VDC ON level
- Dual-port 10/100 Base-TX switch for daisy-chain topology
- IEEE 802.3af (Class 3) PoE or +12 ~ +48 VDC terminal block power
- IF, THEN, ELSE rule settings and schedule-based execution
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "U-7551M OPC UA I/O Module, 16-ch DI with 2-port Ethernet Switch"

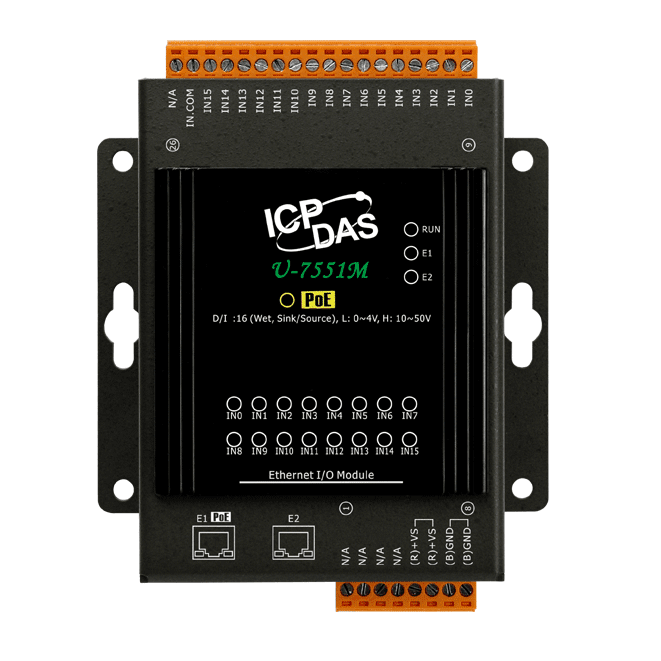

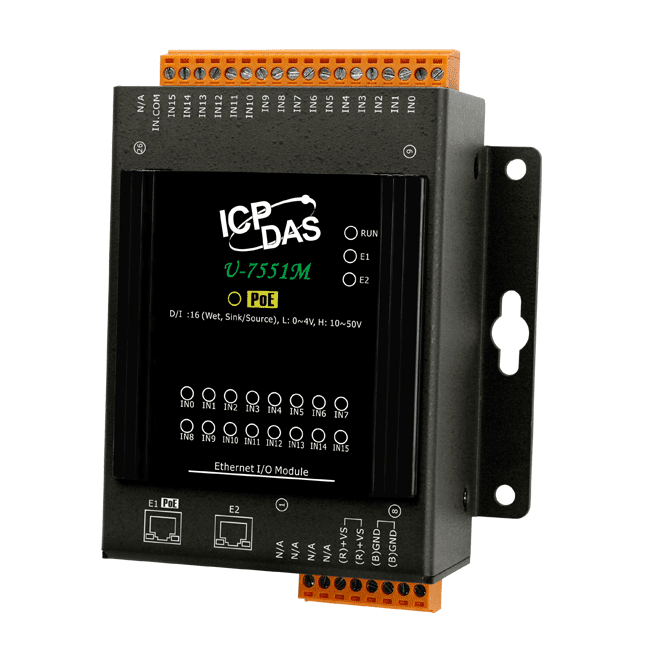

U-7551M is an Ethernet I/O module that reads 16 wet-contact digital inputs and publishes their status over OPC UA, MQTT or RESTful API. It can run all three communication methods at the same time, so a single device can feed a cloud platform and a field control system together.

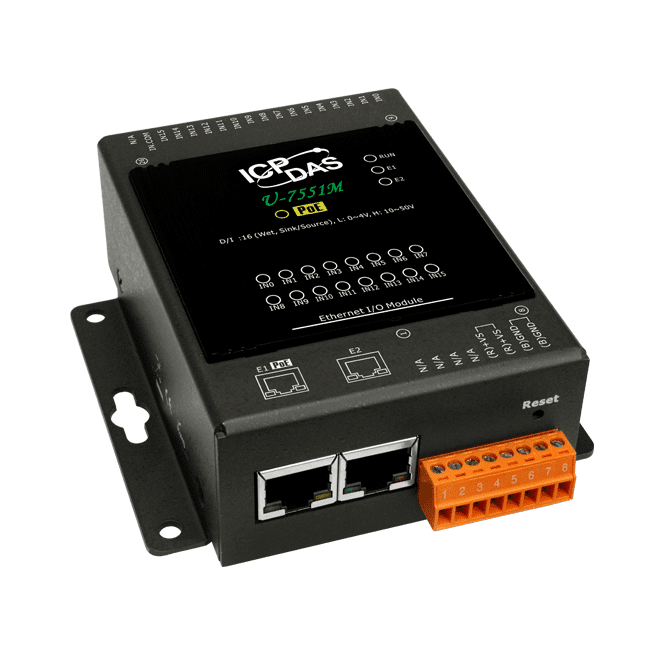

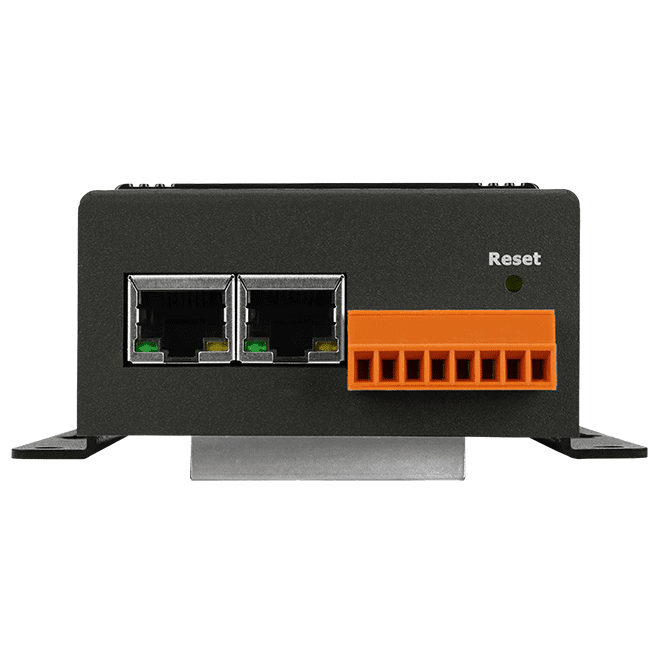

A built-in dual-port switch lets you chain modules along the network rather than home-running each one to a switch, which reduces cabling and switch count. The module can be powered over IEEE 802.3af (Class 3) PoE or from a 12 to 48 VDC terminal block, and it includes a web user interface for configuration, control and I/O monitoring through a browser.

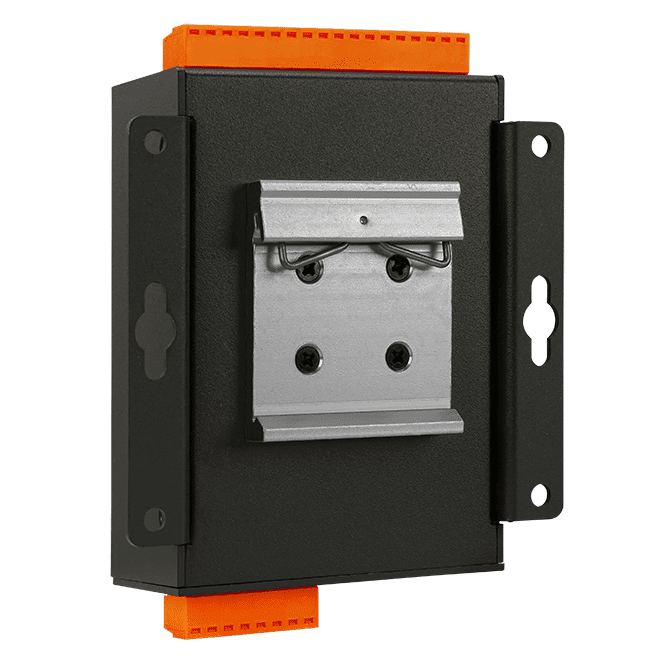

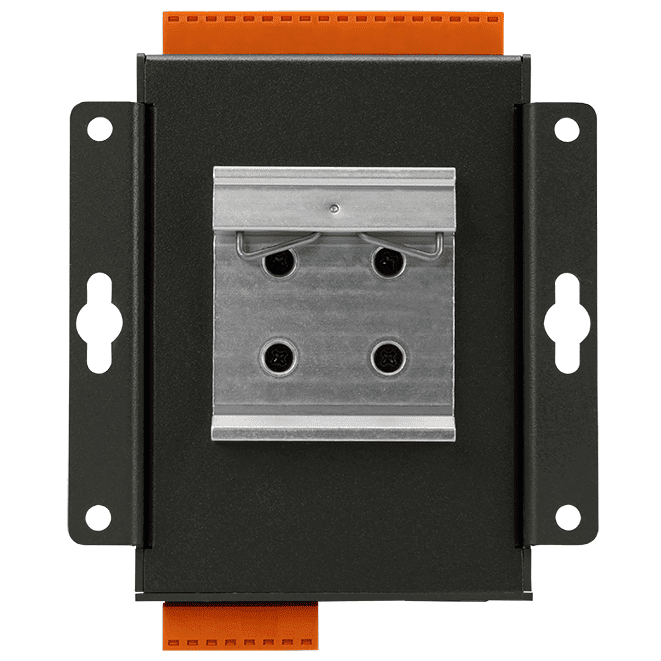

Local logic is handled with IF, THEN, ELSE rules on I/O and virtual points, and a schedule function runs rules at set times. The module suits DIN-rail installations in environments from -25 °C to +75 °C.
Applications
- Transmitting digital input status to cloud or field control systems for display, analysis or control strategy
- Local rule-based actions on digital inputs and virtual points
- Time-scheduled execution of I/O rules
- Distributed digital input monitoring with daisy-chained Ethernet wiring
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 16 |
| Ports: | 2 |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
