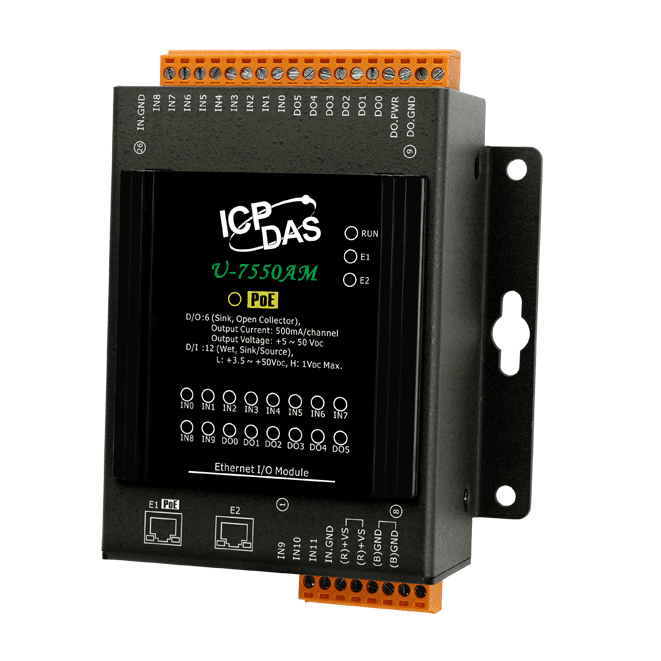

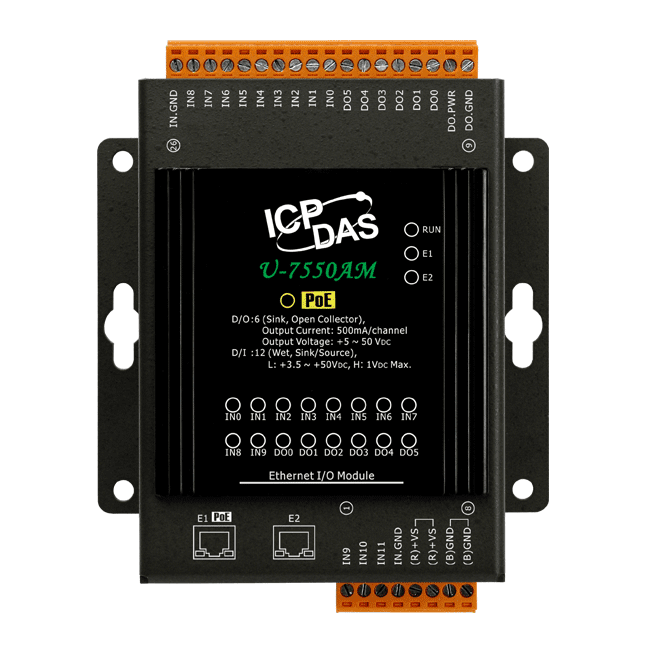

U-7550AM OPC UA I/O Module, 12-ch DI, 6-ch DO, 2-port Ethernet Switch
OPC UA I/O module with 12 digital inputs, 6 digital outputs and a dual-port Ethernet switch for daisy-chaining. Powered by PoE or 12 to 48 VDC.
- Simultaneous OPC UA Server / Client, MQTT Client and RESTful API (HTTP and HTTPS) communication
- 12 digital inputs (dry or wet contact) and 6 isolated open-collector digital outputs

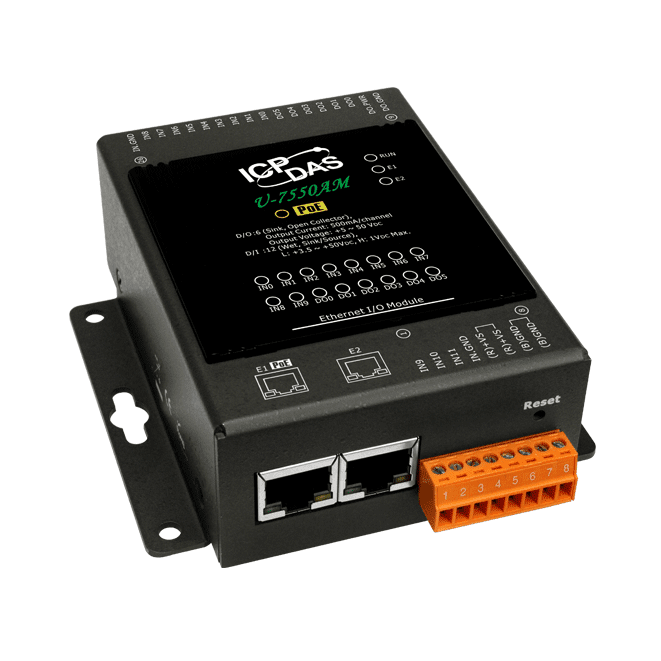

- Dual-port 10/100 Base-TX switch for daisy-chain topology
- IEEE 802.3af (Class 3) Power over Ethernet, or +12 to +48 VDC terminal block power
- On-board IF, THEN, ELSE rule setting and time-based scheduling
- I/O trigger messages to CSV file or line for device tracking
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "U-7550AM OPC UA I/O Module, 12-ch DI, 6-ch DO, 2-port Ethernet Switch"
The U-7550AM connects 12 digital inputs and 6 digital outputs directly to OPC UA, MQTT and RESTful API networks. It suits engineers who need I/O values in a SCADA, cloud or field control system without adding a separate gateway. OPC UA Server and Client, MQTT Client and RESTful API can run at the same time, so the networking mode can be chosen to suit each installation.
A built-in dual-port 10/100 Base-TX switch allows modules to be daisy-chained, reducing cabling and switch count. The unit is IEEE 802.3af (Class 3) PoE capable, or can be powered from a terminal block at +12 to +48 VDC. Configuration, control and I/O monitoring are handled through the built-in web interface, with no additional software required.
On-board logic rules (IF, THEN, ELSE) and a scheduler let the module act on local I/O and virtual points without a host controller. I/O trigger messages can be written to a CSV file or sent to a line for device tracking, and the module supports IoTstar cloud management software.
Applications
- Transmitting I/O status to cloud systems for display, analysis or control strategy
- Feeding digital I/O values into field control systems over OPC UA or MQTT
- Local event logic and scheduled actions on digital I/O without a host controller
- Device tracking through I/O trigger messages written to CSV or a line
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 12 |
| Digital outputs: | 6 |
| Ports: | 2 |
| PoE: | IEEE 802.3af (Class 3) |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 12 |
| Type | Dry Contact, Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink |
| ON Voltage Level | Dry: Close to GND Wet: 1 VDC (max.) |
| OFF Voltage Level | Dry: Open Wet: +3.5 ~ +50 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +60 VDC |
| Digital Output | |
| Channels | 6 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 500 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.3 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

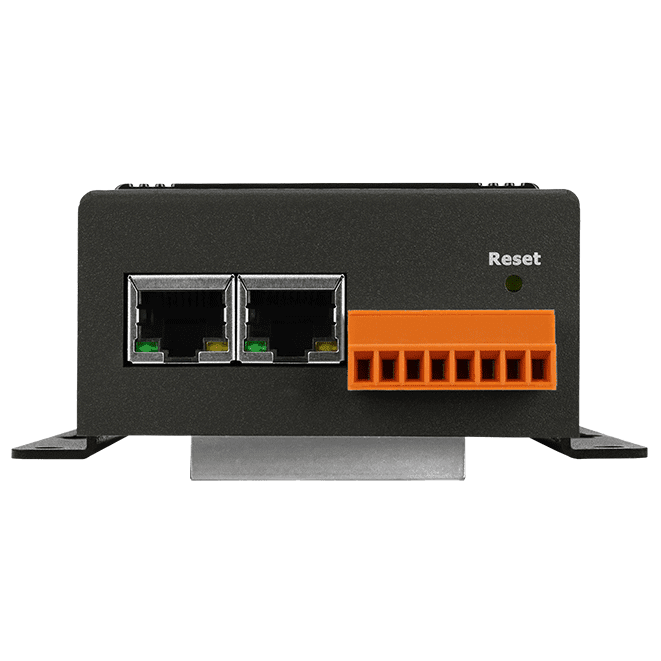

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.3 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

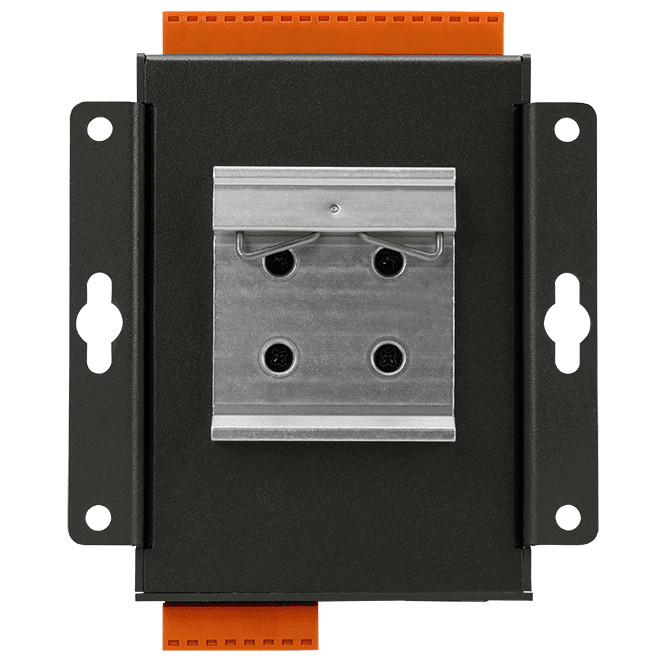

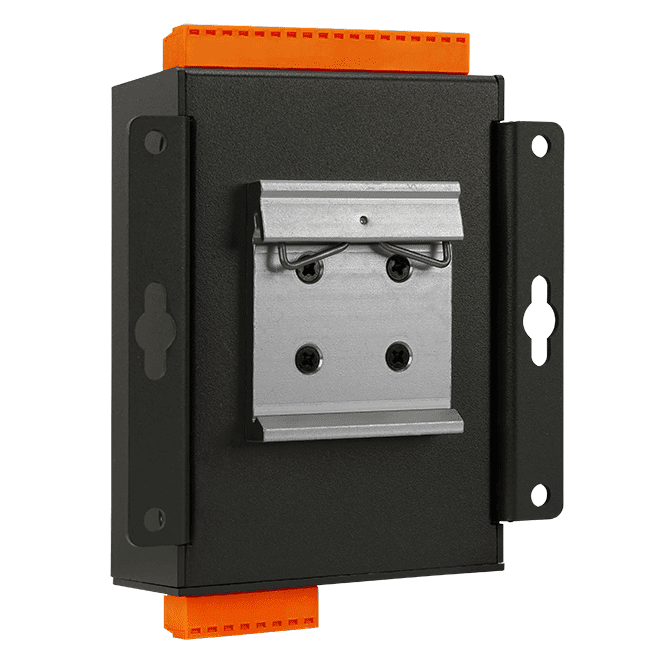

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
