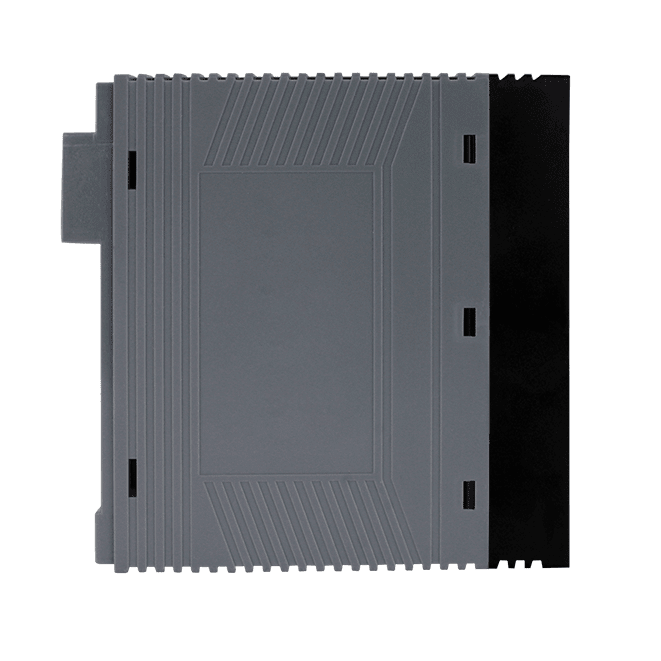

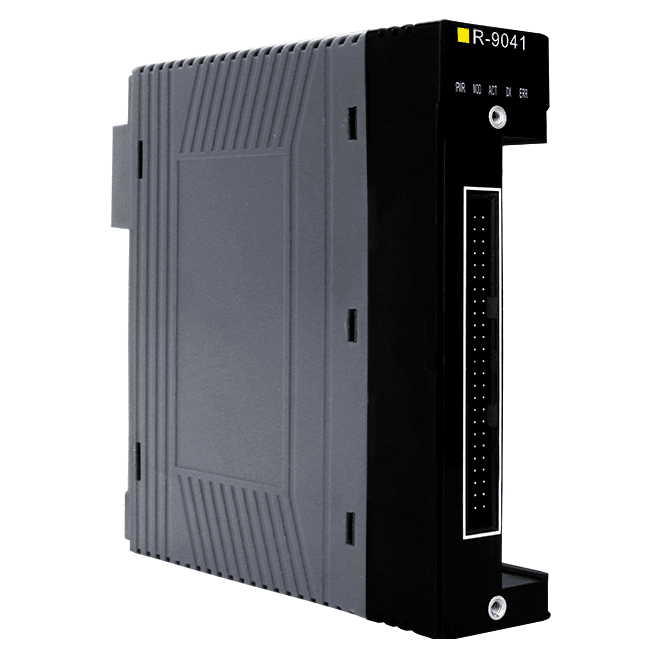

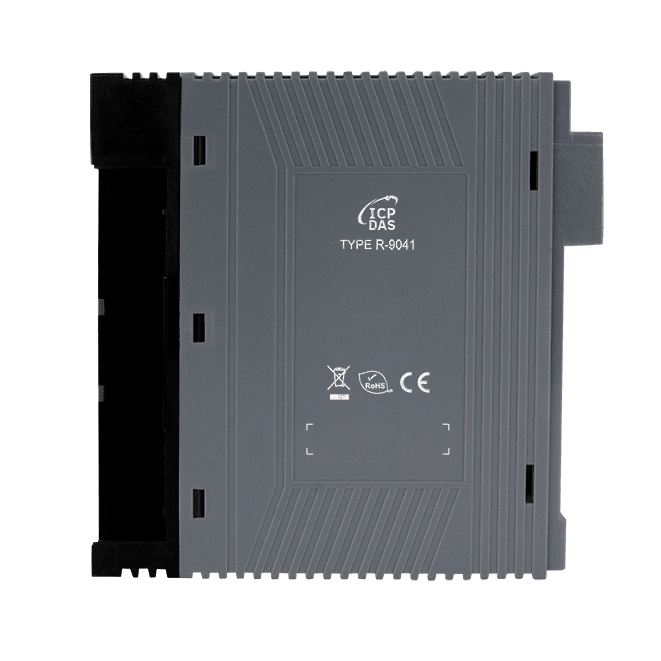

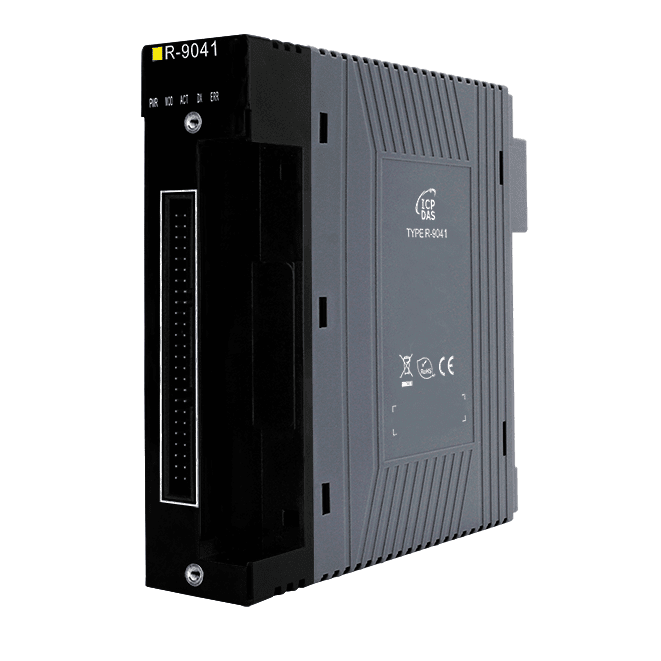

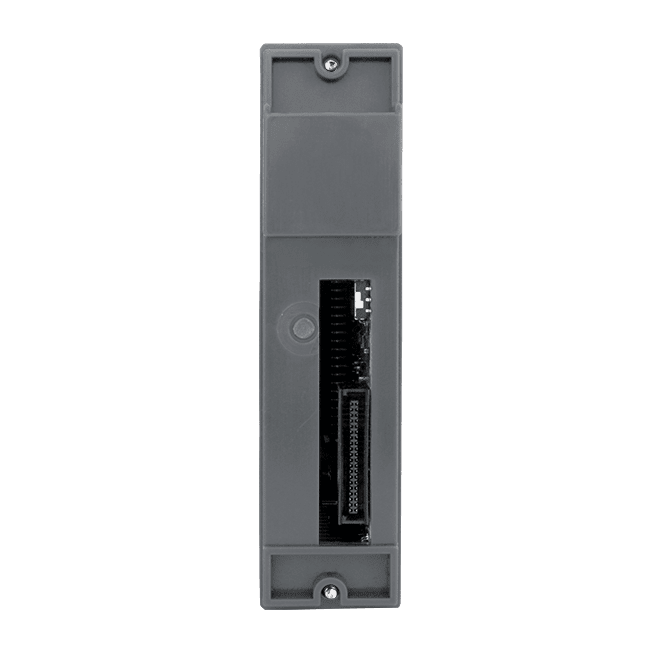

R-9041 32-ch Isolated Digital Output Module, Redundant RIO-98x0
32-channel NPN sink digital output module for the RIO-98x0 redundancy I/O system, with 3000 VDC isolation and 100 mA per channel at 24 VDC.
- 32 NPN sink digital output channels, open-collector, 100 mA per channel at 24 VDC
- Preset/Hold safety value and power-on initial value for defined output states
- Digital output diagnostic function with channel self-detection and fault alarms
- Termination board disconnection detection to support wiring stability
- Redundancy design with redundant switching time below 1 ms
- 3000 VDC isolation between power supply and backplane bus
6 891,45 kr per st.
| 1–9 st. | 6 891,45 kr | |
|---|---|---|
| 10–30 st. | 6 680,94 kr | −3 % |
| 31+ st. | 6 547,98 kr | −5 % |
Produktinformation "R-9041 32-ch Isolated Digital Output Module, Redundant RIO-98x0"
R-9041 is a 32-channel digital output module for the RIO-98x0 redundancy I/O system. Each channel is an NPN, current-sinking open-collector output rated at 100 mA at 24 VDC, so it can switch industrial loads directly from a common field supply.
The module is designed for predictable behaviour when things go wrong. Preset/Hold safety values and power-on initial values define the state of the outputs during start-up or abnormal conditions. Channel-level self-detection reports faults in the module's channel components, and the termination board is monitored for disconnection, which helps keep field wiring reliable.
Its redundancy support lets the system keep running if a single I/O module fails, with a redundant switching time below 1 ms. The 3000 VDC isolation between the power supply and the backplane bus helps reduce noise interference in industrial environments. Per-channel and module status LEDs make commissioning and fault finding straightforward.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital output module |
|---|---|
| Digital outputs: | 32 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +70 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |

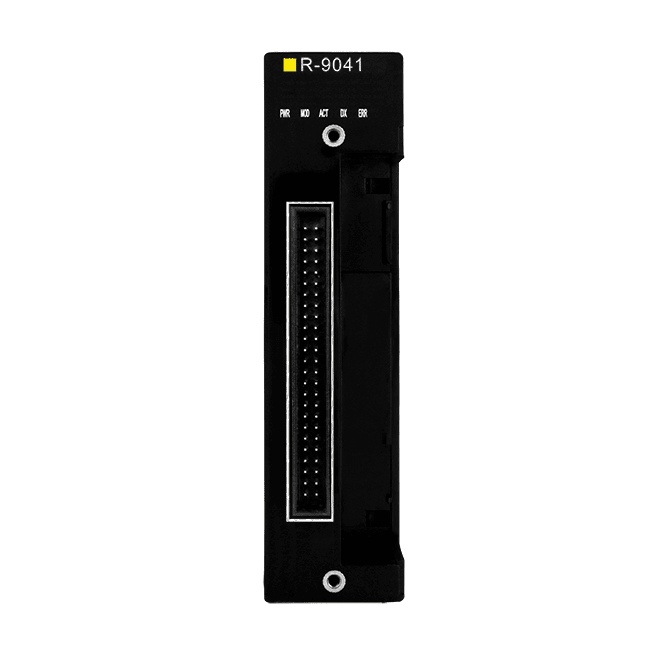

| Status | 1 PWR, 1 MOD, 1 ACT, 1 DX, 1 ERR I/O Indicator 32 as channel 0~31 status |
| Digital Output | |
| Channels | 32 (NPN) (P-COM) (Ch00~15 : GNDG1 ; Ch16~31 : GNDG2) |
| Type | Current Sinking, Open-Collector |
| Load Current | 100 mA/Channel @24 VDC |
| Power on Value | Yes |
| Safe Value | Yes (Preset/Hold) |
| I/O Expansion | |
| I/O Type | RDB-S05, RDB-D05 |
| Power | |
| Consumption | 1.7 W |
| Mechanical | |
| Dimensions (mm) | 33 x 129 x 130 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
