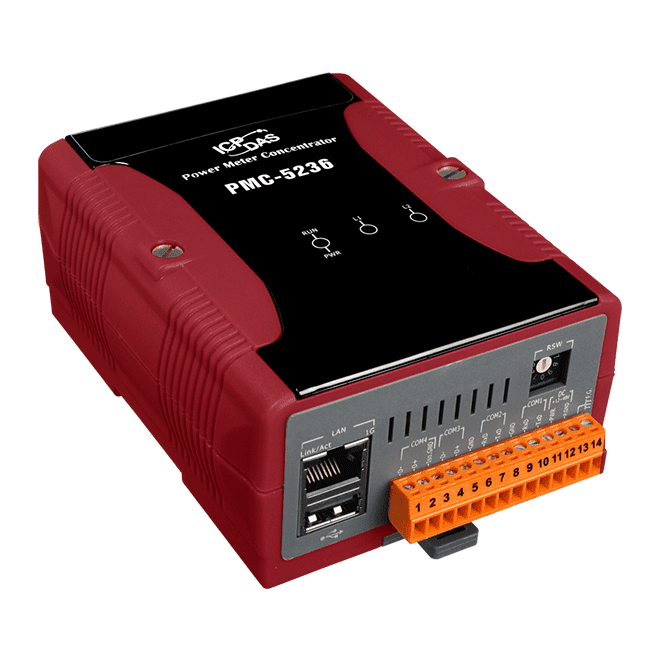

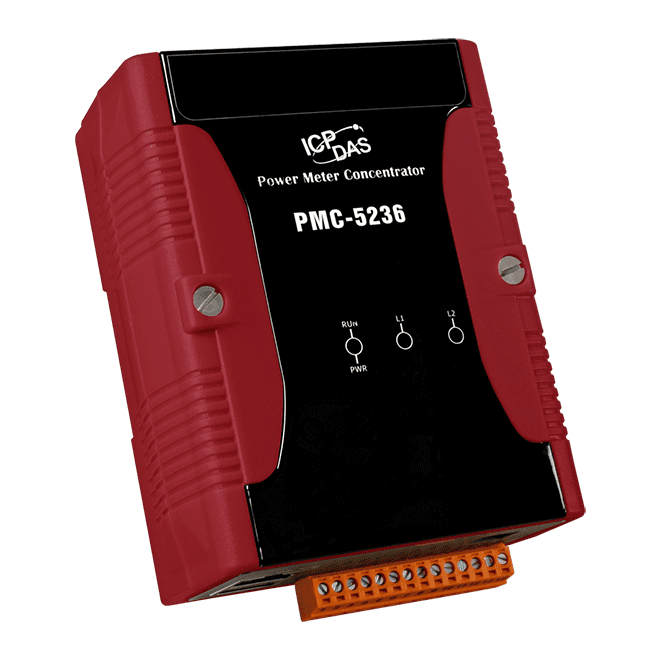

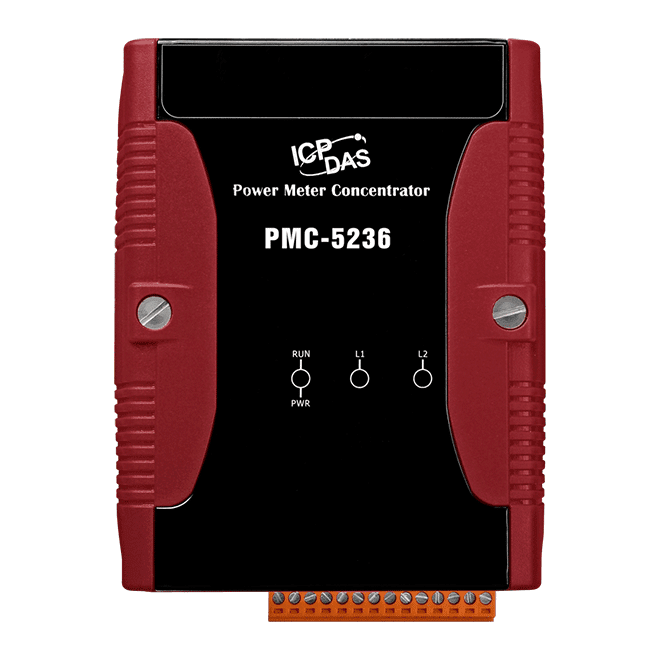

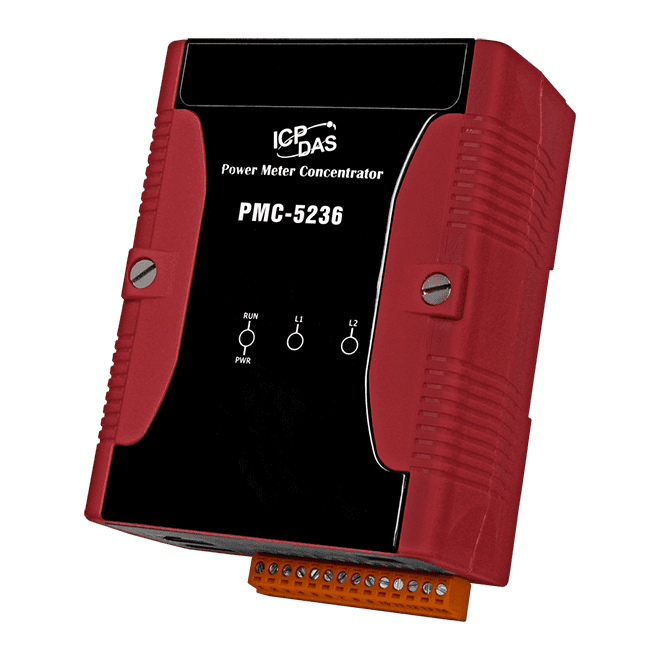

PMC-5236 IIoT Power Meter Concentrator, Web-Configured, Modbus TCP/RTU
Web-configured IIoT concentrator for ICP DAS PM-series power meters and Modbus I/O modules, with microSD data logging, IF-THEN-ELSE logic and Modbus TCP/RTU, SNMP and MQTT support.
- Browser-based configuration with no separate software tool and no programming needed for control logic
- Polls up to 24 ICP DAS Modbus power meters plus 8 Modbus I/O modules, with a maximum of 16 Modbus TCP modules via LAN
- COM3 and COM4 each connect up to 16 Modbus RTU modules; up to 4 PM-4324 series power meters supported
- Built-in IF-THEN-ELSE logic engine for power demand management, with unlimited rules, timers and schedules
- microSD data logging with automatic send-back and recovery after network disconnection
- Alarm notification via LINE, Telegram, Email and WeChat
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "PMC-5236 IIoT Power Meter Concentrator, Web-Configured, Modbus TCP/RTU"
PMC-5236 CR is a power meter concentrator for energy monitoring and management projects. It collects readings from ICP DAS Modbus power meters and Modbus I/O modules over RS-485 or Ethernet, then presents the data through a browser-based configuration interface, so control logic and reports can be set up without writing code.
Local intelligence covers power demand management and alarm handling. An IF-THEN-ELSE logic engine can switch I/O modules according to measured power status, supporting load shedding where required. Alarms can be sent via LINE, Telegram, Email or WeChat; the WeChat route needs an Enterprise WeChat account in China. Power data is logged to a microSD card and sent back automatically once a dropped network connection is restored.
For integration, the unit supports Modbus TCP/RTU, SNMP, FTP and MQTT, and can connect to Microsoft Azure, IBM Bluemix and ICP DAS IoTstar. The manufacturer lists this CR variant as For China Only, and the unit carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- Energy measurement, monitoring and management
- Power demand management and load shedding
- Power consumption reporting and statistics
- Integration with SCADA, MES and IoT platforms
| Product type: | Power Meter Concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | FTP, Modbus TCP/RTU, MQTT, SNMP |
| Ports: | 1 Ethernet, 3 serial |
| Isolation: | 2500 VDC (COM4) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| Protocol | • Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram, WeChat) • non-SSL & SSL Email sending function. • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1 GHz) |
| Storage Expansion | microSD socket with 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
