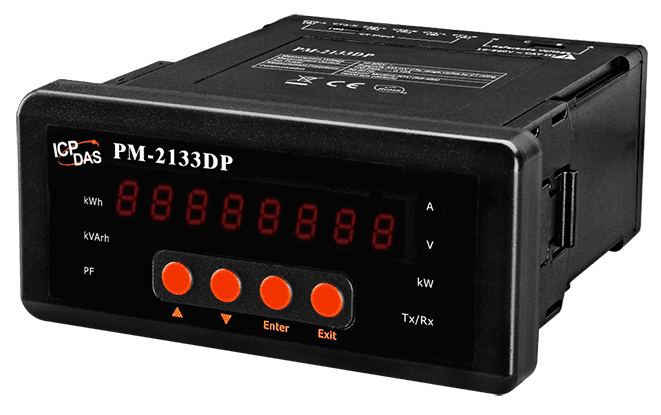

PM-2133DP 3-Phase Power Meter, Modbus RTU, LED Display
3-phase Modbus RTU power meter with an 8-digit LED display for voltage, current, power, energy and power factor. Supports 333 mV output CTs; Rogowski coils are not supported.
- Bi-directional energy measurement with true RMS power parameters
- Energy analysis for 3P4W, 3P3W, 1P3W and 1P2W wiring
- Supports CTs with 333 mV voltage output; CTs are not included by default
- Voltage measurement up to 500 V, with a 10 ~ 500 V input range
- Total harmonic distortion (THD) measurement

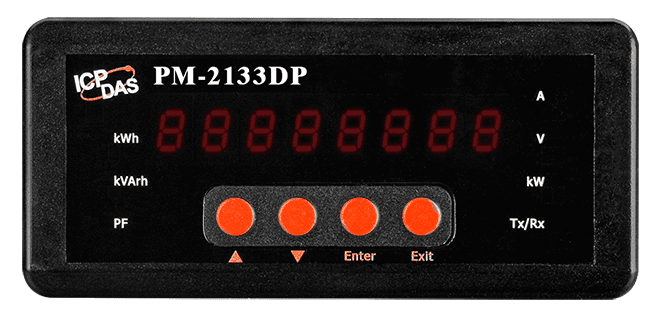

- 8-digit LED display for local readout
3 113,34 kr per st.
| 1–9 st. | 3 113,34 kr | |
|---|---|---|
| 10–30 st. | 3 024,70 kr | −3 % |
| 31+ st. | 2 958,23 kr | −5 % |
Produktinformation "PM-2133DP 3-Phase Power Meter, Modbus RTU, LED Display"

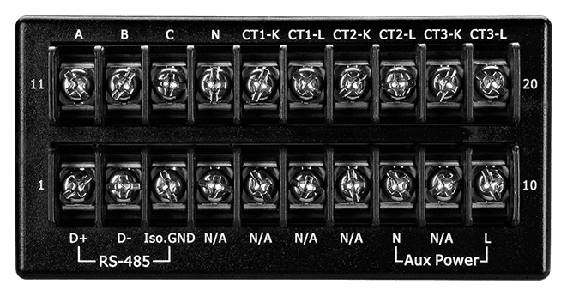

The PM-2133DP CR is a 3-phase power meter with an RS-485 Modbus RTU interface, suited to energy management and power monitoring on low-voltage primary-side and medium/high-voltage secondary-side circuits. It accepts an input voltage range of 10 to 500 VAC and provides true RMS readings of voltage, current, active, reactive and apparent power, energy, power factor and frequency.
An 8-digit LED display allows key parameters to be read locally at the panel, which is useful for engineers commissioning or checking a distribution board without a supervisory system. The meter is designed for panel mounting and supports several wiring arrangements, including 3P4W, 3P3W, 1P3W and 1P2W.
Current transformers are not included by default. Select CTs with a 333 mV voltage output to match the application; the CT ratio must be set correctly for accurate readings. Rogowski coils are not supported.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy management
| Product type: | Power meter |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +85 ~ +264 VAC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Plastic |
Specifikationer

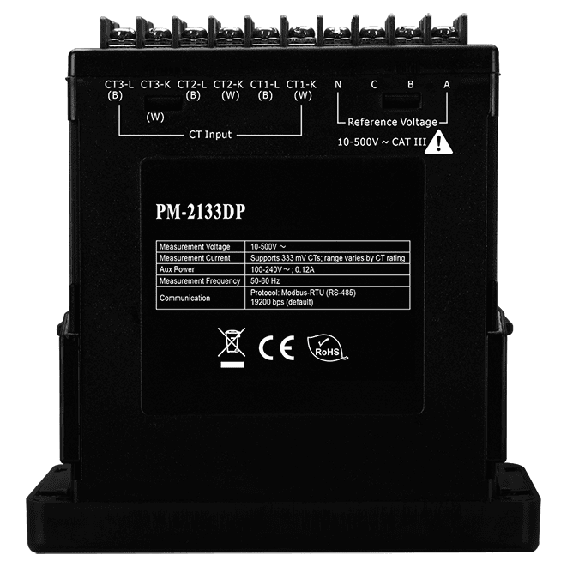

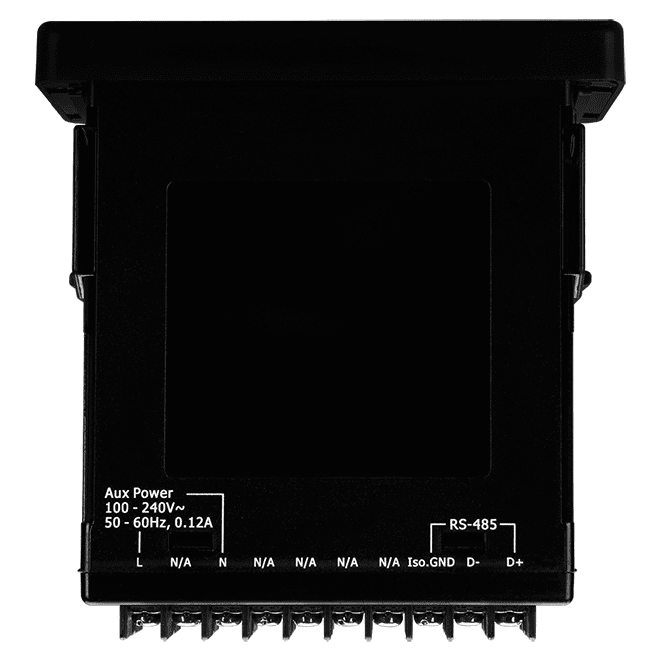

| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 3-phase: 1 1-phase: 3 @ 1P2W-1CT 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current | Supports 333 mV output CTs; actual current range depends on CT’s primary rating |
| Input Frequency | 50 Hz (Range 45 ~ 55 Hz)/60 Hz (Range 55 ~ 65 Hz) |
| W Accuracy | Accuracy is approximately 2–5% (PF = 1), depending on the CT used. The CT ratio must be set correctly |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz) |
| Data Update Rate | 1 Second |
| LED Display | Yes, 8-digit |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 9600,19200 (default), 38400, 115200 |
| Data Format | N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
| Protocol | Modbus RTU |
| Isolation | 3000 VDC |
| Power | |
| Input Range | +85 ~ +264 VAC (277 VAC available) |
| Consumption | 6 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 110 x 115 x 50 (W x L x H) |
| Installation | Panel Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
