PM-2133D-400P 3-Phase Power Meter, Modbus RTU, 400 A Clip-on CT
Modbus RTU three-phase power meter with 8-digit LED display and 400 A clip-on CTs for real-time energy monitoring on 3P4W, 3P3W, 1P3W and 1P2W systems.
- Three-phase True RMS measurement of voltage, current, active, reactive and apparent power, and energy
- Clip-on 400 A CTs with 36 mm inside diameter for quick installation
- Modbus RTU over one RS-485 port with baud rates up to 115200
- Active power accuracy better than 0.5% at PF=1
- Bi-directional energy measurement with total harmonic distortion (THD) reading
- 8-digit LED display for local readings
7 478,66 kr per st.
| 1–9 st. | 7 478,66 kr | |
|---|---|---|
| 10–30 st. | 7 257,07 kr | −3 % |
| 31+ st. | 7 101,96 kr | −5 % |
Produktinformation "PM-2133D-400P 3-Phase Power Meter, Modbus RTU, 400 A Clip-on CT"
PM-2133D-400P CR is a three-phase power meter for monitoring energy use in real time. It measures true RMS voltage and current, active, reactive and apparent power and energy, power factor and frequency, and reports the results over an RS-485 Modbus RTU link. Each reading is shown on an 8-digit LED display, so the meter can also be checked locally on the panel.

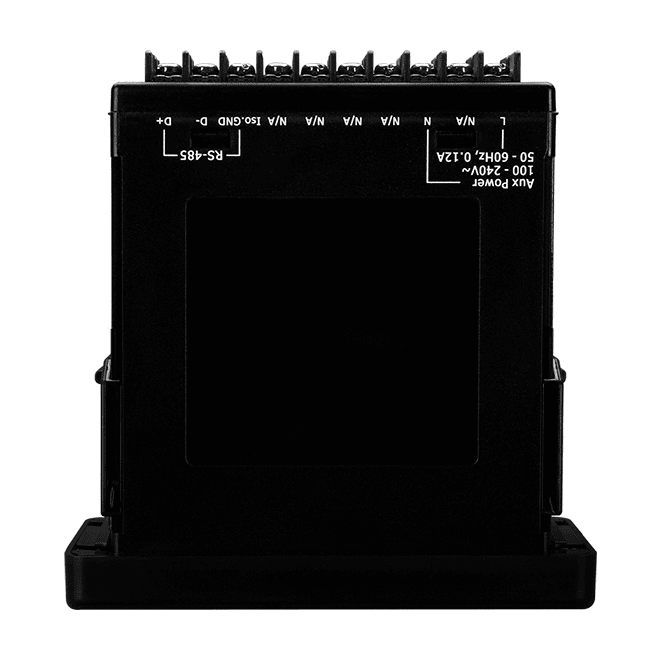

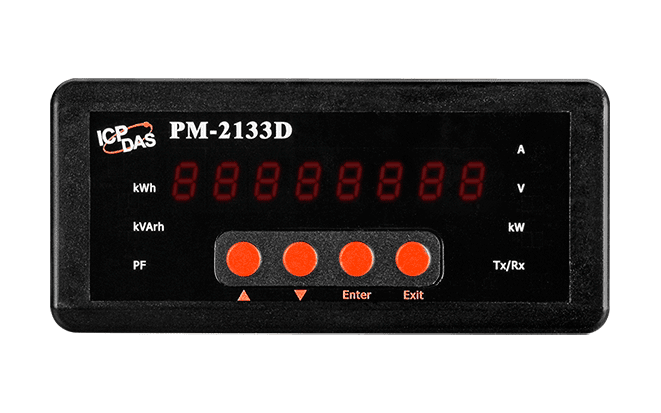

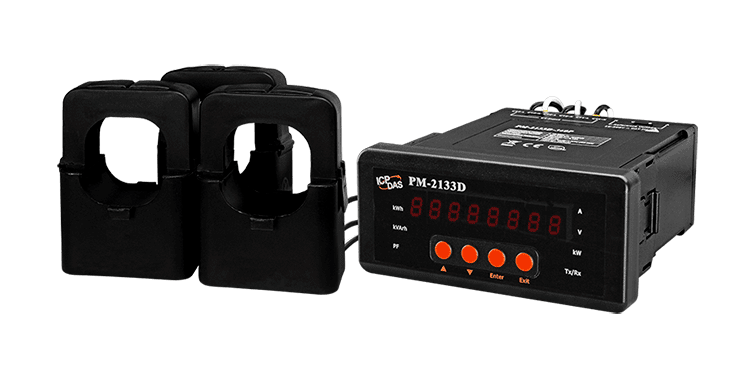

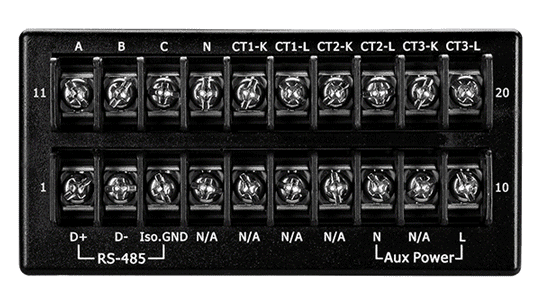

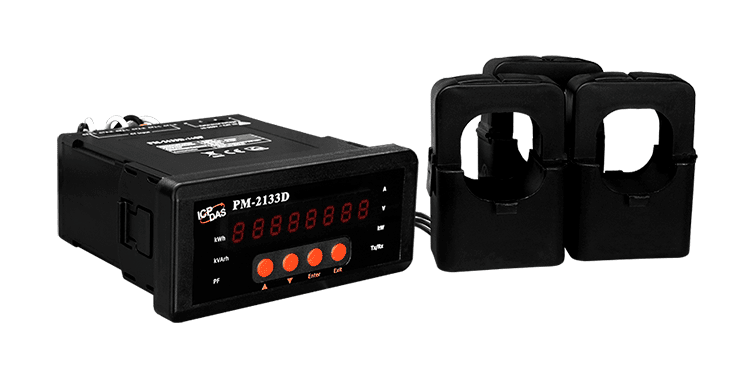

This variant includes three 400 A clip-on current transformers with a 36 mm inside diameter and 4 m wire leads. The clip-on design avoids wiring interruptions during installation. Input current spans 0.3 A to 400 A, and the meter supports bi-directional energy measurement and several wiring configurations, including 3P4W, 3P3W, 1P3W and 1P2W.
The meter accepts input voltages from 10 to 500 VAC and a control supply of +85 to +264 VAC (277 VAC available). Its plastic panel-mount housing measures 110 x 115 x 50 mm and is rated for -20 to +70 °C operation. Suitable applications include generator monitoring, switchgear distribution systems and energy management.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy management
| Product type: | Power meter |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +85 ~ +264 VAC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
Specifikationer
| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 3-phase: 1; 1-phase: 3 @ 1P2W-1CT, 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current | PM-2133D-005P: CTØ10 mm (0.05 A ~ 5 A) PM-2133D-100P: CTØ10 mm (0.05 A ~ 60 A) PM-2133D-160P: CTØ16 mm (0.1 A ~ 100 A) PM-2133D-240P: CTØ24 mm (0.15 A ~ 200 A) PM-2133D-360P: CTØ36 mm (0.3 A ~ 300 A) PM-2133D-400P: CTØ36 mm (0.3 A ~ 400 A) |
| Input Frequency | 50 Hz (Range 45 ~ 55 Hz)/60 Hz (Range 55 ~ 65 Hz) |
| W Accuracy | Better than 0.5% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz) |
| Data Update Rate | 1 Second |
| LED Display | Yes, 8-digit |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 9600, 19200 (default), 38400, 115200 |
| Data Format | N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
| Protocol | Modbus RTU |
| Isolation | 3000 VDC |
| Power | |
| Input Range | +85 ~ +264 VAC (277 VAC available) |
| Consumption | 6 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 110 x 115 x 50 (W x L x H) |
| Installation | Panel Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
