PISO-PS300U Universal PCI 3-Axis Stepper/Servo Motion Control Card
Universal PCI 3-axis pulse command motion control card for stepper and servo drives, with a 1 MHz maximum pulse rate, 8 digital inputs, 7 digital outputs and an embedded CPU.
- Universal PCI bus card for 3-axis pulse command servo or stepper motor control
- Embedded CPU executes motion commands, with a maximum pulse rate of 1 MHz
- 3-axis linear and circular interpolation with programmable T-curve speed profile
- Hardware emergency stop and mechanical switch inputs for home, forward and backward limit
- 8 digital inputs and 7 digital outputs with 2500 Vrms optical isolation
- Encoder input modes: A/B phase, CW/CCW and PULSE/DIR, 32-bit counter
6 536,91 kr per st.
| 1–9 st. | 6 536,91 kr | |
|---|---|---|
| 10–30 st. | 6 337,47 kr | −3 % |
| 31+ st. | 6 204,52 kr | −5 % |
Produktinformation "PISO-PS300U Universal PCI 3-Axis Stepper/Servo Motion Control Card"

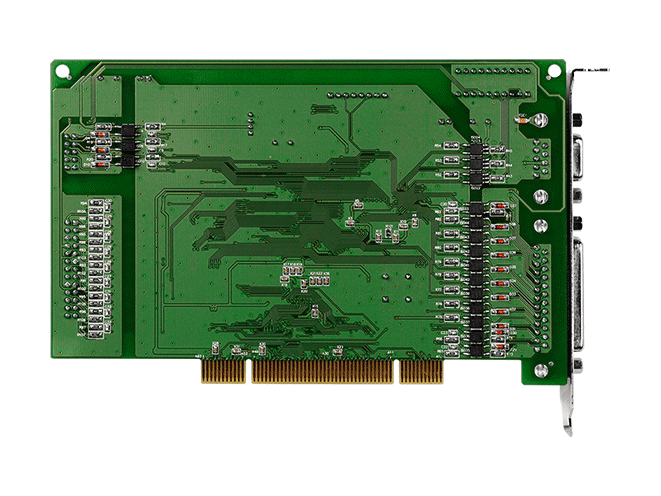

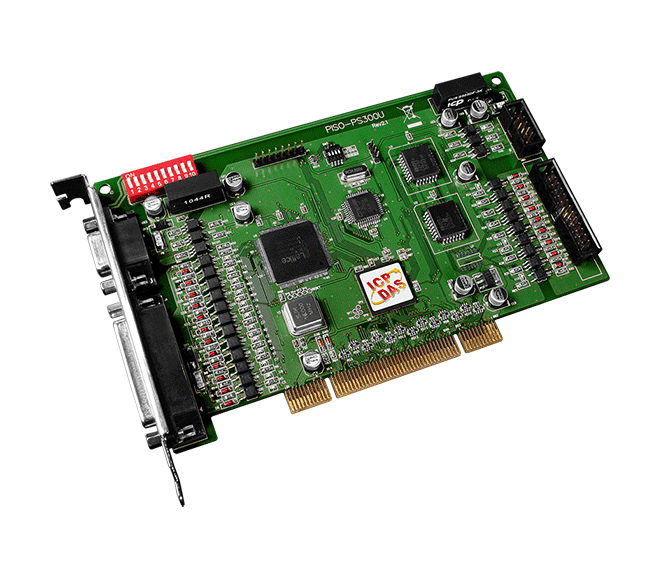

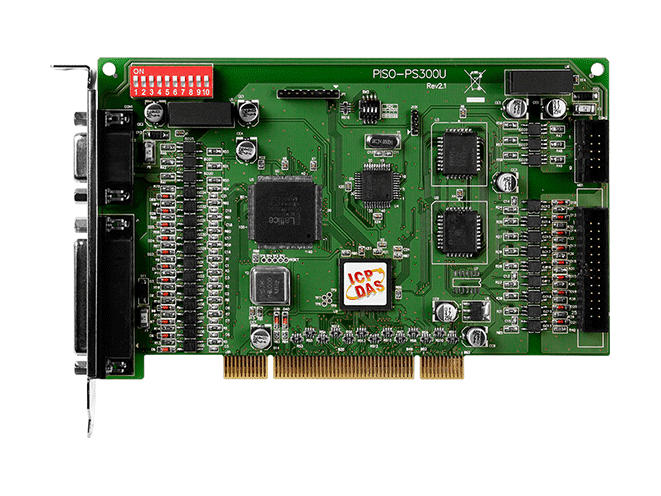

The PISO-PS300U CR is a universal PCI card for controlling three axes of stepper or servo motors through pulse command outputs. An embedded CPU carries out the motion commands sent from the host PC and returns position and status data, with buffering on both paths. This suits Windows-based machines where the PC handles the application and the card takes care of the pulse timing.
Motion features include linear and circular interpolation across axes, a programmable T-curve speed profile and a programmable DDA cycle. Encoder inputs support A/B phase, CW/CCW and PULSE/DIR modes, with a 32-bit counter. A hardware emergency stop and mechanical switch inputs for home and travel limits are included, alongside 8 digital inputs and 7 digital outputs with 2500 Vrms optical isolation.

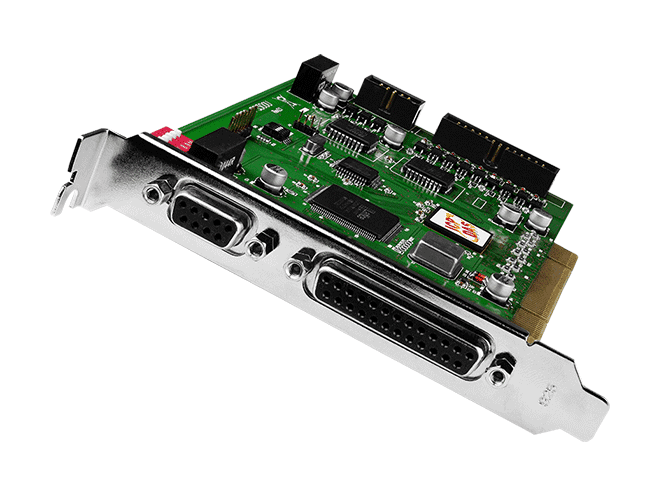

The CR ordering code includes a CA-9-2502 D-Sub cable (0.2 m, 9-pin male to 25-pin female) and three D-Sub connectors with plastic covers (CA-PC09F, CA-PC09M and CA-PC25M). Drivers and function libraries are provided for DOS, Windows XP/2000 and Windows 7 (32-bit only).
Applications
- Semiconductor manufacturing
- Component inspection
- Manufacturing quality control
- Food and beverage inspection
- Microscopy and medical imaging
- Biometrics applications
- X-Y-Z tables
- Fix-pitch stamping machinery
- Transfer machinery
- Spinner and load/unload systems
| Product type: | Motion control card |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 8 |
| Digital outputs: | 7 |
| Isolation: | 2500 Vrms |
| Power input: | +5 V |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 7/XP/2000 32-bit only |
| SDK | DOS 6.2 |
| Hardware | |
| Connector | 9-pin Male and 25-pin Female D-Sub |
| General | |
| No. of Axes | 3 |
| Operation Mode | Semi-closed Loop |
| Speed Profile | T-curve |
| Position Control Mode | Incremental mode |
| Command Type | Pulse Command |
| Axis I/O | |
| Servo Interface Output | SVON |
| Mechanical Switch Input | Home, forward, backward limit, EMG |
| Encoder Input | |
| Mode | A/B phase, CW/CCW, PULSE/DIR |
| Counting Rate | 1 MHz (Max.) |
| Counter Width | 32-bit |
| Pulse Output | |
| Mode | CW/CCW, PULSE/DIR |
| Counter Width | 32-bit |
| Rate | 1 MHz (Max.) |
| Interpolation | |
| Circular | Any 2 axes |
| Linear | Any 2 to 3 of 3 axes |
| Digital Input | |
| Channels | 8 |
| Isolation | 2500 Vrms optical isolation |
| Digital Output | |
| Channels | 7 |
| Isolation | 2500 Vrms optical isolation |
| PC Bus | |
| Type | Universal PCI bus |
| Power | |
| Consumption | +5 V @ 950 mA |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
