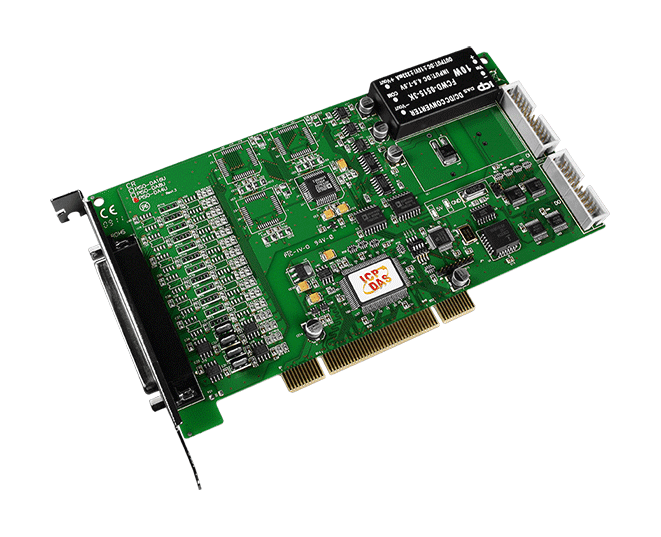

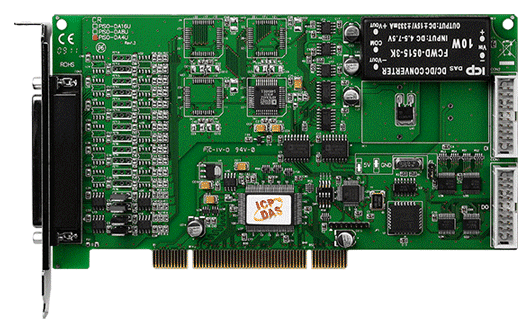

PISO-DA4U Universal PCI Isolated Analogue Output Board, 4-ch 14-bit
Four-channel, 14-bit isolated analogue output card for universal 3.3 V/5 V PCI slots, with 2500 V DC bus isolation, 16 TTL digital inputs and outputs and PIO-DA software compatibility.
- Four 14-bit analogue outputs, each channel configurable as ±10 V voltage or 0 to 20 mA current
- 2500 V DC bus-type isolation with a built-in DC/DC converter rated for 3000 V DC protection
- Software calibration with data saved in EEPROM, requiring no jumpers or trim-pots
- 16-channel 5 V/TTL digital input with pull-high and pull-low function, and 16-channel 5 V/TTL digital output
- Three 16-bit timer/counter channels with internal 4 MHz reference clock
- Two timer-triggered interrupt sources and double-buffered DA latch
4 154,81 kr per st.
| 1–9 st. | 4 154,81 kr | |
|---|---|---|
| 10–30 st. | 4 032,94 kr | −3 % |
| 31+ st. | 3 944,30 kr | −5 % |
Produktinformation "PISO-DA4U Universal PCI Isolated Analogue Output Board, 4-ch 14-bit"
PISO-DA4U CR is a universal PCI analogue output board with four 14-bit isolated channels. It is intended for engineers who need to drive voltage or current signals from a PC while keeping the host protected from damaging power surges on the field side.
Each channel can be set individually to voltage output (±10 V) or current output (0 to 20 mA). Calibration is performed in software, so no jumpers or trim-pots are needed, and the calibration data is stored in EEPROM. The board also includes 16 TTL digital inputs with pull-high and pull-low options, 16 TTL digital outputs, and three 16-bit timer/counter channels.
This variant ships with one CA-4002 D-Sub connector. The PISO-DA4U/S CR, which includes a CA-3710 D-Sub cable instead, is the alternative for the same four-channel board. The PISO-DA4U CR is designed to replace the PIO-DA series without changes to software or drivers, and it operates from 0 to +60 °C.
Applications
- High-speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from the digital I/O port
| Product type: | DAQ board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog outputs: | 4 |
| Isolation: | 2500 VDC |
| Power input: | +5 V, 2200 mA |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Card ID | Yes (4-bit) |
| Analog Output | |
| Channels | PISO-DA4U : 4 PISO-DA8U : 8 PISO-DA16U : 16 |
| Range | Voltage: ±10 V Current: 0 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Response Time | 333 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 0.71 V/μs |
| Isolation | 2500 V (Bus Type) |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | PISO-DA4U : 2200 mA @ +5 V PISO-DA8U : 2400 mA @ +5 V PISO-DA16U : 3000 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
