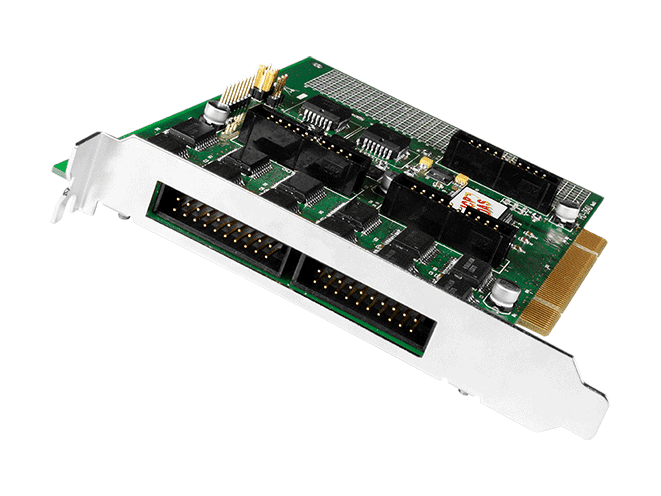

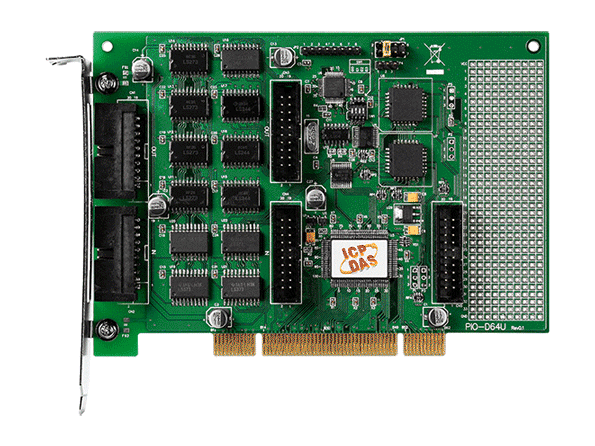

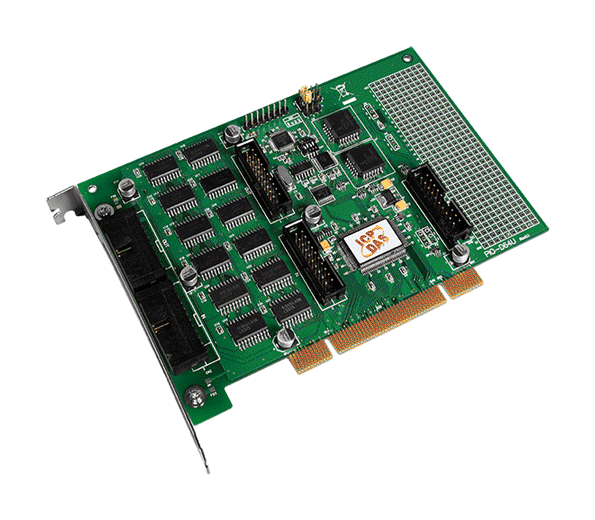

PIO-D64U Universal PCI Digital I/O Board, 64-ch with Timer/Counter
Universal PCI DAQ card with 32 digital inputs, 32 digital outputs and a 6-channel 16-bit timer/counter. A direct replacement for the PIO-D64 with no software or driver changes.
- Universal PCI interface supporting the 3.3 V/5 V bus
- 32 digital inputs and 32 digital outputs in two 16-bit ports each, 5 V/TTL levels
- Six-channel 16-bit timer/counter with three independent programmable 16-bit down counters
- Four selectable clock sources: 250 kHz, 500 kHz, 1 MHz and 2 MHz
- Interrupt triggering via event or timer trigger, with programmable interrupt handling
- Onboard 4-bit Card ID switch for identifying boards when two or more are installed
2 149,42 kr per st.
| 1–9 st. | 2 149,42 kr | |
|---|---|---|
| 10–30 st. | 2 082,95 kr | −3 % |
| 31+ st. | 2 049,71 kr | −5 % |
Produktinformation "PIO-D64U Universal PCI Digital I/O Board, 64-ch with Timer/Counter"
PIO-D64U is a universal PCI card for 3.3 V and 5 V bus slots that adds 64 TTL-level digital channels to an industrial PC. The 32 inputs and 32 outputs are each arranged as two 16-bit ports, so they can be addressed in straightforward word-wide operations.
The card is a drop-in replacement for the PIO-D64, so existing software and drivers can remain unchanged. A six-channel counter/timer can use 250 kHz, 500 kHz, 1 MHz or 2 MHz clock sources, with three channels available for frequency measurement, event counting or pulse generation. The remaining channels handle interrupt functions, and a 4-bit onboard Card ID switch allows individual boards to be identified in software when two or more are installed in the same computer.
Typical use cases include event counting, frequency measurement, pulse generation and interrupt-driven digital I/O on a PC-based data acquisition system.
Applications
- Event counting and frequency measurement
- Pulse generation
- Interrupt-driven digital I/O on PC-based data acquisition systems
- Multi-board PC installations requiring board identification
| Product type: | PCI DAQ board |
|---|---|
| Interface: | Universal PCI 3.3 V/5 V |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | 20-pin box header x 5 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 32 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 32 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V max. Logic 1: 2.4 V min. |
| Load Current | Sink: 24 mA@ 0.8 V Source: 15 mA @ 2.0 V |
| Response Speed | 1.0 MHz |
| Timer/Counter/Frequency | |
| Channels | 6 (Independent x 3/EVTIRQ x 1/TMRIRQ x 1/EXTIRQ x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit |
| Data Bus | 8-bit |
| Power | |
| Consumption | 200 mA @ +3.3 V 180 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 112 x 156 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
