PFN-2060 PROFINET I/O Module, 6-ch Isolated DI and 6-ch Relay Output
PROFINET IO device remote I/O module with six isolated digital inputs and six Form A power relay outputs, configured through a generic GSDML file in any PROFINET engineering tool.
- PROFINET IO Device with Conformance Class B and RT Class 1
- Cyclic time down to 1 ms (minimum)
- Six isolated digital inputs supporting dry and wet contacts, sink/source
- Digital input ON level +10 ~ +50 VDC, OFF level +4 VDC max.
- Six Form A power relay outputs with 10 ms total switching time
- Generic GSDML file (version 2.25) for any PROFINET engineering tool
3 645,16 kr per st.
| 1–9 st. | 3 645,16 kr | |
|---|---|---|
| 10–30 st. | 3 534,36 kr | −3 % |
| 31+ st. | 3 456,80 kr | −5 % |
Produktinformation "PFN-2060 PROFINET I/O Module, 6-ch Isolated DI and 6-ch Relay Output"

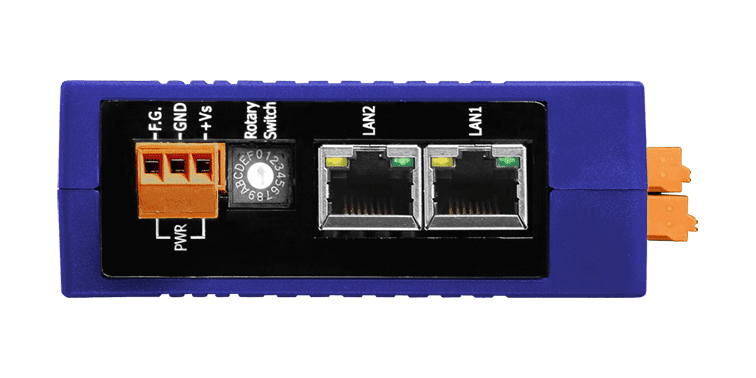

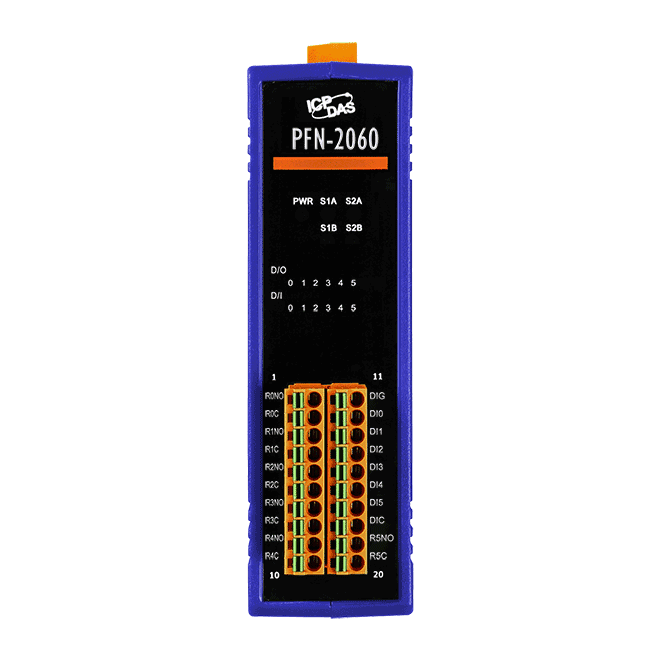

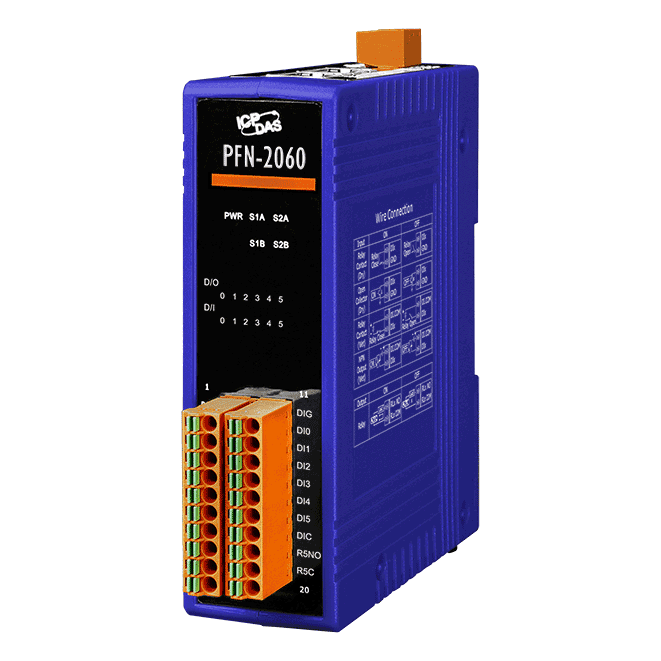

The PFN-2060 CR is a PROFINET IO device for distributed discrete control. It combines six isolated digital inputs, which accept both dry and wet contacts, with six Form A power relay outputs, so one compact DIN-rail module can both sense field signals and switch loads.
Integration is straightforward because the module is configured through its generic GSDML file, version 2.25, which can be loaded into any PROFINET engineering tool. Conformance Class B and RT Class 1 support cyclic times down to 1 ms, and the module can be set to hold power-on or safe output values.
- Conformance Class B and RT Class 1 for deterministic PROFINET communication
- Relay ratings of 125 VAC at 0.6 A, 30 VDC at 2 A and 110 VDC at 0.6 A
- Operating temperature range of -25 ~ +75 ℃ with 10 ~ 90% RH non-condensing humidity limit
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O module |
|---|---|
| Interface: | Ethernet |
| Protocol: | PROFINET IO Device |
| Digital inputs: | 6 |
| Relay outputs: | 6 |
| Isolation: | Isolated DI |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
| Status | PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Digital Input | |
| Channels | 6 |
| Type | Dry + Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC to +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC max. |
| Digital Output | |
| Channels | 6 Channels, Contact Rating : [email protected], 30VDC@2A, [email protected] Operating Time : 3ms Release Time : 2ms Total Switching Time : 10ms Surge Strength : 500VAC(50/60 Hz) Insulation resistance : 1000 MW min at 500 VDC |
| Type | Power Relay, Form A x 6 |
| Ethernet | |
| Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
| Consumption | 4.5 W |
| Mechanical | |
| Dimensions (mm) | 33 x 107 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
