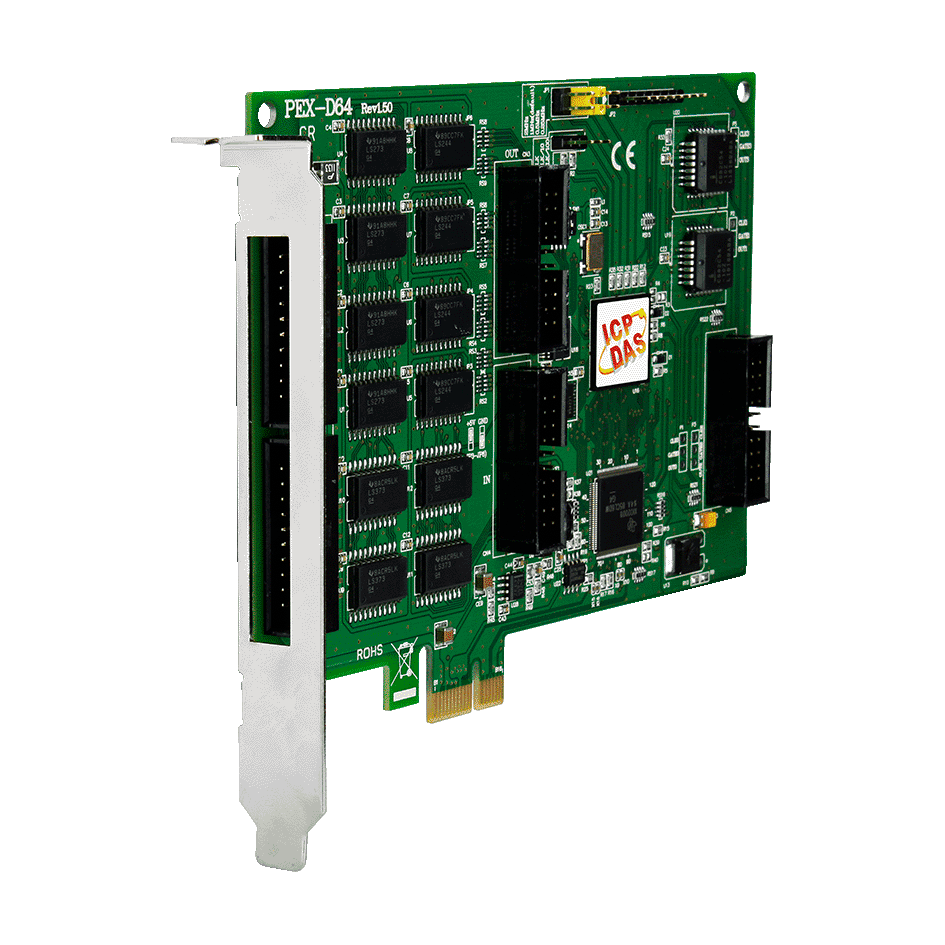

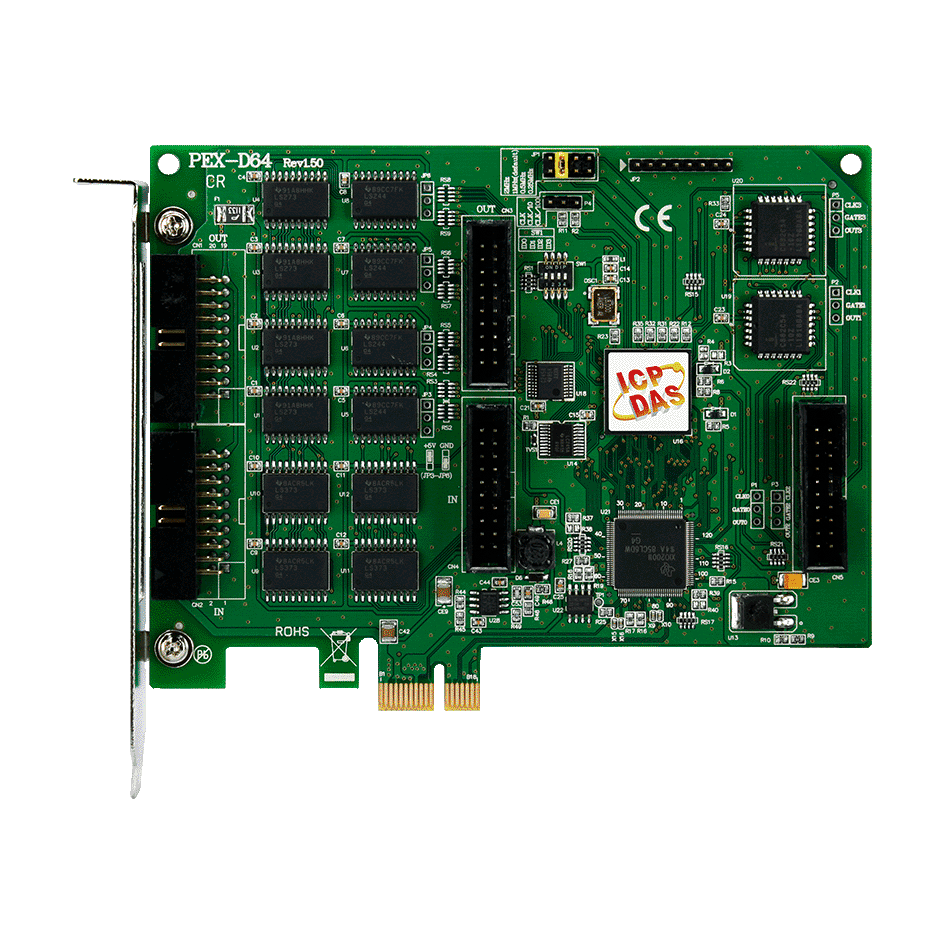

PEX-D64 PCI Express Digital I/O Board, 64-ch with Timer/Counter
PCI Express x1 digital I/O board with 64 channels of 5 V/TTL I/O and six timer/counter channels, for PC-based measurement and control.
- 64 channels of digital I/O: 32 digital inputs and 32 digital outputs at 5 V/TTL levels
- Six 16-bit timer/counter channels with an internal 4 MHz reference clock
- Three independent programmable 16-bit down counters for general-purpose timing tasks
- Interrupt triggering by event or timer, using three dedicated channels
- 4-bit Card ID switch for identifying boards in multi-card systems
- PCI Express x1 bus interface
2 226,98 kr per st.
| 1–9 st. | 2 226,98 kr | |
|---|---|---|
| 10–30 st. | 2 160,50 kr | −3 % |
| 31+ st. | 2 116,18 kr | −5 % |
Produktinformation "PEX-D64 PCI Express Digital I/O Board, 64-ch with Timer/Counter"
The PEX-D64 is a PCI Express x1 card that adds 32 digital inputs and 32 digital outputs to a PC, all operating at 5 V/TTL levels. The I/O is organised as two 16-bit input ports and two 16-bit output ports, so it suits engineers who need a large number of simple logic signals on a single slot.
Six 16-bit timer/counter channels, clocked from an internal 4 MHz reference, add timing capability. Three channels are general purpose for frequency measurement, event counting and pulse generation, while the other three are dedicated to interrupt functions. A 4-bit Card ID switch lets software identify each board when two or more PEX-D64 cards are installed in one computer.
Driver support covers Linux, DOS and Windows, with a DLL and ActiveX control. Sample programs are provided for Turbo C++, Borland C++, Microsoft Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW, which helps shorten application development.
Applications
- Frequency measurement
- Event counting
- Pulse generation
- Interrupt-driven digital I/O in PC-based systems
- Multi-card digital I/O installations
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | 20-pin box header x 5 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 32 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 500 kHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 32 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V max. Logic 1: 2.4 V min. |
| Load Current | Sink: 24 mA@ 0.8 V Source: 15 mA @ 2.0 V |
| Response Speed | 500 kHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 6 (Independent x 3/EVTIRQ x 1/TMRIRQ x 1/EXTIRQ x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 8-bit |
| Power | |
| Consumption | 200 mA @ +3.3 V 180 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 112 x 156 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
