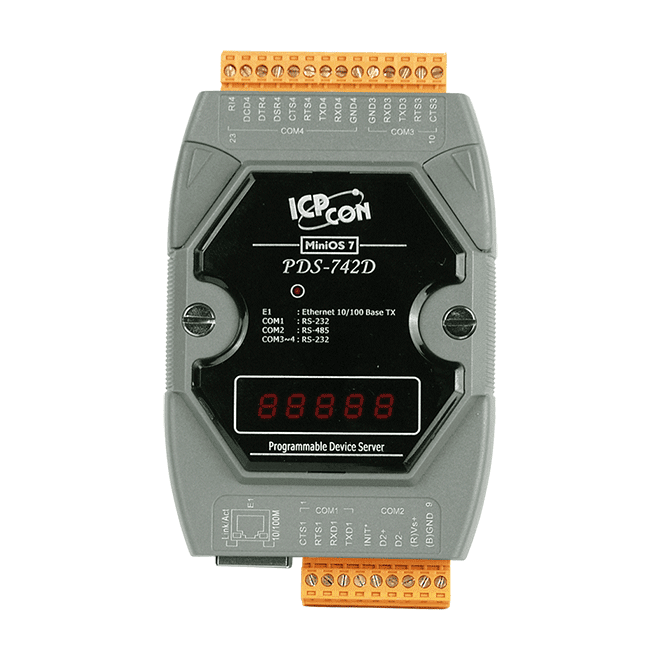

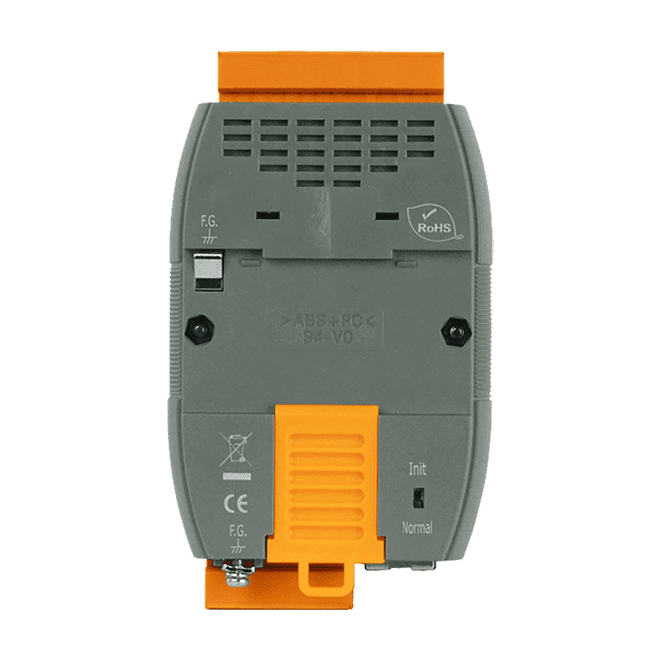

PDS-742D Serial-to-Ethernet Device Server, 3x RS-232 and 1x RS-485
The PDS-742D connects three RS-232 devices and one RS-485 device to an Ethernet network, with virtual COM port support and a Modbus TCP to RTU/ASCII gateway function. CA-0910 cable included.
- Three RS-232 ports and one RS-485 port, plus a 10/100 Base-TX Ethernet connection
- Modbus TCP to RTU/ASCII gateway function for SCADA and HMI integration
- VxComm driver and utility creates virtual COM ports on 32/64-bit Windows 7 SP1, 10, 2012 and 2016
- Built-in MiniOS7 with programmable Xserver structure for custom Ethernet applications
- Watchdog timer and +/-4 kV ESD protection circuit on the serial ports
- Self-tuner ASIC controller on the RS-485 port
3 268,45 kr per st.
| 1–9 st. | 3 268,45 kr | |
|---|---|---|
| 10–30 st. | 3 168,74 kr | −3 % |
| 31+ st. | 3 102,26 kr | −5 % |
Produktinformation "PDS-742D Serial-to-Ethernet Device Server, 3x RS-232 and 1x RS-485"
The PDS-742D is a programmable serial-to-Ethernet device server for bringing legacy RS-232 and RS-485 equipment onto an Ethernet network. Its built-in ports can be presented to a Windows PC as standard virtual COM ports, so existing serial software can continue to work with networked devices.
Beyond simple serial tunnelling, the unit runs the MiniOS7 operating system and can be programmed using the Xserver structure to build custom Ethernet applications. It also acts as a Modbus TCP to RTU/ASCII gateway, allowing Modbus TCP SCADA or HMI systems to poll Modbus RTU or ASCII slave devices. The LED display shows power status and a five-digit seven-segment readout.
Designed for industrial environments, the device offers a watchdog timer and ESD protection on its serial ports, with removable terminal blocks for wiring. It mounts on DIN-rail or wall and is rated for operation from -25 to +75 °C. A CA-0910 cable is included with this ordering code.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 4 serial, 1 Ethernet |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 5 x digit 7 Segment |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 1 x 9-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM4 |
| Stop Bit | 1, 2: for COM1 ~ COM4 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.7 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
