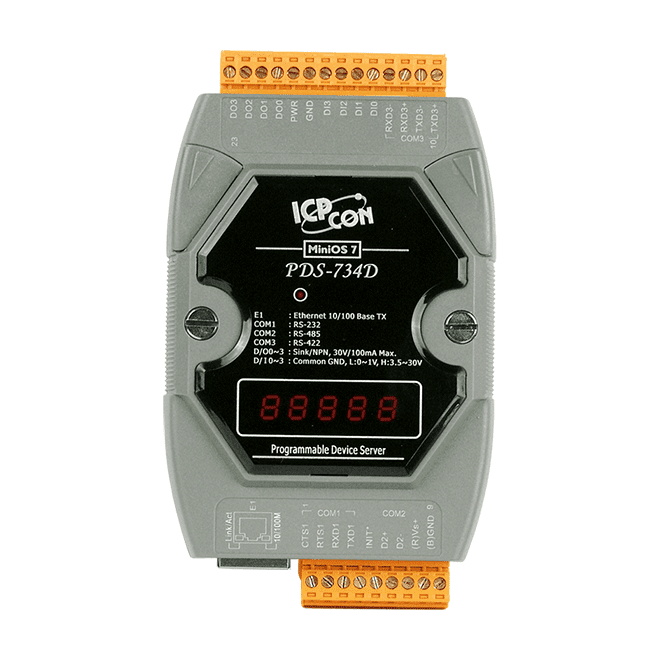

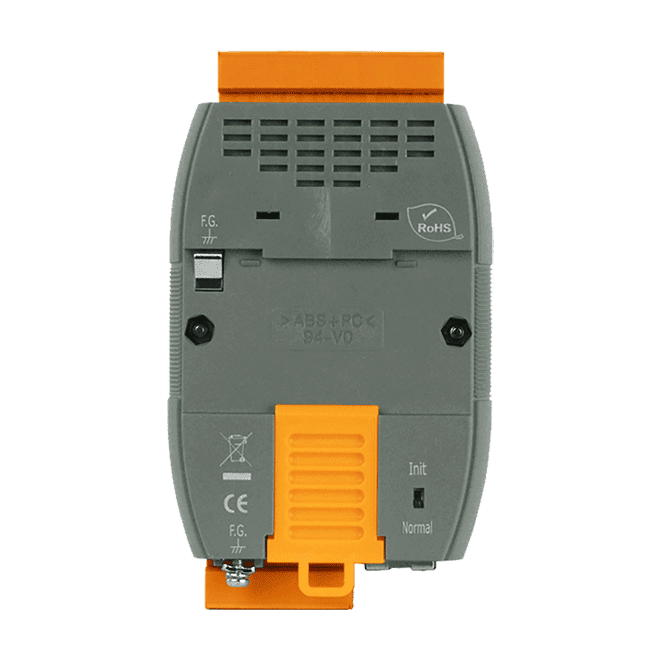

PDS-734D Programmable Serial-to-Ethernet Device Server with 4x DI/4x DO
Programmable device server linking one RS-232, one RS-485 and one RS-422/485 port plus 4 DI and 4 DO to Ethernet, with Modbus TCP to RTU/ASCII gateway support.
- Three serial ports: 1x RS-232, 1x RS-485 and 1x RS-422/485, with up to 115200 bps
- Modbus TCP to RTU/ASCII gateway function for SCADA and HMI systems
- VxComm driver maps the serial ports to virtual COM ports on 32/64-bit Windows 7 SP1/10/2012/2016
- 4 digital inputs (dry contact, source type) with latched and counter functions
- 4 open-collector NPN digital outputs, 30 VDC and 100 mA maximum
- Serial port +/-4 kV ESD protection and watchdog timer for harsh environments
3 213,06 kr per st.
| 1–9 st. | 3 213,06 kr | |
|---|---|---|
| 10–30 st. | 3 113,34 kr | −3 % |
| 31+ st. | 3 046,86 kr | −5 % |
Produktinformation "PDS-734D Programmable Serial-to-Ethernet Device Server with 4x DI/4x DO"
The PDS-734D CR brings three serial ports, four digital inputs and four digital outputs onto an Ethernet network in a compact DIN-rail or wall-mounted unit. It suits engineers who need to connect legacy RS-232 or RS-485 field devices to a PC, SCADA or HMI system without rewriting the device firmware.
The built-in MiniOS7 runtime and Xserver programming structure allow custom Ethernet logic to be added to the device. The unit can also act as a Modbus TCP to RTU/ASCII gateway, so Modbus TCP masters can reach serial slaves directly. Each digital input supports latched and counter functions, and the 4 DO channels are open-collector NPN sink outputs rated at 30 VDC and 100 mA.
The CA-0910 cable is included with the ordering code. The removable terminal block and plastic casing with a built-in watchdog timer make installation and maintenance straightforward in industrial cabinets.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-422/485, RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 3 serial, 1 Ethernet |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 5 x digit 7 Segment |
| Digital Input | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485 1 x RS-485/RS-422 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 10 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 |
| Stop Bit | 1, 2: for COM1 ~ COM3 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.7 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
