PDS-220FCS Serial-to-Fiber Device Server, Modbus Gateway, 1x SC Single-mode
Programmable serial-to-fibre device server with RS-232 and RS-422/485 ports, a 100Base-FX single-mode SC link rated to 30 km, and a Modbus TCP to RTU/ASCII gateway.
- Single-mode SC fibre Ethernet port (100 Base-FX) for serial device connectivity over long distances
- One 5-wire RS-232 port and one RS-485/RS-422 port with baud rates up to 115200 bps
- Modbus TCP to RTU/ASCII gateway for connecting Modbus TCP clients to serial slave devices
- Virtual COM support extends PC COM ports over the network, with Virtual Utility for 32/64-bit Windows 7 SP1/10/2012/2016
- Programmable device server built on the MiniOS7 operating system
- Watchdog Timer and +/-4 kV ESD protection on the serial port for harsh environments
3 190,90 kr per st.
| 1–9 st. | 3 190,90 kr | |
|---|---|---|
| 10–30 st. | 3 091,18 kr | −3 % |
| 31+ st. | 3 035,78 kr | −5 % |
Produktinformation "PDS-220FCS Serial-to-Fiber Device Server, Modbus Gateway, 1x SC Single-mode"

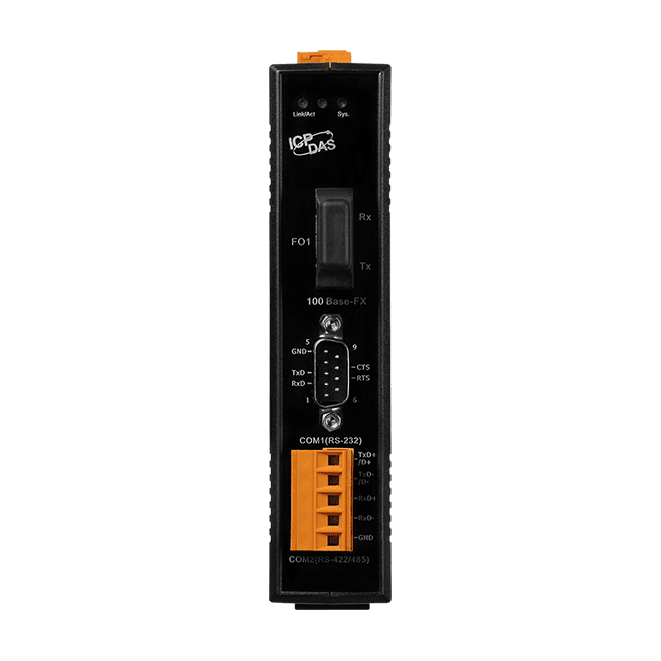

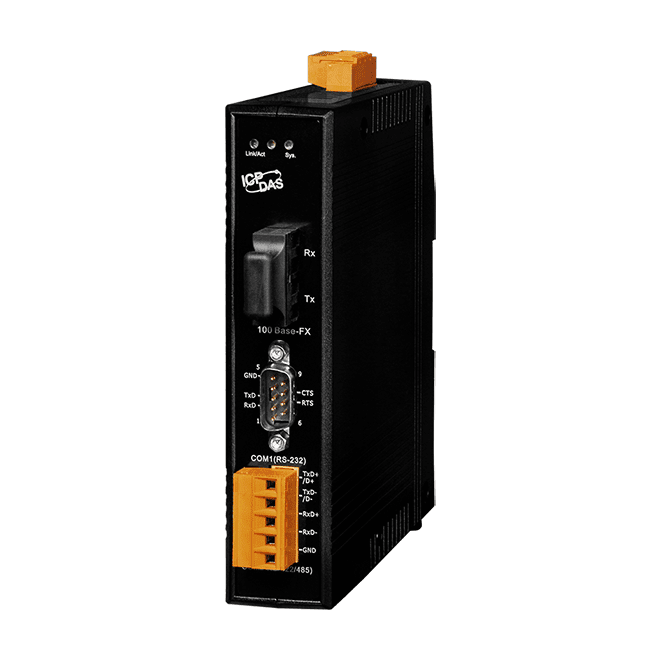

PDS-220FCS CR is a programmable device server that carries RS-232 and RS-422/485 serial traffic over a single-mode SC fibre link. It suits engineers who need to move serial devices across long runs or into electrically noisy and high-voltage areas, where copper cabling would be unreliable or unsafe.
The unit combines a 1-port 100Base-FX Ethernet interface with one 5-wire RS-232 port and one RS-485/RS-422 port. The Virtual COM driver extends the COM ports of a PC over the network, and the built-in Modbus TCP to RTU/ASCII gateway lets Modbus TCP clients reach serial slave devices. The MiniOS7 firmware runs the programmable application on the unit itself.

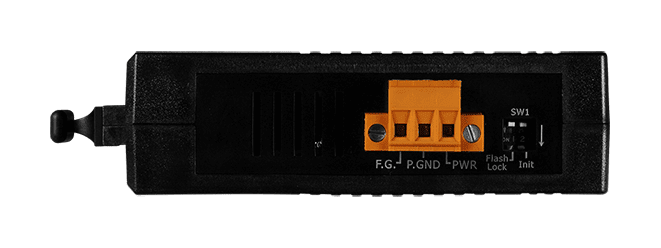

Protection features include a Watchdog Timer, +/-4 kV ESD protection on the serial port and a Self-Tuner ASIC controller on the RS-485 port. The unit draws 0.14 A at 24 VDC, accepts +12 to 48 VDC and mounts on DIN-rail. It is rated for -25 to +75 °C operation.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Device server |
|---|---|
| Interface: | 100Base-FX, RS-232, RS-422/485 |
| Protocol: | Modbus TCP |
| Ports: | 2 serial, 1 fibre |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Fire retardant plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycle |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 2 x Ethernet |
| Ethernet | |
| Ports | 100 Base-FX (SC connector) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485/RS-422 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.14 A @ 24 VDC |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Fire Retardant Plastic |
| Dimensions (mm) | 31 mm x 157 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
