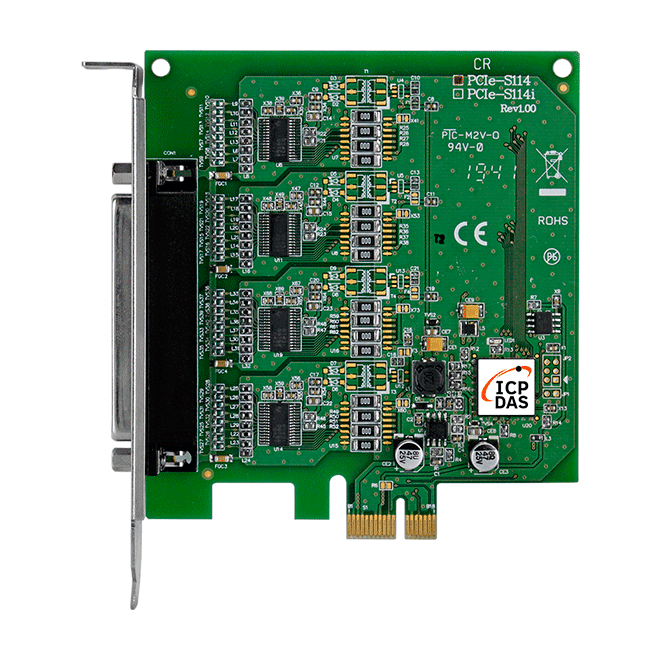

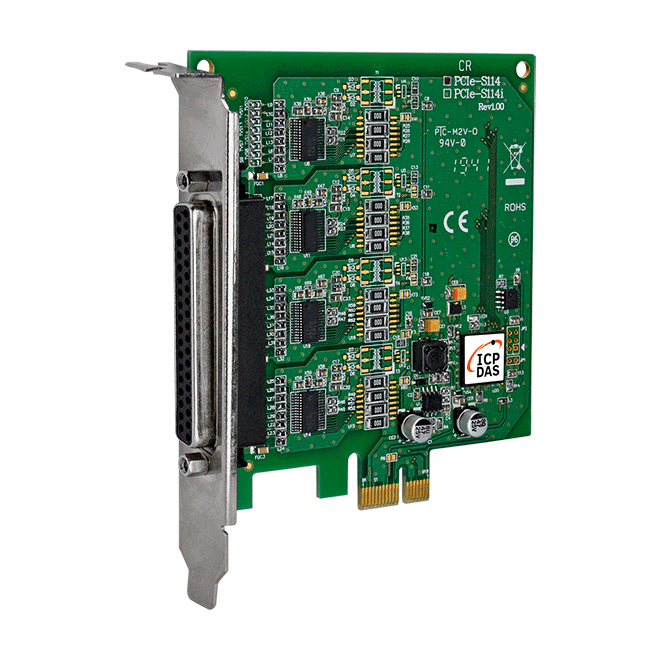

PCIe-S114 PCI Express Serial Board, 4-Port RS-232, Up to 921600 bps
PCIe-S114 CR adds four RS-232 serial ports to a PCI Express x1 slot, with a 256-byte FIFO per port and rates up to 921600 bps for connecting serial devices to a PC.
- Four RS-232 ports on a single PCI Express x1 card
- 256-byte hardware FIFO for each port
- Full-duplex transmission at up to 921600 bps
- Baud rate 300 ~ 921600 bps, 5 to 8 data bits and 1, 1.5 or 2 stop bits
- Parity options: None, Even, Odd, Mark and Space
- Short card design measuring 110 x 110 x 22 mm, drawing 120 mA @ 5 V
1 551,13 kr per st.
| 1–9 st. | 1 551,13 kr | |
|---|---|---|
| 10–30 st. | 1 506,81 kr | −3 % |
| 31+ st. | 1 473,57 kr | −5 % |
Produktinformation "PCIe-S114 PCI Express Serial Board, 4-Port RS-232, Up to 921600 bps"
The PCIe-S114 CR is a short-card PCI Express x1 board that gives a computer four RS-232 serial ports, each with its own 256-byte hardware FIFO. Full-duplex operation at up to 921600 bps makes it a practical way to add several serial peripherals to a single machine.
It suits instruments, intelligent sensors, bar code readers, serial printers and other equipment fitted with an RS-232 port. Drivers are supplied for 32/64-bit Windows XP, 2003, 2008, 7, 8 and 10, and for Linux kernels 2.6.31 to 5.16.0. This ordering code uses the standard data-line design, without the photocoupler isolation and ESD protection found on the PCIe-S114i.
The card uses a DB-37 female connector, and one CA-4002 connector is included with each unit.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | Multi-port serial board |
|---|---|
| Interface: | RS-232 |
| Ports: | 4 |
| Operating temperature: | 0 ~ +60°C |
Specifikationer
| Hardware | |
|---|---|
| Connector | DB-37 (Female) |
| COM Ports | |
| Ports | 4 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 300 ~ 921600 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 110 x 110 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
