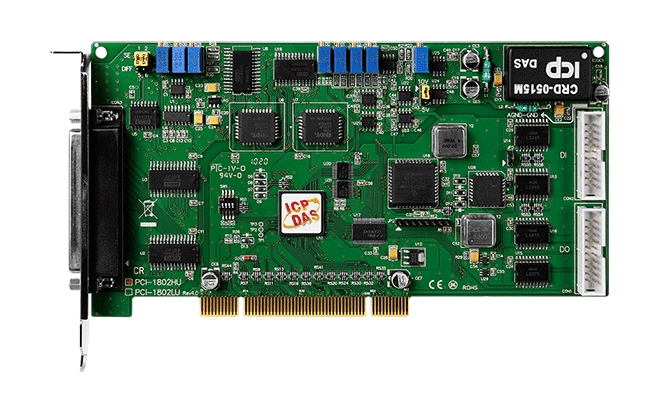

PCI-1802HU/S Universal PCI Multifunction Board, 44 kS/s 32-ch 12-bit AI
Universal PCI DAQ board with 32 single-ended or 16 differential 12-bit analogue inputs at 44 kS/s, 2 analogue outputs and 16 digital inputs and outputs. Includes CA-3710 D-Sub cable.
- Universal PCI (3.3 V/5 V) interface with 32-bit, 33 MHz bus
- 12-bit AI at up to 44 kS/s with 32 single-ended or 16 differential inputs
- 8192-sample hardware FIFO and MagicScan multi-channel scanning
- Software, internal pacer and external 5 V/TTL triggering
- 2-channel 12-bit analogue output, ±5 V and ±10 V bipolar ranges
- 16-channel 5 V/TTL digital input and 16-channel digital output
9 118,43 kr per st.
| 1–9 st. | 9 118,43 kr | |
|---|---|---|
| 10–30 st. | 8 841,44 kr | −3 % |
| 31+ st. | 8 664,17 kr | −5 % |
Produktinformation "PCI-1802HU/S Universal PCI Multifunction Board, 44 kS/s 32-ch 12-bit AI"
The PCI-1802HU/S CR is a high-speed multifunction data acquisition board for Universal PCI slots, combining analogue input, analogue output and TTL digital I/O on a single card. This version samples at up to 44 kS/s, making it the lower-rate option in the PCI-1802 family for engineers who need multichannel acquisition without the higher 330 kS/s rate. It is supplied with a CA-3710 D-Sub cable.
The card offers 32 single-ended or 16 differential analogue inputs, selectable by jumper, with a programmable PGA for low and high gain ranges. An 8192-sample hardware FIFO and a MagicScan controller support multi-channel scanning. Triggering can be by software, internal pacer, or external 5 V/TTL signal. A 2-channel 12-bit analogue output and 16 channels each of 5 V/TTL digital input and output complete the I/O set.
An onboard Card ID switch lets software identify individual boards when two or more cards are installed in the same computer. Pull-high and pull-low resistors on the DI channels define a known state when inputs are disconnected or floating. The card is designed as a drop-in replacement for the PCI-1802H without software or driver changes, and drivers and sample programs are provided for Linux, DOS and Windows environments.
Applications
- High speed data acquisition system
- Process monitor and control
- Vibration analysis
| Product type: | Multifunction DAQ board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 32 SE/16 diff |
| Analog outputs: | 2 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 Male 20-bit ribbon x 2 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | Gain: 0.5, 1, 5, 10, 50, 100, 500, 1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | PCI-1802LU：330 kS/s. Max. PCI-1802HU：44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±2 ppm/°C of FSR |
| FIFO Size | 8192 samples |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling |
| Analog Output | |
| Channels | 2 |
| Range | Bipolar:±5 V, ±10 V |
| Resolution | 12-bit |
| Accuracy | 0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Response Time | 1.0 MHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 8.33 V/μs |
| Operation Mode | Software |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 300 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 200 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
