MQ-7252M MQTT Ethernet I/O Module, 2-port Switch, 8-ch DI and 8-ch DO
MQ-7252M Ethernet I/O module supporting MQTT 3.1 and Modbus TCP, with 8 wet-contact digital inputs, 8 source-type digital outputs and a 2-port switch for daisy-chain wiring.
- Supports MQTT 3.1 and Modbus TCP for IIoT and automation connectivity
- Built-in web server and web HMI for configuration, monitoring and digital output control
- 8 wet-contact digital inputs (sink/source) and 8 source-type digital outputs
- 2-port 10/100 Base-TX switch with LAN bypass for daisy-chain wiring
- Dual watchdog with programmable module and communication monitoring
- Output channels rated up to 650 mA each, with programmable power-on and safe values
2 758,80 kr per st.
| 1–9 st. | 2 758,80 kr | |
|---|---|---|
| 10–30 st. | 2 670,16 kr | −3 % |
| 31+ st. | 2 614,76 kr | −5 % |
Produktinformation "MQ-7252M MQTT Ethernet I/O Module, 2-port Switch, 8-ch DI and 8-ch DO"

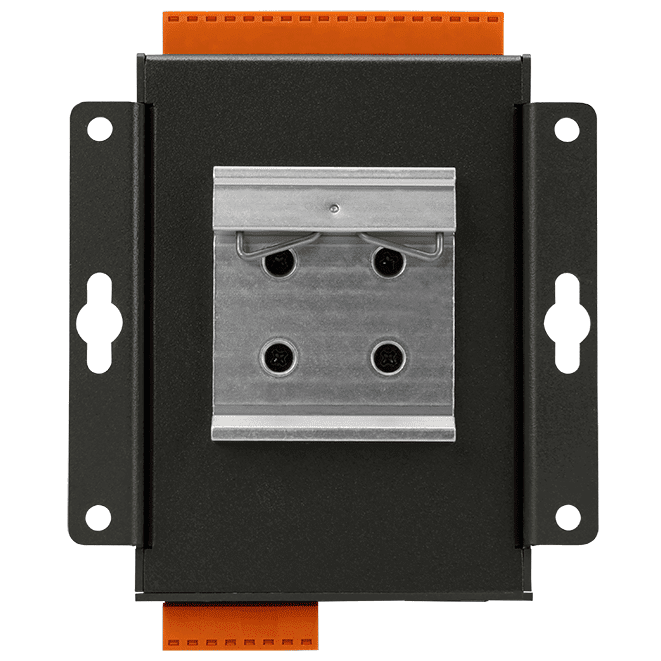

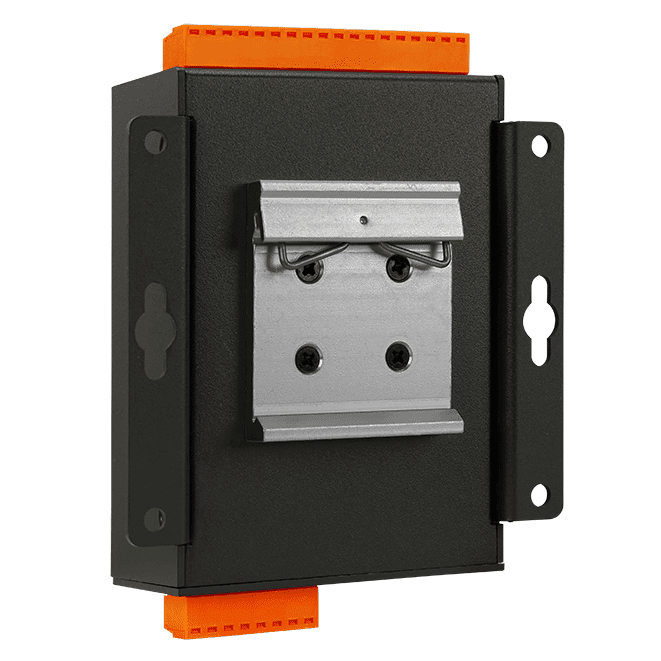

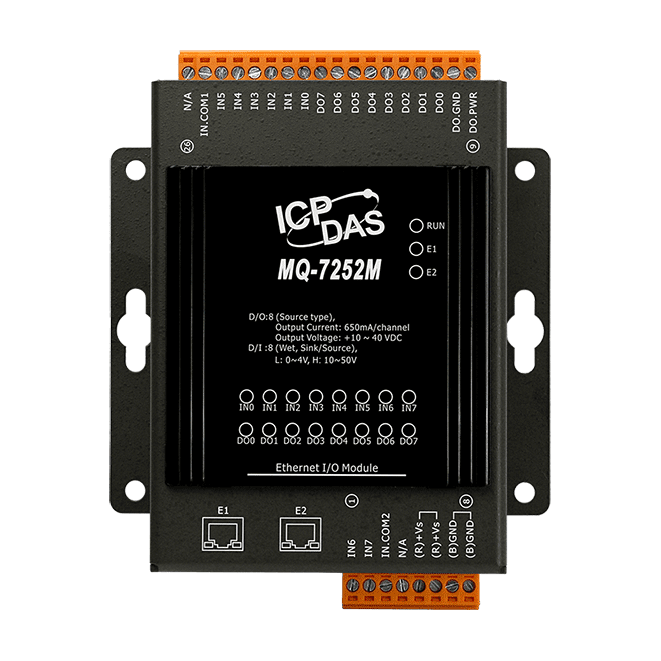

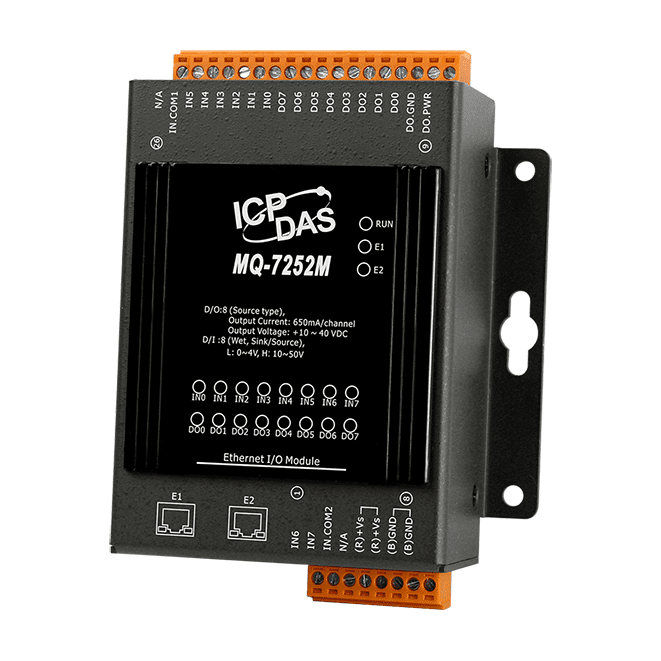

The MQ-7252M is an Ethernet I/O module that links digital sensors and actuators to IIoT platforms and supervisory systems over MQTT 3.1 or Modbus TCP. It provides 8 digital inputs and 8 digital outputs in a single DIN-rail or wall-mounted unit, so it can handle common discrete monitoring and switching tasks without a separate controller.
Configuration, network status monitoring and I/O status checks are handled through a built-in web server and web HMI, which can be opened in any standard browser on a computer or mobile device. The same interface can be used to switch individual digital output channels manually. Each output channel can drive up to 650 mA, and the power-on and safe values are programmable.

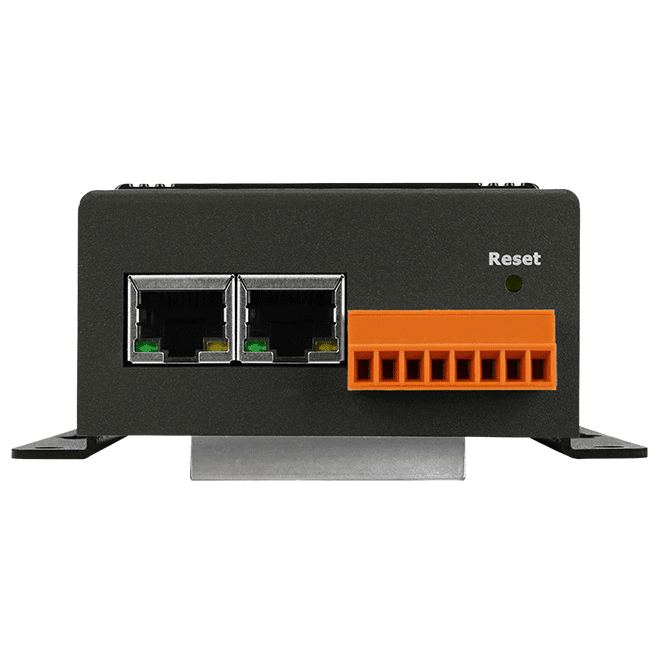

The integrated 2-port 10/100 Base-TX switch, with LAN bypass, allows devices to be daisy-chained along a network run. Optical isolation of 2500 VDC transient overvoltage protection is provided, although there is no channel-to-channel isolation. The module is suited to applications where hazardous voltages may be present.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis
- Testing equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT 3.1 |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 2 |
| Isolation: | 1500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +50 VDC |
| OFF Voltage Level | +4 VDC max. |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 ~ +40 VDC |
| Load Current | 650 mA/channel at 25°C |
| Overvoltage Protection | +47 VDC |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Switch Ports |
| LAN bypass | Yes |
| Protocol | MQTT 3.1 Modbus TCP |
| Isolation | 1500 VDC |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.4 W max. |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
