MN-3253 Motionnet 32-ch Isolated Digital Input Module, RJ-45
Distributed Motionnet I/O expansion module with 32 isolated digital inputs, NPN or PNP selectable per port and RJ-45 Motionnet connectors. Up to 64 modules can share one transfer line.
- 32 isolated digital inputs for remote input expansion on Motionnet
- Each port selectable as NPN or PNP, 12 to 24 V
- Up to 64 modules per Motionnet transfer line, 2048 input channels in total
- Transfer speed selectable at 2.5, 5, 10 or 20 Mbps by DIP switch
- 15.1 μs cyclic time per device at 20 Mbps
- 3000 Vrms input isolation with separated power, communication and I/O
2 249,14 kr per st.
| 1–9 st. | 2 249,14 kr | |
|---|---|---|
| 10–30 st. | 2 182,66 kr | −3 % |
| 31+ st. | 2 138,34 kr | −5 % |
Produktinformation "MN-3253 Motionnet 32-ch Isolated Digital Input Module, RJ-45"

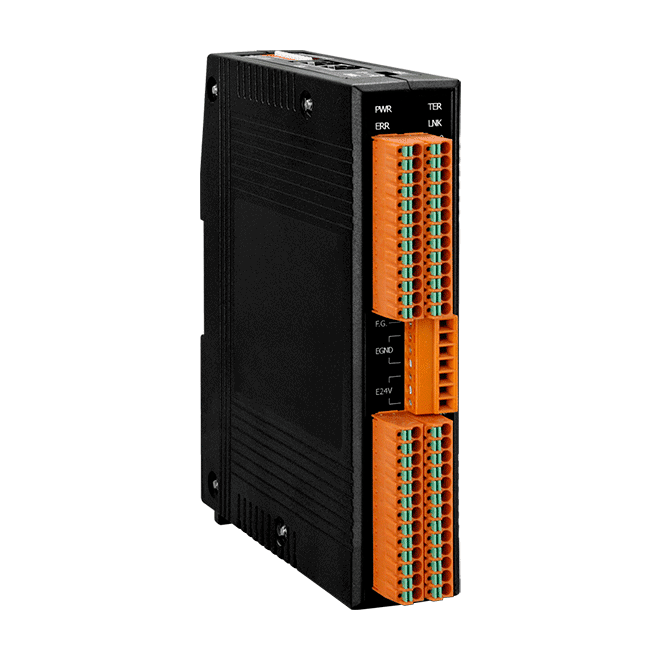

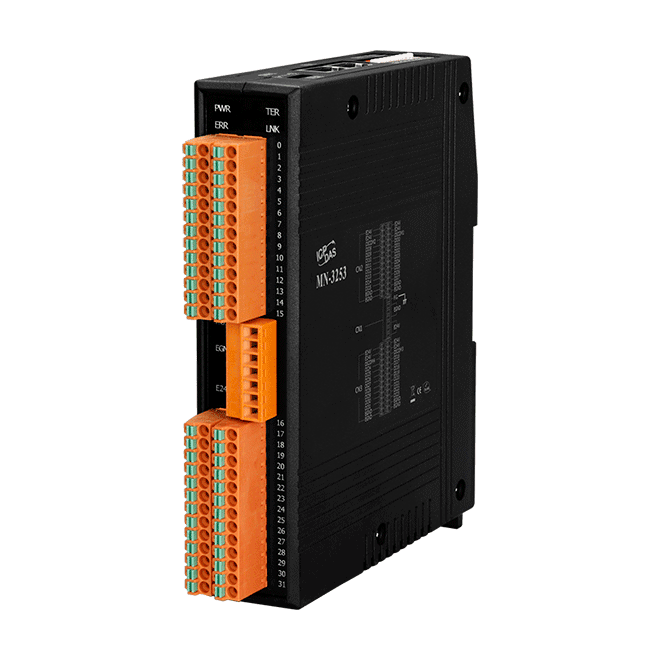

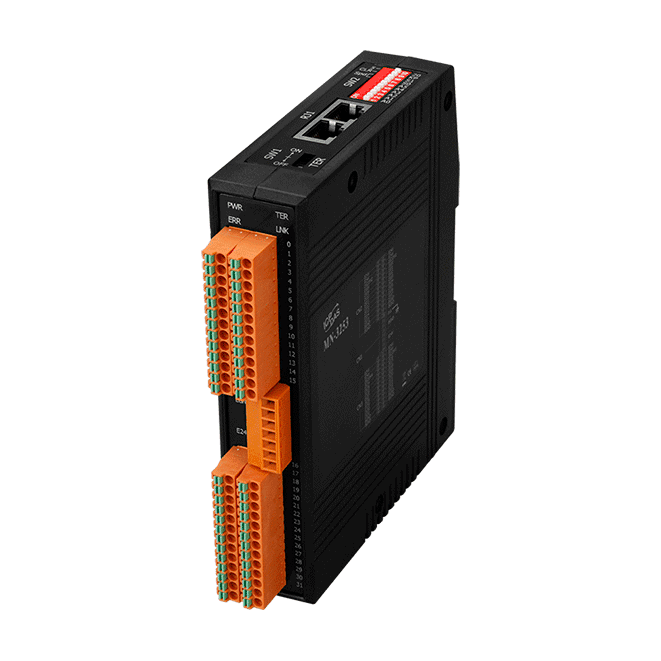

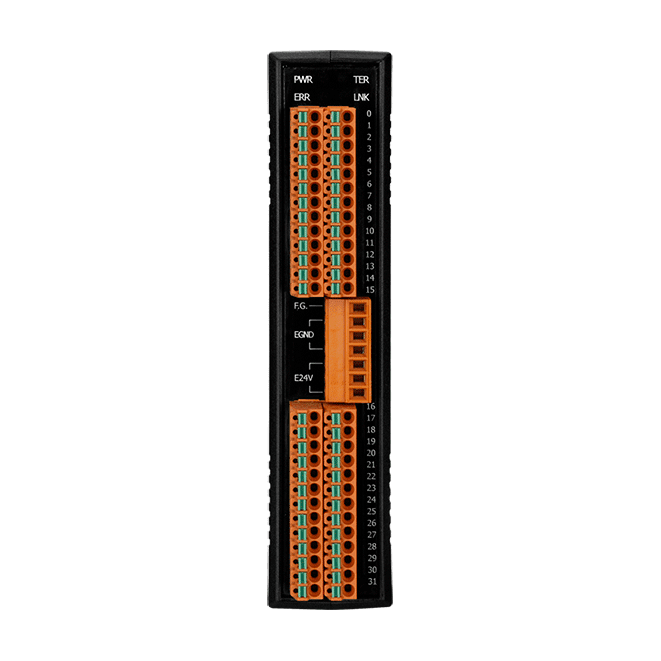

The MN-3253 CR adds 32 isolated digital input channels to a Motionnet network, letting you extend remote input capacity without running separate cabling for each signal. Each input port can be configured as NPN or PNP for 12 to 24 V sensors, which simplifies matching the module to the field devices you already use.
Cyclic time is 15.1 μs per device at 20 Mbps, and a full line of 64 modules covers 2048 input points within 0.97 ms. Transfer speed is chosen from 2.5, 5, 10 or 20 Mbps using a DIP switch. Input status is updated automatically through the Motionnet system at a constant interval, and you can set interrupts on selected inputs so the controller does not have to poll them repeatedly.

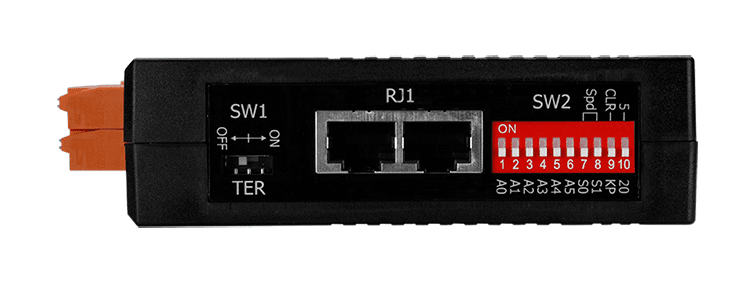

The module provides 3000 Vrms input isolation and separates power, communication and I/O for improved protection. Status LEDs show communication state, I/O state and internal 3.3 V power, and a termination resistor switch is provided. Wiring uses 13-pin pluggable terminal blocks, and the plastic housing mounts on a DIN rail. Rated operating range is 0 to +60 °C.
Applications
- Machine automation
- Distributed digital input expansion for Motionnet systems
| Product type: | Digital input module |
|---|---|
| Interface: | Motionnet, RJ-45 |
| Protocol: | Motionnet |
| Digital inputs: | 32 |
| Ports: | 2 |
| Isolation: | 3000 Vrms |
| Power input: | 24 VDC |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Hardware | |
|---|---|
| Connector | 13-pin pluggable terminal block x 4 |
| LED Indicators | |
| Status | Communication state (Link, Error) Internal 3.3 V Power Termination Resistor Switch Input/Output state |
| Digital Input | |
| Channels | 32 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source (NPN/PNP) |
| ON Voltage Level | +10 ~ 30 VDC |
| OFF Voltage Level | +3 VDC max. |
| Isolation | 3000 Vrms |
| Input Impedance | 4.7 KΩ |
| Motionnet | |
| Communication Connectors | RJ-45 x 2 |
| Transfer Speed | Selectable 2.5, 5, 10 or 20 Mbps by DIP Switch. |
| Cyclic Time | 15.1 μs per device (20 Mbps) |
| Power | |
| Input Range | 24 VDC (1000 V isolated) |
| Consumption | 2 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 mm x 140 mm x 126.6 mm |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
