MDC-771 Modbus Data Concentrator, Ethernet to 7 x RS-232 and 1 x RS-485
Modbus data concentrator linking Modbus TCP hosts to seven RS-232 ports and one RS-485 port, merging serial device data into one Ethernet-accessible address space.
- Modbus RTU master or slave on each serial port, with Modbus TCP slave on the Ethernet interface
- Up to 8 simultaneous Modbus TCP connections
- Data pool of 9600 registers for each of AI, AO, DI and DO data
- Polling definitions for up to 250 commands across all RS-232/485 ports
- Port mix of 1 x 5-wire RS-232, 6 x 3-wire RS-232 and 1 x 2-wire RS-485
- Per-port baud rates from 1200 to 115200 with N81, E81 and O81 data formats
4 398,56 kr per st.
| 1–9 st. | 4 398,56 kr | |
|---|---|---|
| 10–30 st. | 4 265,61 kr | −3 % |
| 31+ st. | 4 176,97 kr | −5 % |
Produktinformation "MDC-771 Modbus Data Concentrator, Ethernet to 7 x RS-232 and 1 x RS-485"

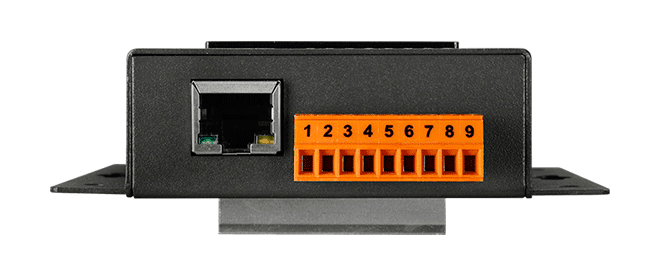

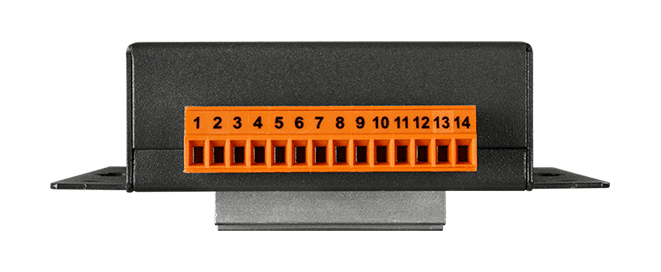

MDC-771 CR provides one 10/100 Base-TX Ethernet port alongside seven RS-232 ports and one RS-485 port, so Modbus RTU devices on the serial side can be read and written from a Modbus TCP host. Each COM port can be set independently as a Modbus RTU master or slave, with its own baud rate, data format and timeout.
The unit polls the connected devices using a user-defined command table and maps their data into a continuous address range, letting the host retrieve everything in a single bulk read. Write commands are queued with the highest priority so that control updates are passed through quickly.
Configuration is handled through a simple CSV file, with an HTML5 web interface for importing, exporting and starting up the system. The model is well suited to upgrading legacy Modbus RTU equipment to an Ethernet network and to feeding centralised SCADA monitoring.
Applications
- Upgrading legacy Modbus RTU devices to Ethernet-based systems
- Centralised data monitoring for SCADA applications
- Consolidating data from multiple serial Modbus devices for a single host
| Product type: | Modbus data concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 1 x Ethernet, 7 x RS-232, 1 x RS-485 |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |

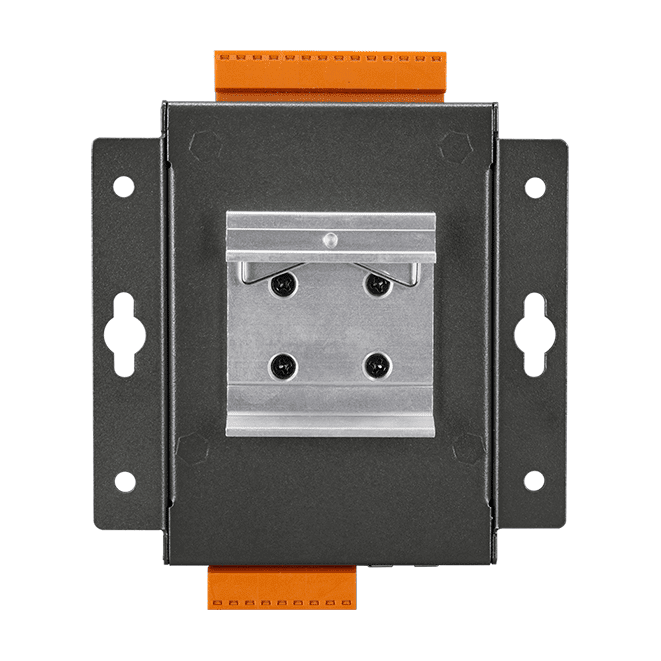

| Mounting: | Wall |
| Housing: | Metal |
Specifikationer
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System, to display heart beat |
| Ethernet | |
| Ports | x1, 10/100 Base-TX |
| Protocol | Modbus/TCP Slave |
| COM Ports | |
| Ports | MDC-711: 1 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-714: 1 x 5-wire RS-232, 4 x 2-wire RS-485 MDC-714i: 1 x 5-wire RS-232, 1 x 2-wire RS-485, 3 x 2-wire RS-485 (2500 VDC Signal Isolation) MDC-741: 4 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-771: 1 x 5-wire RS-232, 6 x 3-wire RS-232, 1 x 2-wire RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Modbus RTU Slave |
| Polling Definition | 250 definitions for all RS-232/485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI and DO data |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 102 mm x 125 mm x 28 mm (W x H x D) |
| Installation | Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
