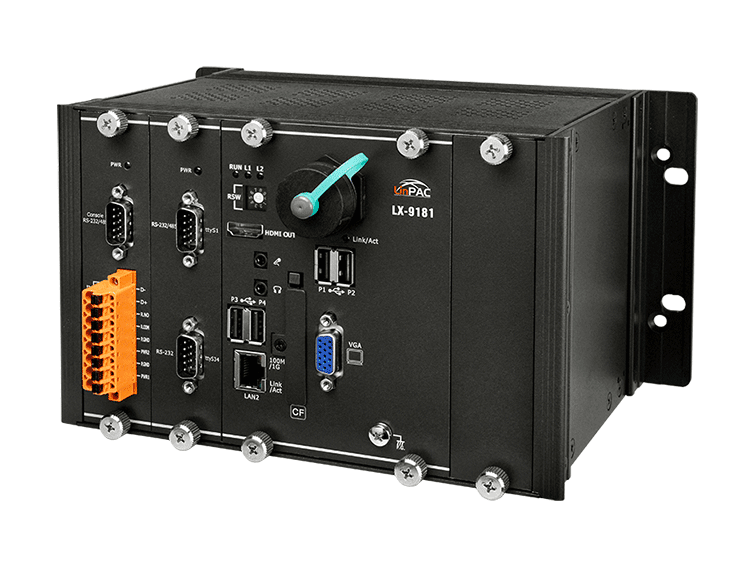

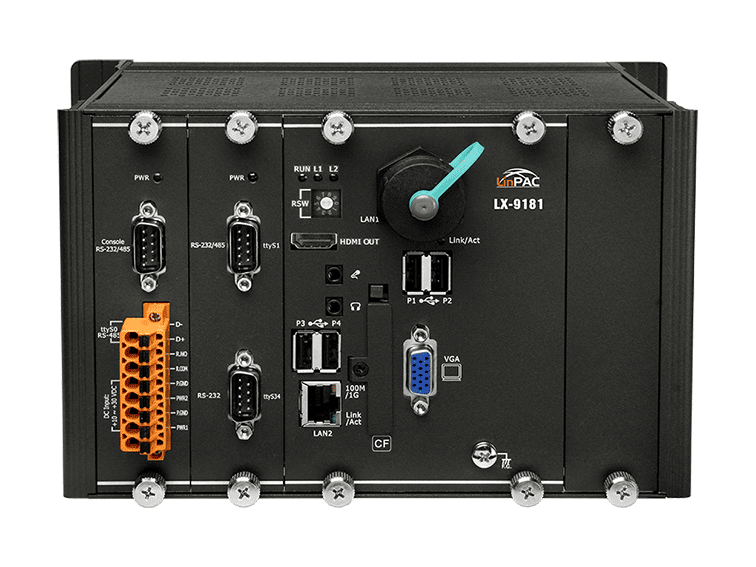

LX-9181 1-Slot Linux PAC with E3845 CPU, Metal Case
1-slot Linux-based PAC with an E3845 quad-core CPU, combining computing, I/O and operator interface in one metal-cased unit with VGA and HDMI display outputs.
- E3845 (1.91 GHz, quad core) CPU running Linux kernel 4.14.12
- Single slot for I-9K and I-97K series local I/O modules
- Dual VGA and HDMI display outputs for local HMI
- Two 10/100/1000 Base-TX Ethernet ports and four USB 2.0 host ports
- Four isolated serial ports (RS-232, RS-485 and RS-232/485) rated 3000 VDC
- Dual watchdog timer, real-time clock and redundant power inputs with alarm relay
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "LX-9181 1-Slot Linux PAC with E3845 CPU, Metal Case"
The LX-9181 CR is a 1-slot Linux-based PAC that brings controller logic, local I/O and an operator display into a single DIN-rail or wall-mounted unit. Its E3845 (1.91 GHz, quad core) processor and 4 GB DDR3 SDRAM suit engineers who need to run custom Linux applications alongside HMI and data acquisition tasks.
Connectivity centres on two 10/100/1000 Base-TX Ethernet ports, four USB 2.0 host ports and a set of isolated serial interfaces: one RS-232, one RS-485, and two combined RS-232/485 ports, one of which is the console. Dual VGA and HDMI outputs support local display. A single slot accepts I-9K or I-97K series I/O modules, and remote expansion is possible with Ethernet and RS-485 I/O modules.
The unit includes a dual watchdog timer, a real-time clock, MRAM and EEPROM non-volatile memory, and a 32 GB mSATA SSD with a CF card slot for user programs and data. Redundant power inputs with an alarm relay are fitted, and the LinPAC SDK with GCC-based toolchain supports application development in GNU C.
Applications
- Combined HMI, data acquisition and control in a single PAC
- Local expansion with I-9K and I-97K series I/O modules
- Remote I/O expansion over Ethernet and RS-485
- Serial device communication over RS-232 and RS-485 ports
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Linux kernel 4.14.12 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | E3845 (1.91 GHz, quad core) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | • Flash: mSATA slot with one 32 GB SSD • CF card slot |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB), HDMI |
| Resolution | 1280 × 1024 to 1920 × 1080 for 16:9 display 640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators | |
| Status | 2 x Power 1 x Run (Programmable) 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | 1 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (Console, 3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 4 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 18.5 W (0.77 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 239 x 133 x 164 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
