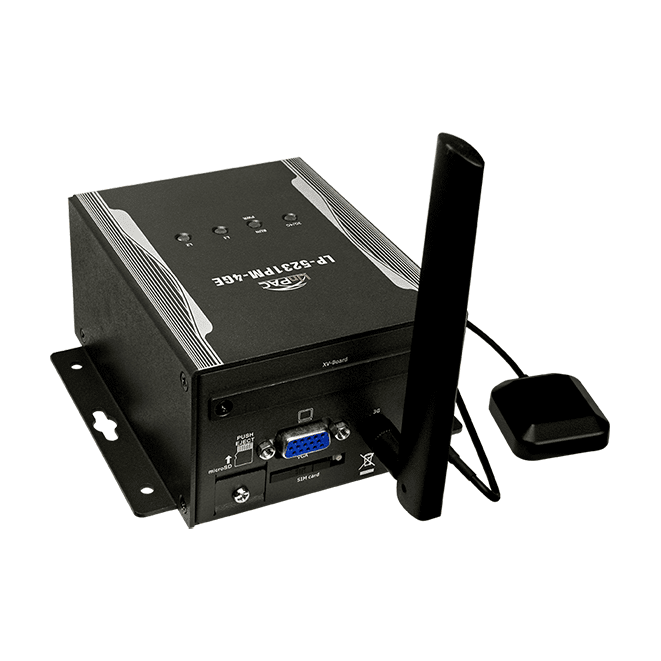

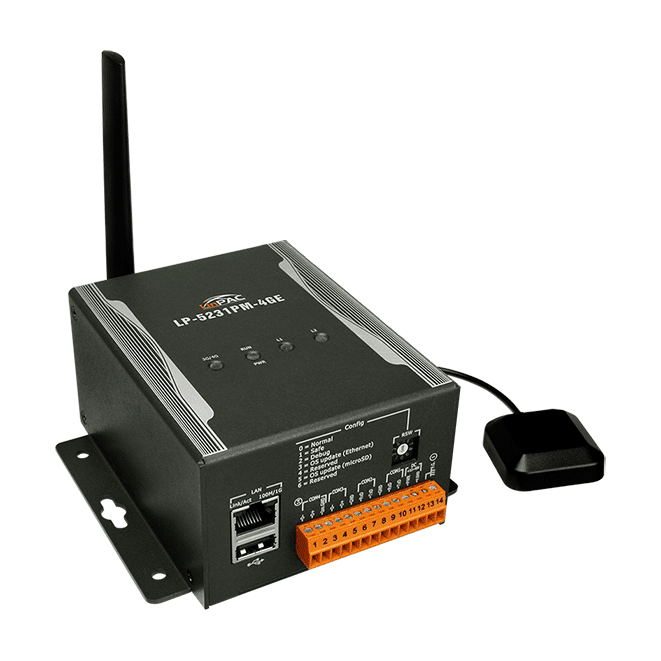

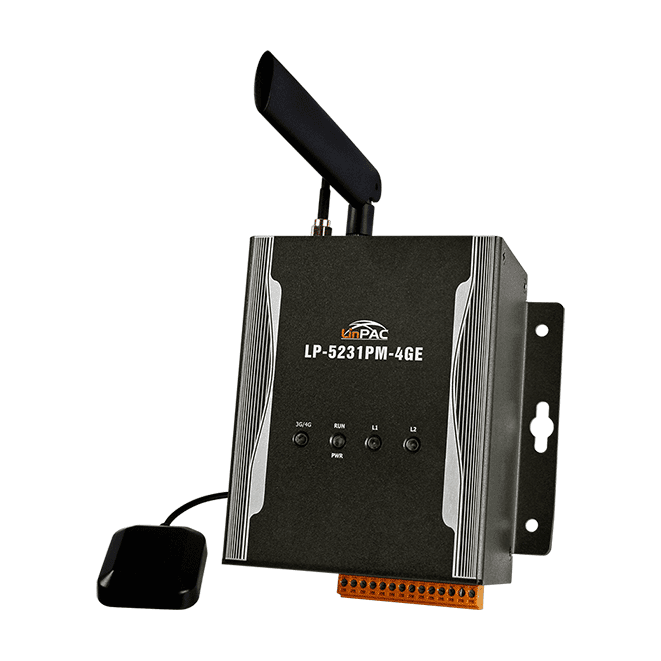

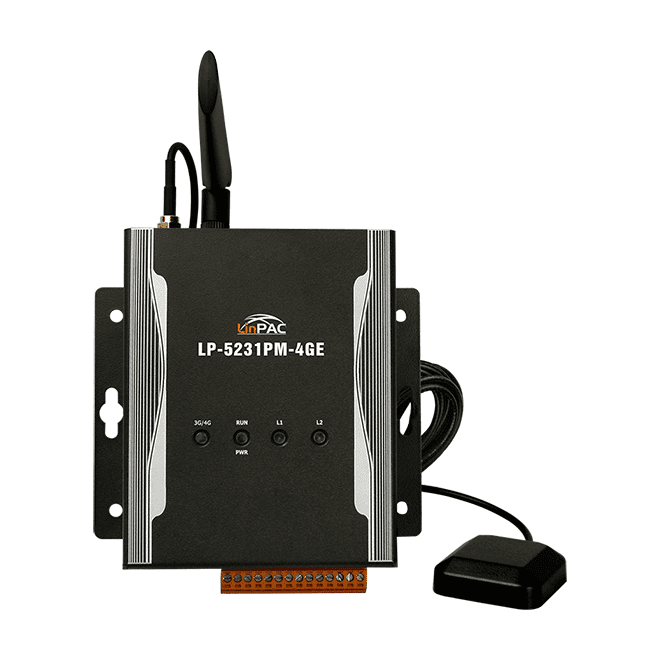

LP-5231PM-4GE 4G Linux PAC with Cortex-A8 CPU, GPS and XV-Board Expansion
Linux-based PAC with a 1 GHz Cortex-A8 CPU, integrated 4G modem, GPS, four serial ports and XV-Board I/O expansion for remote data links and control.
- 1 GHz Cortex-A8 CPU running Linux kernel 3.2.14
- Industrial tri-band 4G modem for cellular data links
- Four RS-232/485 serial ports, one RS-485 port isolated to 2500 VDC
- XV-Board I/O expansion bus
- Built-in GPS/GNSS receiver, 32 channels, NMEA 0183
- 512 MB DDR3 SDRAM, 512 MB flash and microSD socket with 4 GB card (up to 32 GB microSDHC)
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "LP-5231PM-4GE 4G Linux PAC with Cortex-A8 CPU, GPS and XV-Board Expansion"
The LP-5231PM-4GE CR is a Linux-based programmable automation controller that pairs a 1 GHz Cortex-A8 processor with an integrated 4G modem. It suits engineers who need to run custom control or data-logging software at a remote site and send the results over a cellular network.
Connectivity centres on a single RJ-45 10/100/1000 Ethernet port, four RS-232/485 serial ports (one RS-485 port is isolated to 2500 VDC) and a USB 2.0 host port. The XV-Board expansion bus adds I/O, and GPS/GNSS reception with NMEA 0183 output is built in. Software development is supported by the LinPAC SDK, a GCC-based toolchain with LinPAC libraries.
- Cortex-A8 CPU at 1 GHz with 512 MB DDR3 SDRAM and 512 MB flash
- Industrial tri-band 4G module for cellular data transfer from remote instruments and control systems
- Four RS-232/485 serial ports, with one RS-485 port isolated to 2500 VDC
- XV-Board I/O expansion bus
- Embedded web, FTP, Telnet and SSH servers on a Linux kernel 3.2.14
- Dual watchdog timer, real-time clock and 64-bit hardware serial number for software copy protection
Applications
- Remote data acquisition over 3G/4G cellular networks
- Transfer of live or packet data from remote instruments, meters and control systems
- SMS and GPRS/3G/4G connection applications
- Multi-serial device connectivity
- Ethernet-networked control with embedded web and SSH access
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| Protocol: | NMEA 0183 |
| Ports: | 1 LAN, 4 serial, 1 USB |
| Isolation: | RS-485 port 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x Power 1 x Run 2 x Programmable |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download Max. 100 Mbps; Upload Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 |
| GPS/GNSS | |
| Channels | 32 |
| Protocol | NMEA 0183 |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 1 x RS-485, Non-isolated 1 x RS-485 (2500 VDC, Isolated) |
| USB | |
| Ports | 1 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
