LP-5231 Linux-Based PAC with Cortex-A8 1 GHz CPU and XV-Board Expansion
Linux-based PAC with a 1 GHz Cortex-A8 CPU, 512 MB RAM, a 10/100/1000 Ethernet port, four serial ports and an XV-Board I/O expansion bus for DIN-rail control.
- 1 GHz Cortex-A8 CPU running Linux kernel 3.2.14 with real-time capability
- 512 MB DDR3 SDRAM and 512 MB flash, with microSD storage
- 10/100/1000 Mbit/s Ethernet port plus four serial ports (RS-232/485)
- One RS-485 port isolated at 2500 VDC
- I/O Expansion Bus (XV-Board) for adding I/O modules
- 64-bit hardware serial number for software copy protection
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "LP-5231 Linux-Based PAC with Cortex-A8 1 GHz CPU and XV-Board Expansion"

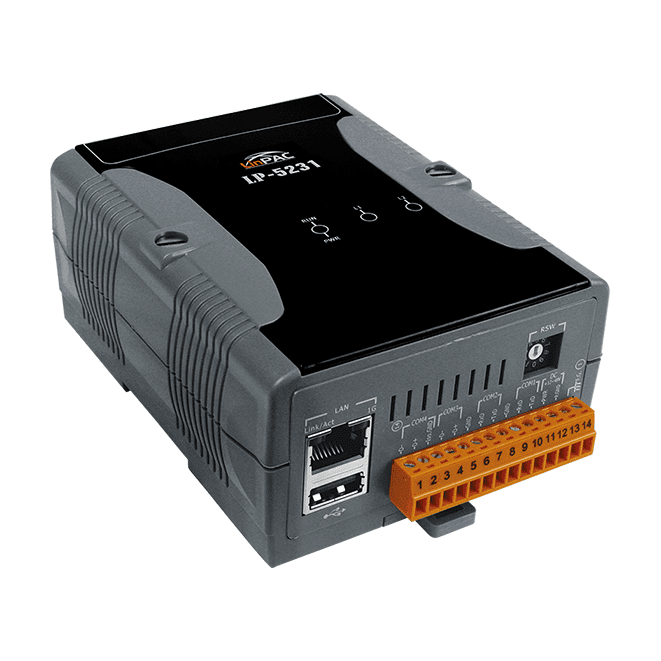

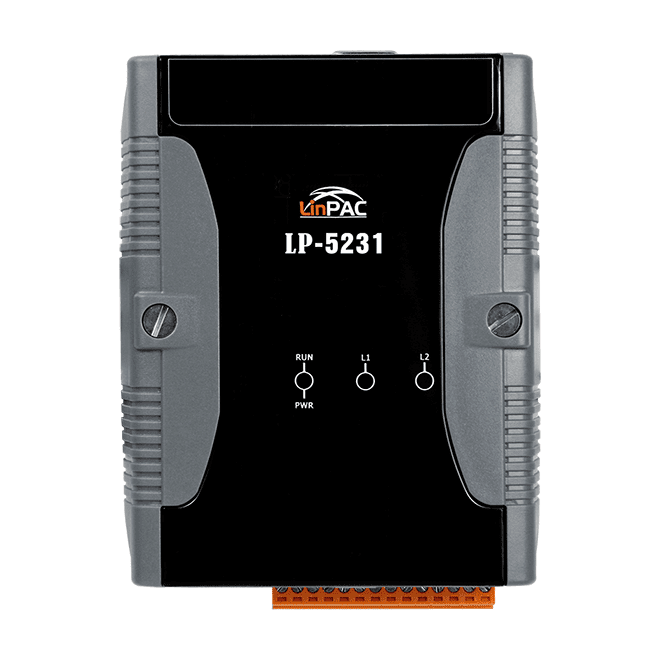

LP-5231 CR is a LinPAC programmable automation controller built around a 1 GHz Cortex-A8 processor and Linux kernel 3.2.14. It suits engineers who need a Linux platform with real-time capability for time-critical control and data handling, supported by an SDK with a GCC-based toolchain and LinPAC libraries.
The controller provides 512 MB DDR3 SDRAM, 512 MB flash and a microSD socket (4 GB card supplied, up to 32 GB microSDHC supported) for programs, images and data. A 64 KB FRAM provides non-volatile memory, and a real-time clock and dual watchdog timer support robust operation.

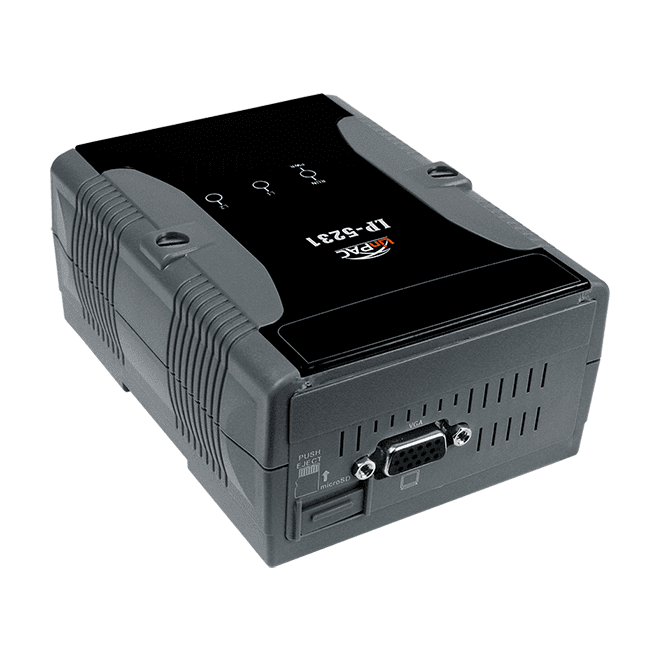

Connectivity includes a 10/100/1000 Base-TX Ethernet port, four serial ports (RS-232 and RS-485, one RS-485 port isolated at 2500 VDC), a USB 2.0 host port and VGA output up to 1280 x 1024. The XV-Board expansion bus adds I/O, and the unit mounts on DIN-rail with a supply input of +12 VDC to +48 VDC.
Applications
- Distributed control with Linux-based application logic
- Multi-serial device communication
- Time-critical and high-performance automation tasks
- Remote access and management via web, SFTP and SSH services
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0 host, VGA, XV-Board |
| Ports: | 6 |
| Isolation: | 2500 VDC (one RS-485 port) |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x Power 1 x Run 2 x Programmable |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 1 x RS-485, Non-isolated 1 x RS-485 (2500 VDC, Isolated) |
| USB | |
| Ports | 1 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
