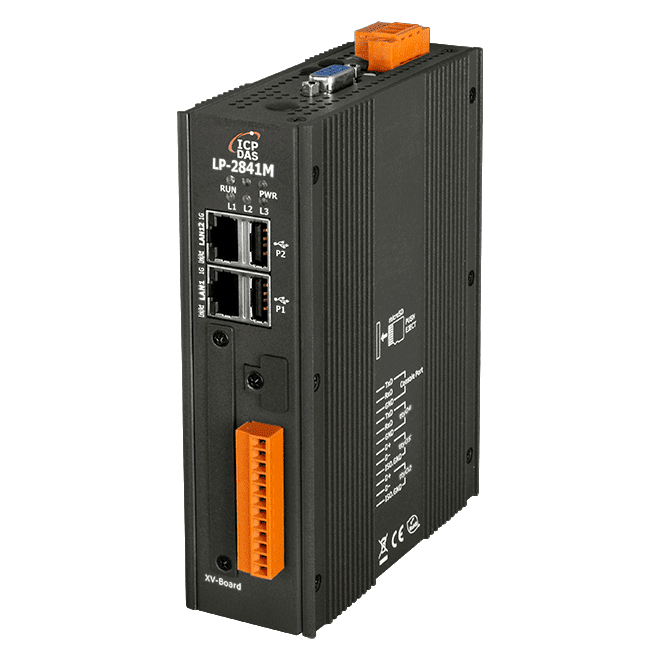

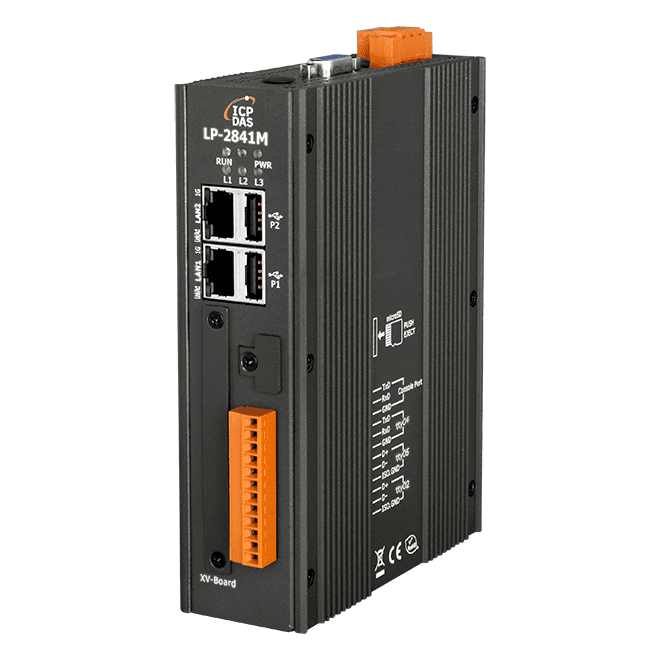

LP-2841M Linux PAC with Quad-core Cortex-A53 and Dual Gigabit Ethernet
Linux-based programmable automation controller with a quad-core 1.6 GHz Cortex-A53 CPU, 2 GB RAM, dual 10/100/1000M Ethernet and four serial ports, in a metal case.
- Quad-core Cortex-A53 CPU, up to 1.6 GHz per core
- Linux Kernel 5.4.70 with SFTP, Web and SSH services
- 2 GB DDR3 SDRAM and 8 GB eMMC storage
- Dual 10/100/1000M RJ-45 Ethernet ports
- Four serial ports, including two isolated RS-485 (2500 VDC)
- XV-board I/O expansion bus
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "LP-2841M Linux PAC with Quad-core Cortex-A53 and Dual Gigabit Ethernet"
The LP-2841M CR is a Linux-based PAC built around a quad-core Cortex-A53 processor running at up to 1.6 GHz per core, with Linux Kernel 5.4.70 as its operating system. It suits engineers who need a general-purpose controller that can run custom Linux applications and handle several serial and network connections on one unit.

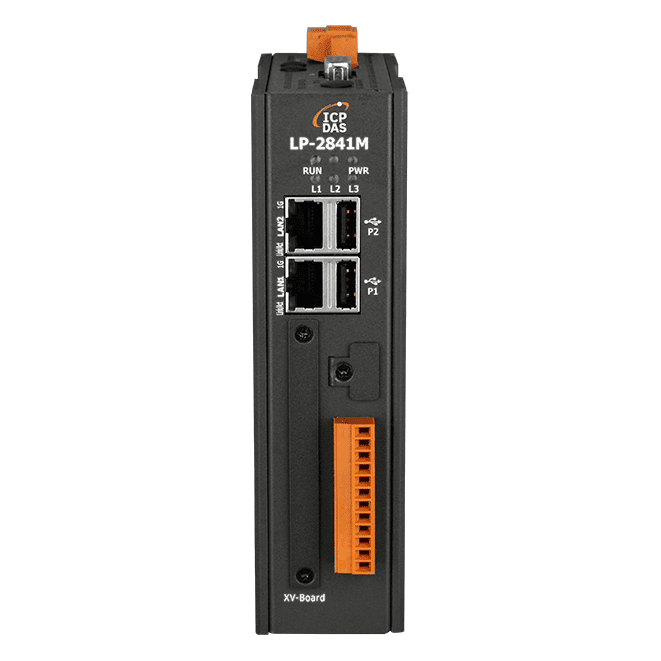

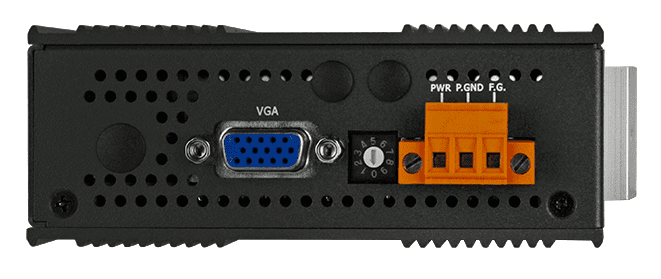

Connectivity centres on two 10/100/1000M RJ-45 Ethernet ports and four serial ports: one RS-232 console port, one non-isolated RS-232 port and two isolated RS-485 ports rated at 2500 VDC. Two USB 2.0 host ports, a VGA output and an XV-board expansion bus add further options for local interfaces and I/O extension.

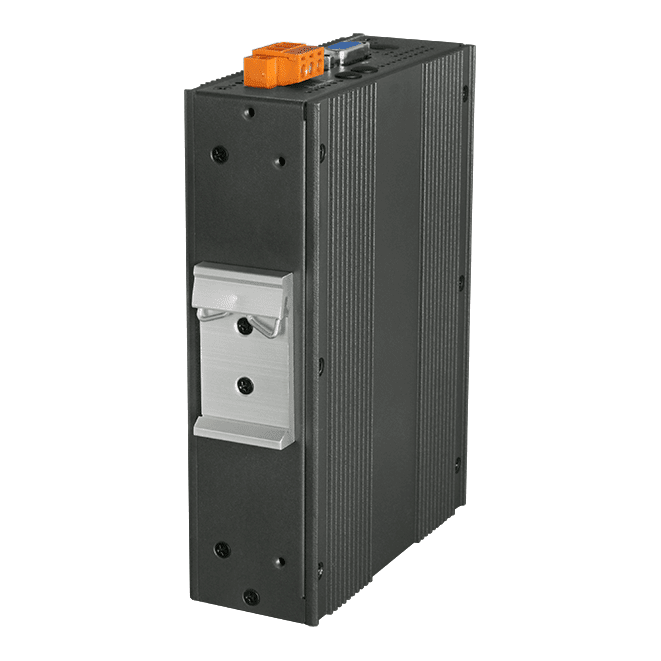

Storage includes 8 GB eMMC and a microSD socket, supporting cards up to 32 GB microSDHC. The unit provides 64 KB of FRAM for non-volatile data, a real-time clock, dual watchdog timers and a 64-bit hardware serial number for software copy protection. The metal housing mounts on DIN-rail or, optionally, on a wall.
Applications
- Multi-serial device communication and gateway tasks
- Networked control and monitoring with web, SFTP and SSH access
- Development of custom time-critical Linux applications
- Modbus and SNMP-based system integration
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Protocol: | Linux |
| Ports: | 2 Ethernet, 4 serial |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall (optional) |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Linux Kernel 5.4.70 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | 4x Cortex-A53 core platforms up to 1.6 GHz per core |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | • eMMC 8 GB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1920 x 1080 |
| LED Indicators | |
| Status | 1 x Power 1 x Run 3 x Programmable |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 2 x RS-485 (2500 VDC, Isolated) |
| USB | |
| Ports | 2 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting (optional) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
