IWS-2201-CE7-1500 InduSoft ViewPAC, 7-inch Touch HMI with WinCE 7.0
IWS-2201-CE7-1500 is a fanless 7-inch resistive touch ViewPAC running InduSoft Runtime with 1500 tags on Windows CE 7.0, with a NEMA 4/IP65 front panel for panel mounting.
- 7-inch 800 x 480 TFT LCD with 4-wire resistive touch panel
- InduSoft Runtime with 1500 tags pre-installed on Windows CE 7.0
- Cortex-A8 1.0 GHz CPU with 512 MB DDR3 SDRAM and 256 MB flash
- Modbus, OPC and TCP/IP client/server support plus DCON driver for ICP DAS I/O
- NEMA 4/IP65 front panel for panel mounting, fanless design
- Two RS-232/RS-485 ports with 2500 VDC isolation, one Gigabit Ethernet port, two USB ports
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "IWS-2201-CE7-1500 InduSoft ViewPAC, 7-inch Touch HMI with WinCE 7.0"

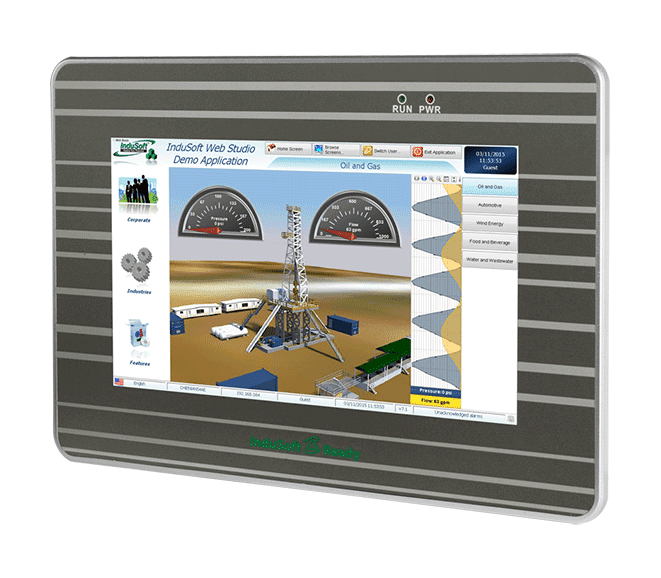

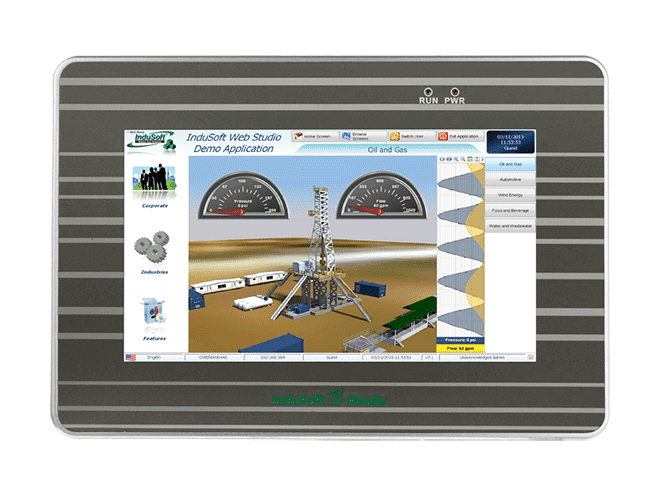

The IWS-2201-CE7-1500 combines a Cortex-A8 1.0 GHz controller with a 7-inch 800 x 480 resistive touch display, giving engineers a panel-mounted operator interface that also runs control logic. The InduSoft Runtime is included with a 1500-tag licence, and the Windows CE 7.0 operating system is held in on-board flash memory.

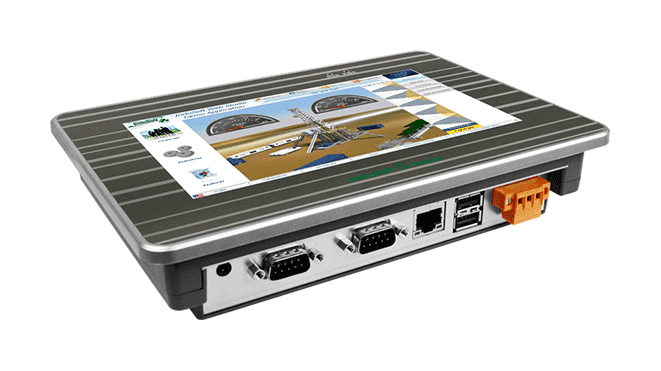

Connectivity covers one RJ-45 10/100/1000 Base-TX Ethernet port, two RS-232/RS-485 COM ports with 2500 VDC isolation, and two USB ports. The unit supports Modbus, OPC and TCP/IP client/server communication, and a DCON driver is provided for ICP DAS I/O modules. Remote I/O can be added through Ethernet, RS-485, Wi-Fi and ZigBee I/O modules.
This ordering code is the version without an I/O slot, with the 1500-tag InduSoft Runtime. The front panel carries an NEMA 4/IP65 rating, and the fanless design is rated for -10 ~ +60 °C operation, so it suits dusty or humid cabinet and machine-mounted installations.
Applications
- Control and HMI applications
- Panel-mounted machine and process operator interfaces
- Dusty or humid industrial environments
| Product type: | ViewPAC |
|---|---|
| Interface: | Gigabit Ethernet, RS-232/RS-485, USB |
| Protocol: | Modbus, OPC, TCP/IP |
| Ports: | 1 Ethernet, 2 COM, 2 USB |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC (COM ports) |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel, VESA 75 x 75 |
| Housing: | NEMA 4/IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Microsoft Windows Embedded Compact 7 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .NET Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes, for software copy protection |
| System Memory | SDRAM 512 MB (DDR3) |
| Storage | Flash (SSD) 256 MB; microSD socket with a 4GB Micro SDHC card (support up to 32 GB) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | 0.8 second |
| Display | |
| Size | 7” (16:9) |
| Backlight Life | 20000 |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 480 |
| Touch Panel | 4-wire, resistive type; light transmission: 80% |
| Contrast Ratio | 20.834027777778 |
| LED Indicators | |
| Status | 2 x Power and Run |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
| Jack | Earphone-out |
| Ethernet | |
| Ports | 1 x RJ-45 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232/RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 6 W |
| Powered from PoE | IEEE 802.3af |
| Mechanical | |
| Dimensions (mm) | 213 x 148 x 44 |
| Panel Cut-out (mm) | 197 x 133 ± 1 |
| Installation | Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
