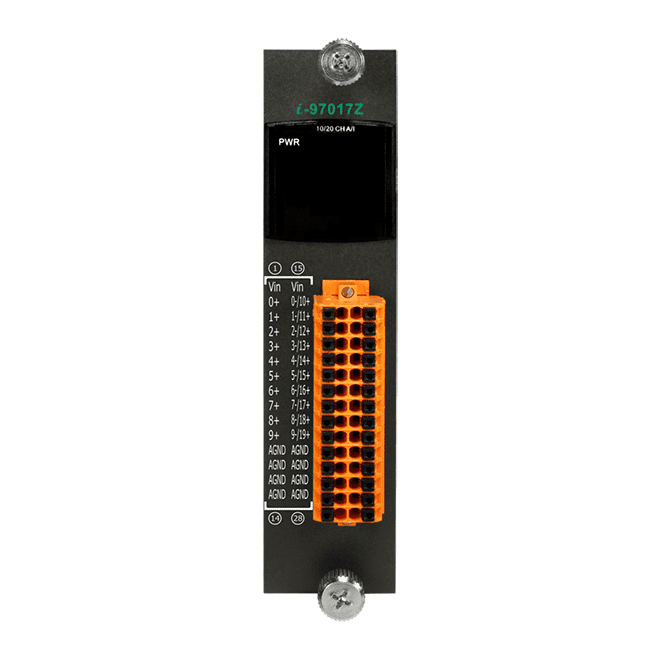

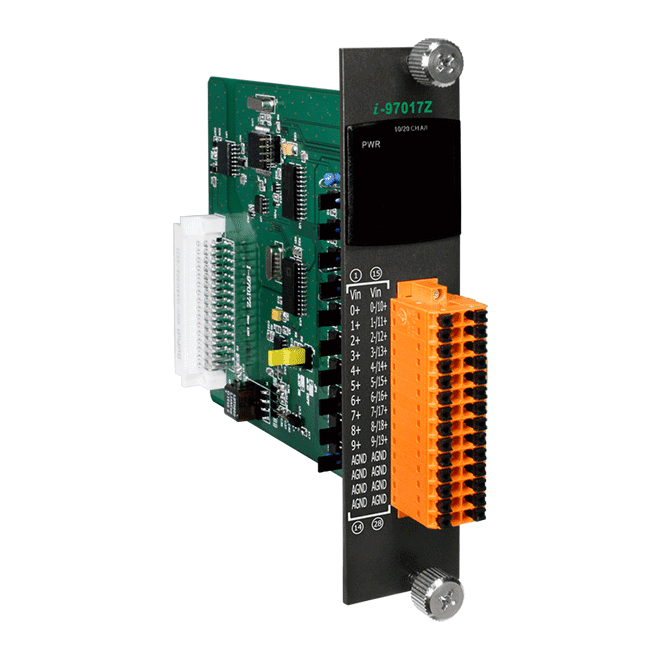

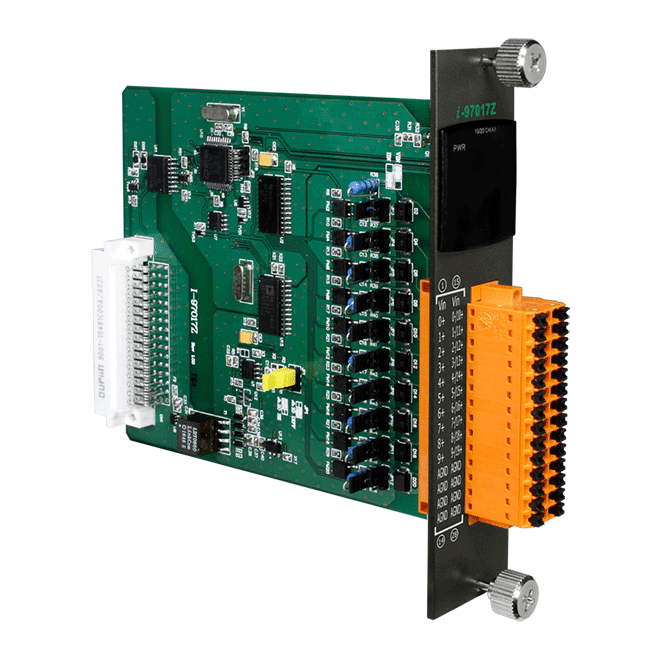

I-97017Z 10/20-ch Analog Input Module with 240 Vrms Overvoltage Protection
16-bit analog input module with 10 differential or 20 single-ended channels, jumper-selectable voltage or current inputs and 240 Vrms overvoltage protection on each channel.
- 10 differential or 20 single-ended analog inputs, jumper selectable
- Individual channel configuration with a range choice of ±150 mV to ±10 VDC, ±20 mA and 0 ~ +20 mA or +4 ~ +20 mA
- 240 Vrms overvoltage protection and 50 mA overcurrent protection at 110 VDC/VAC
- 16-bit resolution with normal mode (10 Hz total) and fast mode (50 Hz total) sampling
- Per-channel open wire detection for +4 ~ +20 mA inputs
- 3000 VDC intra-module isolation and ±4 kV ESD protection on each terminal
3 168,74 kr per st.
| 1–9 st. | 3 168,74 kr | |
|---|---|---|
| 10–30 st. | 3 080,10 kr | −3 % |
| 31+ st. | 3 013,62 kr | −5 % |
Produktinformation "I-97017Z 10/20-ch Analog Input Module with 240 Vrms Overvoltage Protection"
I-97017Z is an analog input module for engineers who need to measure a mix of voltage and current signals on one RS-485 node. Each of its 10 differential or 20 single-ended channels can be assigned an individual input range, from millivolt-level ranges up to 10 VDC and 20 mA, with 0 ~ +20 mA and +4 ~ +20 mA options. Voltage and current input selection is made by jumper.
The module is built for harsh signal environments. Every channel tolerates 240 Vrms overvoltage in differential mode, and each analog input includes 50 mA overcurrent protection at 110 VDC/VAC. Per-channel open wire detection is provided for +4 ~ +20 mA inputs, and 3000 VDC intra-module isolation separates the field side from the rest of the circuit.
Sampling can be set to normal mode at 10 Hz total or fast mode at 50 Hz total, so the module can be matched to the response time the process requires. A 16-bit resolution, a module watchdog and a communication watchdog support reliable operation, with the module reporting over DCON on a single RS-485 port.
Applications
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage systems
- Semiconductor fabrication
- Control systems
| Product type: | Analog Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Analog inputs: | 10 differential / 20 single-ended |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| RS Immunity (IEC 61000-4-3) | ±4 kV for Power |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 10 Differential or 20 Single-ended (See Note 1), Jumper selectable |
| Range | ±150 mV, ±500 mV, ±1 VDC, ±5 VDC, ±10 VDC, ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (jumper selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR |
| Sampling Rate | Normal Mode: 10 Hz (Total) Fast Mode: 50 Hz (Total) |
| Bandwidth | Normal Mode: 15.7 Hz Fast Mode: 78.7 Hz |
| Input Impedance | Voltage: 2 MΩ(Differential), 1 MΩ (Single-ended) Current: 125 Ω |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | Differential: 240 Vrms Single-ended: 150 Vrms |
| Overcurrent Protection | 50 mA Max. at 110 VDC/VAC Max. |
| Individual Channel Configuration | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 to 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
| Consumption | 0.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
