I-9144i 4-Port Isolated RS-422/485 Serial Module
4-port isolated RS-422/485 serial module with a 128-byte FIFO per port and speeds up to 115200 bps, for bar code readers, serial printers and intelligent sensors.
- Four isolated RS-422/485 serial ports
- Baud rates up to 115200 bps
- Internal 128-byte hardware FIFO for each port
- Built-in self-tuner or auto-direction control
- 2500 VDC intra-module isolation
- ±4 kV contact ESD protection per channel (IEC 61000-4-2)
2 869,59 kr per st.
| 1–9 st. | 2 869,59 kr | |
|---|---|---|
| 10–30 st. | 2 780,95 kr | −3 % |
| 31+ st. | 2 725,56 kr | −5 % |
Produktinformation "I-9144i 4-Port Isolated RS-422/485 Serial Module"

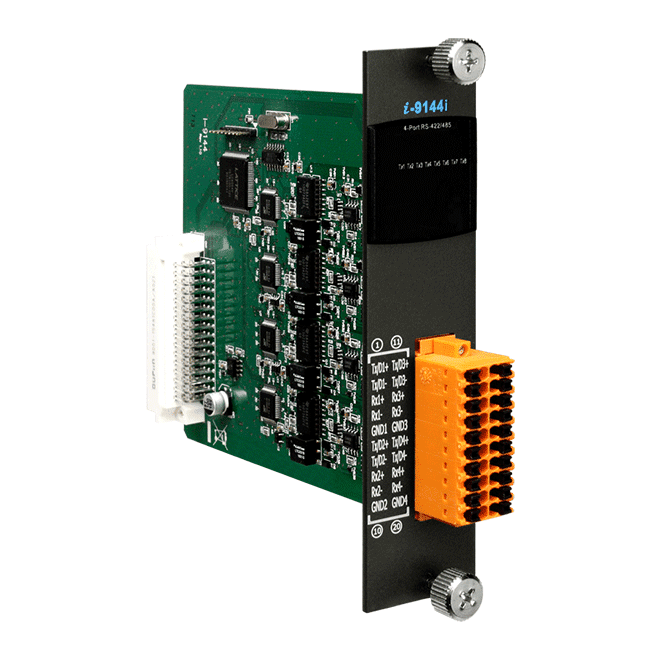

The I-9144i CR adds four galvanically isolated RS-422/485 serial ports to a PAC or remote I/O system, letting engineers connect several serial devices without sharing a common ground path. Each port has its own internal 128-byte hardware FIFO and runs at up to 115200 bps, with RS-422 full-duplex operation supported.
Each port offers a built-in self-tuner or auto-direction control, which simplifies RS-485 half-duplex wiring. Intra-module isolation is rated at 2500 VDC, and onboard ESD protection devices divert discharge from sensitive circuitry, with ±4 kV contact protection on each channel to IEC 61000-4-2.
The module suits devices such as bar code readers, serial printers, intelligent sensors, instrumentation equipment and computers, or almost any device fitted with an RS-422/485 port. Parity, data bit and stop bit settings are configurable per the listed options, and status LEDs show power, communication and transmit/receive activity for each port.
Applications
- Factory automation
- Building automation
- Home automation
- Bar code reader and serial printer connection
- Intelligent sensor and instrumentation interfacing
| Product type: | Serial communication module |
|---|---|
| Interface: | RS-422/485 |
| Ports: | 4 |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Channel |
| LED Indicators | |
| Status | 1 x Power and Communication 4 x TxD 4 x RxD |
| COM Ports | |
| Ports | 4 x RS-422/485 |
| Baud Rate | 115200 bps Max. |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 Bytes for Each Port |
| Power | |
| Consumption | 3 W (With 2 Resistors,1/4 Watt, 120 Ω 5%) |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
