I-87211W-G GPS Receiver Module, RS-232 with PPS and 2-ch Digital Output
GPS receiver module for ICP DAS PACs and remote I/O units, sending NMEA 0183 data over RS-232 with a 100 ms PPS timing output and two open-collector digital outputs.
- Tracks 32 GPS channels with NMEA 0183 v3.01 output at 9600 bps
- RS-232 port supports NMEA 0183 or DCON protocol
- PPS output: 100 ms pulse per second for precise timekeeping and time measurement
- Two non-isolated open-collector digital outputs (sink), +5 VDC to +30 VDC, 100 mA load current
- Supports SBAS (WAAS, EGNOS, MSAS) and uses a MediaTek chipset
- Operates from -25 to +75 °C with a power consumption of 0.75 W (max.)
2 648,00 kr per st.
| 1–9 st. | 2 648,00 kr | |
|---|---|---|
| 10–30 st. | 2 559,36 kr | −3 % |
| 31+ st. | 2 515,05 kr | −5 % |
Produktinformation "I-87211W-G GPS Receiver Module, RS-232 with PPS and 2-ch Digital Output"
The I-87211W-G CR adds GPS positioning and precise timing to ICP DAS PACs and remote I/O expansion units. It tracks 32 GPS channels and outputs position data in NMEA 0183 v3.01 format at 9600 bps over an RS-232 port, which can also be set to DCON protocol.
Beyond the GPS receiver, the module provides a PPS output for timekeeping and time measurement, and two extra digital outputs for general-purpose switching. The PPS signal is delivered as a 100 ms pulse each second by default and can serve as a time synchronisation source alongside other timing inputs in the system.

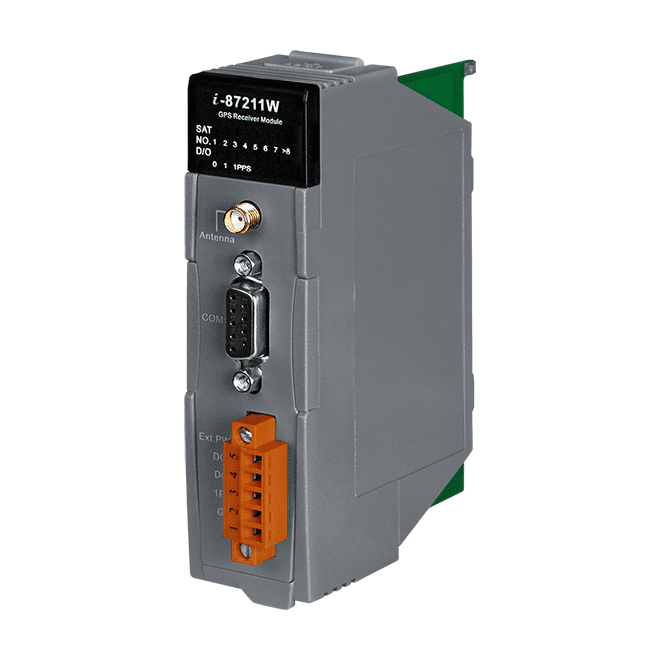

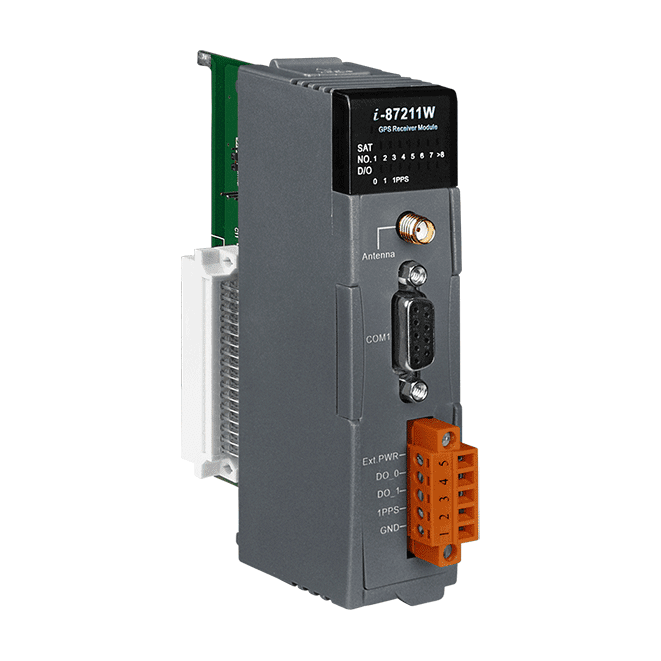

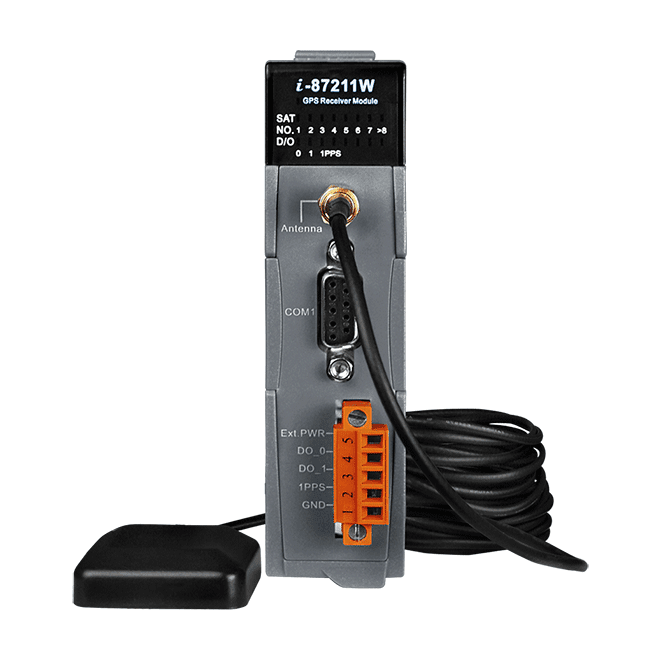

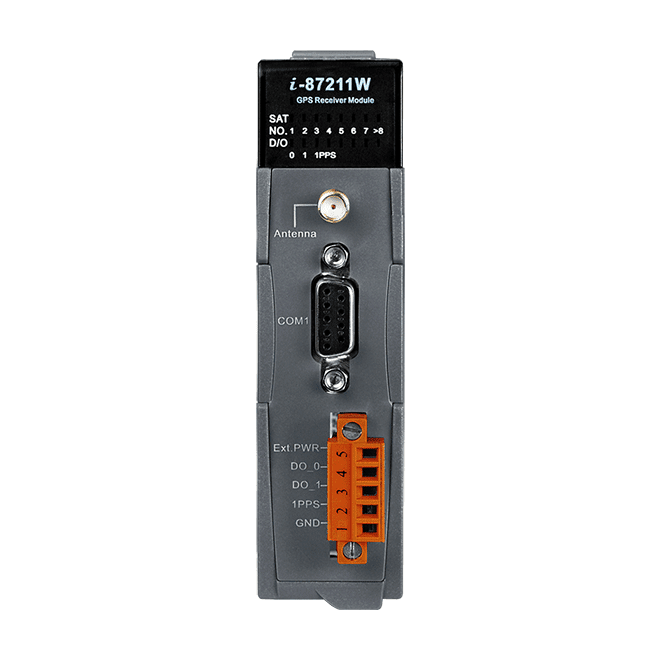

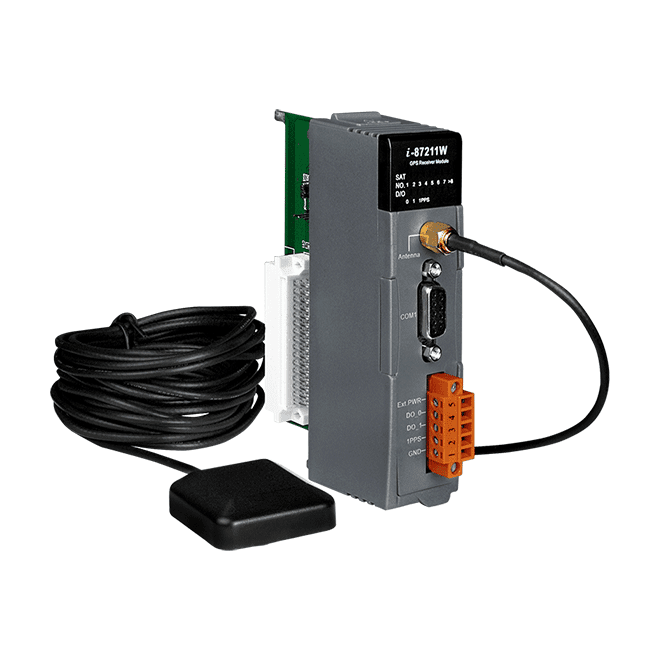

- Mounts on DIN rail with a 5 m GPS antenna (ANT-115-03) included in this ordering code
- Gray cover variant (CR); the product page lists RoHS and WEEE compliance
Applications
- Automotive navigation
- Personal positioning and navigation
- Marine navigation
- Satellite time correction
- Precise timekeeping and time measurement
| Product type: | GPS receiver module |
|---|---|
| Interface: | RS-232 |
| Protocol: | DCON, NMEA 0183 v3.01 |
| Digital outputs: | 2 |
| Ports: | 2 |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power/Communication 3 x Digital Output 8 x GPS |
| GPS/GNSS | |
| Acquisition Time | Cold Start (Open Sky)=42 s (typical) |
| Chip | MediaTek solution |
| Frequency | L1 1575.42 MHz, C/A code |
| Max. Altitude | <18,000 m |
| Max. Velocity | <515 m/s |
| Position Accuracy | Capable of SBAS (WAAS, EGNOS, MSAS) |
| Protocol | NMEA 0183 version 3.01 (Baudrate 9600 bps) |
| Sensitivity | Tracking: Up to -158 dBm Cold start: Up to -142 dBm |
| Support Channels | 32 |
| Digital Output | |
| Channels | 2 (Sink) |
| Type | Non-isolated Open Collecto |
| Load Voltage | +5 VDC ~ +30 VDC |
| Load Current | 100 mA |
| COM Ports | |
| Ports | 1 x PPS (Pulse per second output (Default 100 ms pulse/sec)) 1 x RS-232 Interface (GPS information output) |
| Power | |
| Consumption | 0.75 W (max.) |
| Mechanical | |
| Dimensions (mm) | 30 x 91 x 114 (W x L x D) |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +85°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
