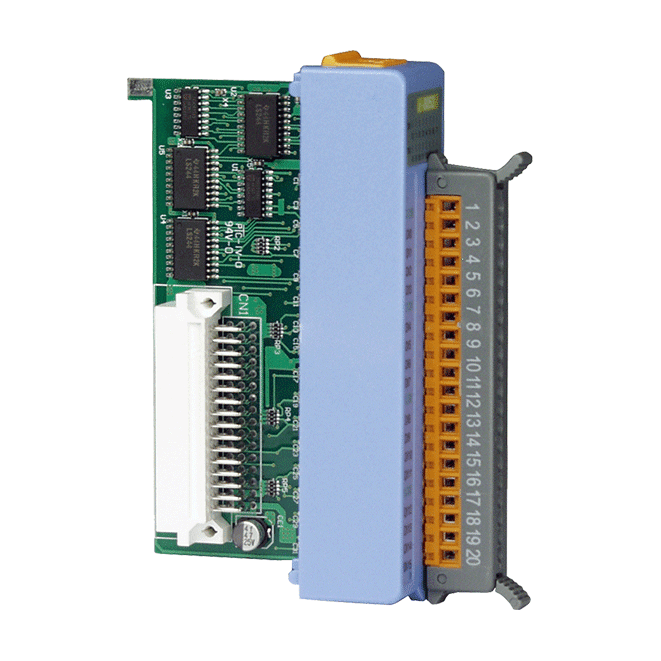

I-8053 16-Channel Isolated Wet-Contact Digital Input Module, 10~30 VDC
16-channel isolated digital input module for wet contact signals at 10~30 VDC, with sink/source support, channel LEDs and 3750 VDC intra-module isolation.
- 16 digital input channels for wet contact signals rated 10~30 VDC
- Sink/Source (NPN/PNP) compatible inputs
- Photocoupler isolation with 3750 VDC intra-module isolation
- 4 kV ESD protection on each terminal (IEC 61000-4-2)
- LED indicator for every channel plus power and communication status
- Low power consumption, 0.4 W maximum
1 019,31 kr per st.
| 1–9 st. | 1 019,31 kr | |
|---|---|---|
| 10–30 st. | 986,08 kr | −3 % |
| 31+ st. | 963,92 kr | −5 % |
Produktinformation "I-8053 16-Channel Isolated Wet-Contact Digital Input Module, 10~30 VDC"
I-8053 CR is a 16-channel digital input module for reading wet contact signals in the 10~30 VDC range. Each input works with either sink or source wiring, so one module suits a wide range of field devices without changing the hardware.
Every channel has its own status LED, and a separate power and communication LED is provided, so the state of each input can be checked at a glance during commissioning and fault finding. Photocoupler isolation and 3750 VDC intra-module isolation help keep the inputs stable in electrically noisy plants, while 4 kV ESD protection on each terminal adds robustness during installation and service.
The module suits building, factory and machine automation projects, as well as remote maintenance and diagnosis tasks and test rigs. It is specified for an operating range of -25 ~ +75 °C and a power consumption of 0.4 W maximum.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 3 kΩ, 0.5W |
| Power | |
| Consumption | 0.4 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
