I-8017H 8-ch Differential Analog Input Module, 14-bit, Voltage/Current
8-channel differential analogue input module with 14-bit resolution, per-channel range configuration and 2500 VDC intra-module isolation. Blue cover variant.
- 8 differential analogue inputs, each channel individually configurable
- Voltage ranges of ±10 VDC, ±5 VDC, ±2.5 VDC and ±1.25 VDC, or current range of ±20 mA
- 14-bit resolution with sampling up to 100 kS/s in single-channel polling mode
- Current measurement requires an optional external 125 Ω resistor
- Internal or external trigger
- Jumper-selectable input impedance of 20 K, 200 K or 20 M
3 246,29 kr per st.
| 1–9 st. | 3 246,29 kr | |
|---|---|---|
| 10–30 st. | 3 146,58 kr | −3 % |
| 31+ st. | 3 080,10 kr | −5 % |
Produktinformation "I-8017H 8-ch Differential Analog Input Module, 14-bit, Voltage/Current"

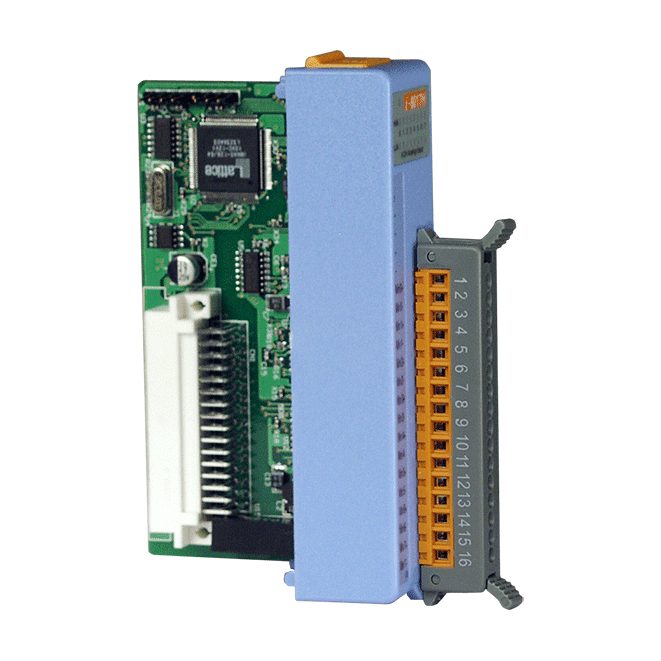

The I-8017H CR is an 8-channel differential analogue input module for engineers who need fast, individually configurable measurement of voltage or current signals. Each channel can be set to its own input range, from ±10 VDC down to ±1.25 VDC, or to ±20 mA.
Measurement performance is set by the 14-bit converter and the sampling mode in use. Single-channel polling reaches 100 kS/s, single-channel interrupt mode 50 kS/s, and the 8-channel scan mode 16 kS/s. Triggering can be internal or external. Input impedance (20 K, 200 K or 20 M) is selected by jumper.
Current inputs require an optional external 125 Ω resistor, which must be fitted for current-source measurement. The module provides ±4 kV ESD protection on each terminal and 2500 VDC isolation between the module's internal circuits. This CR variant has a blue cover and carries CE, FCC, RoHS and WEEE marking.
Applications
- High speed data acquisition system
- Process monitor and control
- Vibration analysis
- Digital pattern generation from digital I/O port
| Product type: | Analog Input Module |
|---|---|
| Analog inputs: | 8 |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Analog Input | |
| Channels | 8-ch Differential |
| Range | Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC Current: ±20 mA, Requires Optional External 125 Ω Resistor |
| Resolution | 14-bit |
| Sampling Rate | Single Channel Polling Mode: 100 kS/s Single Channel Interrupt Mode: 50 kS/s 8 channel Scan Mode: 16 kS/s |
| Input Impedance | 20 K, 200 K, 20 M (Jumper Selectable) |
| Individual Channel Configuration | Yes |
| Power | |
| Consumption | 2 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
