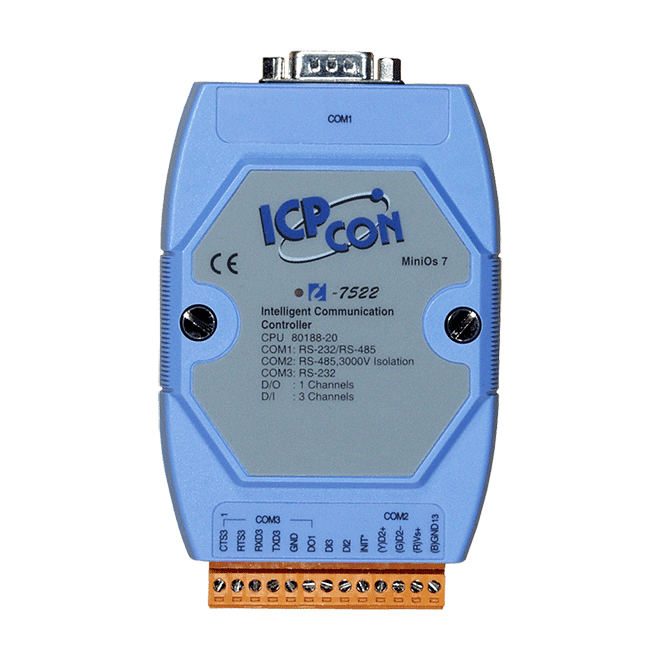

I-7522 Addressable RS-485 to 2 x RS-232/RS-485 Converter, 2 DI/1 DO
Addressable RS-485 to dual RS-232/RS-485 converter with 2 dry-contact digital inputs and 1 open-collector digital output, for giving serial devices unique addresses on an RS-485 network.
- Assigns a unique address to RS-232 devices installed on an RS-485 network
- Includes addressable RS-485 to RS-232 converter firmware
- Dual-Watchdog command support plus power-up and safe values for the digital output
- Real-time monitoring and control of the onboard 2 DI and 1 DO
- 1 KB queue buffer for each RS-232 interface
- 3000 V isolation on the RS-485 interface
2 393,17 kr per st.
| 1–9 st. | 2 393,17 kr | |
|---|---|---|
| 10–30 st. | 2 326,70 kr | −3 % |
| 31+ st. | 2 282,38 kr | −5 % |
Produktinformation "I-7522 Addressable RS-485 to 2 x RS-232/RS-485 Converter, 2 DI/1 DO"
The I-7522 CR lets RS-232 devices take part in an RS-485 network by giving each one its own address. Commands addressed to a device are received over RS-485, the address is stripped, and the remaining command is passed to the local serial device. Responses are returned over the same RS-485 link, so a single bus can reach several serial instruments.
The unit combines two serial interfaces with onboard I/O. It provides one RS-232 port, one isolated RS-485 port and one combined RS-232/RS-485 port on a DB-9 male connector, with a maximum baud rate of 115200 bps. Two non-isolated dry-contact digital inputs and one open-collector digital output (+30 VDC, 100 mA load) can be monitored and controlled in real time.
Support for Dual-Watchdog commands, a programmable power-up value and safe value for the digital output, and a 1 KB queue buffer on each RS-232 interface help keep field communication predictable. The blue-cover version is supplied with the CE, FCC, RoHS and WEEE markings listed in the source data, and it mounts on DIN-rail or by wall mounting.
Applications
- Connecting RS-232 instruments and devices to a shared RS-485 bus
- Addressing serial devices on multi-drop RS-485 networks
- Combining serial communication with local digital inputs and outputs
- Industrial automation panels with DIN-rail or wall-mounted installation
| Product type: | Converter |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 2 |
| Digital outputs: | 1 |
| Ports: | 3 |
| Isolation: | 3000 V (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188 or compatible, 20 MHz |
| Flash | 512 KB |
| SRAM | 128 KB |
| Watchdog Timer | Yes |
| Digital Input | |
| Channels | 2 |
| Type | Dry Contact, Non-isolated |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 1 |
| Type | Open Collector |
| Load Voltage | +30 VDC |
| Load Current | 100 mA |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 (3000 VDC Isolated) 1 x RS-232/RS-485 (DB-9 male) |
| Baud Rate | 115200 bps Max. |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH |
