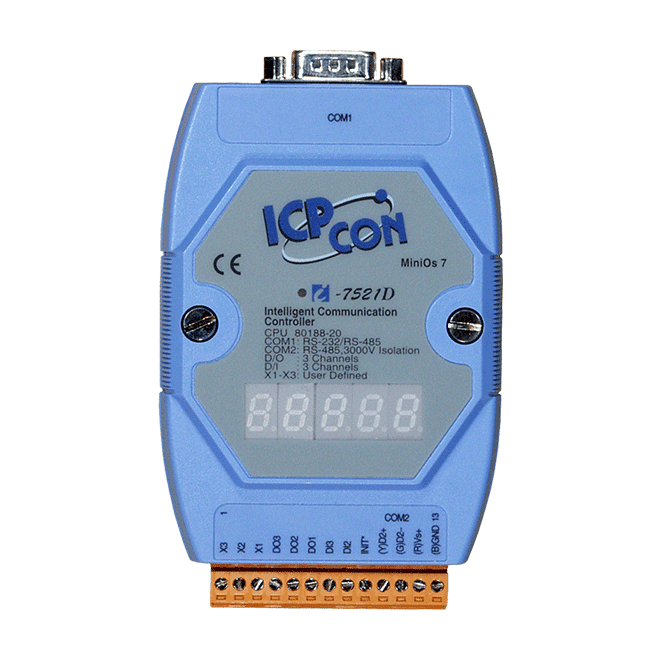

I-7521D Addressable RS-485 to RS-232/RS-485 Converter with 2 DI/3 DO
Addressable RS-485 to RS-232/RS-485 converter with 2 digital inputs, 3 open-collector outputs and a 7-segment LED display. Blue cover version with a 3000 VDC isolated RS-485 port.
- Addressable RS-485 to RS-232 conversion, with a unique address for each RS-232 device on the RS-485 network
- Master-type converter that does not depend on a host PC to operate
- Dual-watchdog command support, plus power-up and safe values for the digital outputs
- Real-time monitoring and control of the onboard DI/DO
- 2 dry-contact digital inputs and 3 open-collector digital outputs (100 mA, +30 VDC load)
- 3000 VDC isolation on the RS-485 interface
2 282,38 kr per st.
| 1–9 st. | 2 282,38 kr | |
|---|---|---|
| 10–30 st. | 2 215,90 kr | −3 % |
| 31+ st. | 2 171,58 kr | −5 % |
Produktinformation "I-7521D Addressable RS-485 to RS-232/RS-485 Converter with 2 DI/3 DO"
The I-7521D CR lets RS-232 devices sit on an RS-485 network with their own device address. The converter removes the address field from commands arriving over RS-485 and passes the remaining commands to its local RS-232 device, returning the device's responses to the host.
Unlike slave-type converters, this master-type unit is designed to operate without a host PC constantly driving it. Its onboard firmware supports dual-watchdog commands, power-up and safe values for the digital outputs, and real-time monitoring and control of the onboard I/O, so it can be adapted to local control requirements.
The unit adds two dry-contact digital inputs and three open-collector digital outputs, with a 7-segment LED indicator on the front. It has a 3000 VDC isolated RS-485 port, a 1 KB queue buffer for each RS-232 interface, and DIN-rail or wall mounting.
Applications
- Connecting RS-232 devices to RS-485 networks
- Addressing individual RS-232 devices on multi-device RS-485 networks
- Local digital input and output control alongside serial communication
| Product type: | Converter |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 2 |
| Digital outputs: | 3 |
| Ports: | 2 |
| Isolation: | 3000 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188 or compatible, 20 MHz |
| Flash | 512 KB |
| SRAM | 128 KB |
| Watchdog Timer | Yes |
| Digital Input | |
| Channels | 2 |
| Type | Dry Contact, Non-isolated |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Load Voltage | +30 VDC |
| Load Current | 100 mA |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC Isolated) 1 x RS-232/RS-485 (DB-9 male) |
| Baud Rate | 115200 bps Max. |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH |
