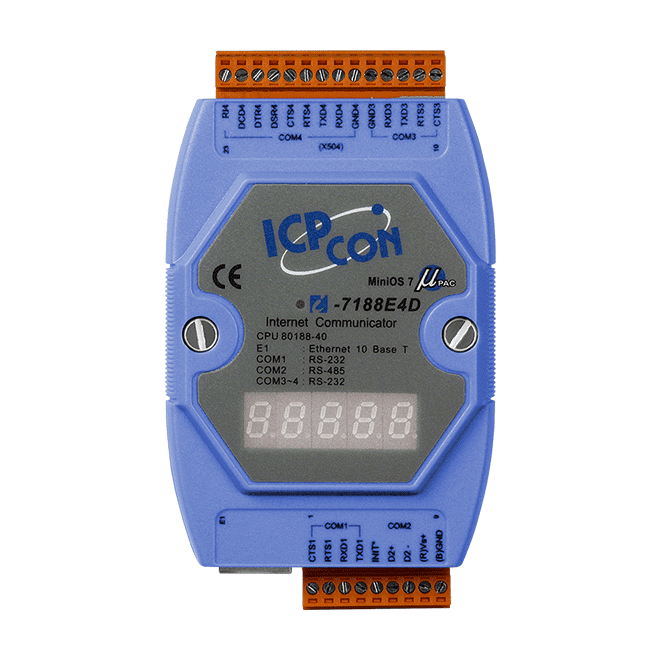

I-7188E4D Ethernet to 4-Port Serial Converter, 3x RS-232 + 1x RS-485
Programmable device server that brings three RS-232 ports and one RS-485 port onto Ethernet, with Virtual COM or raw TCP operation and a built-in MiniOS7 for custom logic.
- Converts three RS-232 ports and one RS-485 port to Ethernet
- Virtual COM operation for Windows 7 SP1, 10, 2012 and 2016 (32-bit and 64-bit) via VxComm driver
- Raw TCP connection option for direct socket communication
- Built-in MiniOS7 with Xserver programming structure for custom applications
- Watchdog timer for reliable operation in harsh environments
- Serial settings: up to 115200 bps, even, odd or no parity, 7 or 8 data bits, 1 stop bit
3 323,85 kr per st.
| 1–9 st. | 3 323,85 kr | |
|---|---|---|
| 10–30 st. | 3 224,13 kr | −3 % |
| 31+ st. | 3 157,66 kr | −5 % |
Produktinformation "I-7188E4D Ethernet to 4-Port Serial Converter, 3x RS-232 + 1x RS-485"
The I-7188E4D connects existing serial equipment to an Ethernet network without changing the device itself. Its four serial ports (three RS-232 and one RS-485) can be presented to a Windows host as standard COM ports through the VxComm driver, or accessed directly over raw TCP sockets, so legacy instruments and controllers can join a networked system with little rework.
Because the unit is programmable, it can also run application logic on the device. The built-in MiniOS7 and Xserver programming structure allow engineers to build custom Ethernet applications, while the watchdog timer supports stable operation in demanding industrial environments. The LED display provides at-a-glance status indication.
The compact housing measures 123 x 72 x 33 mm and accepts a non-regulated +10 to +30 VDC supply with reverse polarity protection. It is rated for operation from -25 °C to +75 °C, making it suitable for factory, building and home automation installations.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 4 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 2 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) 1 x RS-232 (TXD, RXD, RTS, CTS, GND, DCD, DTR, DSR, RI) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 3W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
