I-7017F 8-ch Analog Input Module, Fast Sampling, DCON RS-485
16-bit RS-485 analog input module with 8 differential or 6 differential plus 2 single-ended channels, voltage and current inputs, and a 60 Hz fast sampling mode.
- Fast sampling mode at 60 Hz, selectable against 10 Hz normal mode
- 16-bit resolution with voltage and current input ranges
- 8 differential, or 6 differential plus 2 single-ended channels, set by jumper
- Open wire detection for 4 ~ 20 mA inputs
- 3000 VDC intra-module isolation and ±120 VDC overvoltage protection
- Built-in dual watchdog for module and communication
2 393,17 kr per st.
| 1–9 st. | 2 393,17 kr | |
|---|---|---|
| 10–30 st. | 2 326,70 kr | −3 % |
| 31+ st. | 2 282,38 kr | −5 % |
Produktinformation "I-7017F 8-ch Analog Input Module, Fast Sampling, DCON RS-485"

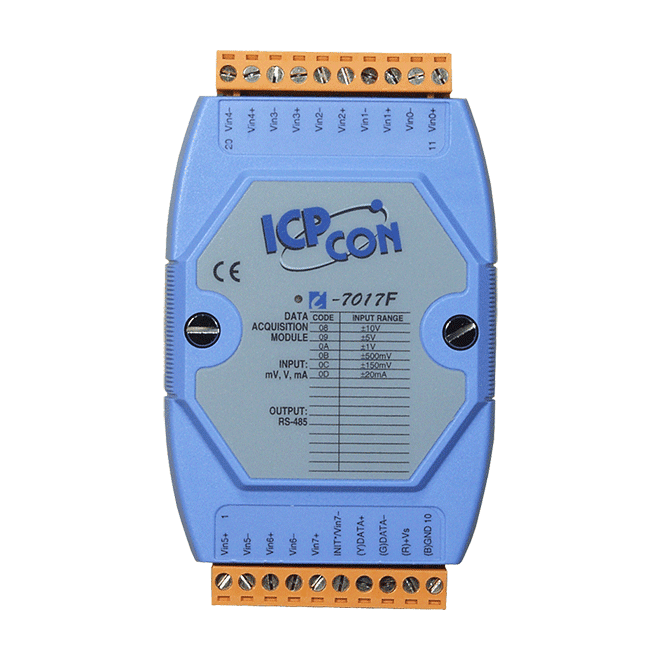

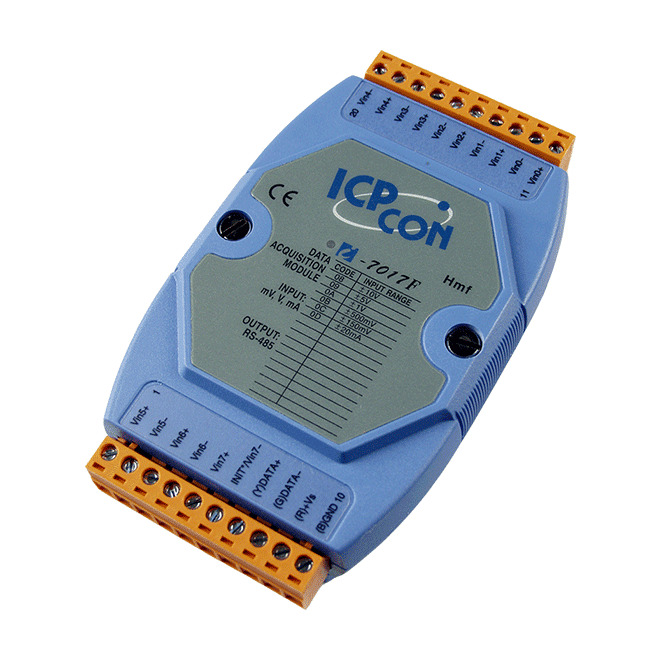

I-7017F CR is an 8-channel analog input module for RS-485 networks using the DCON protocol. Channels can be configured as eight differential inputs or as six differential and two single-ended inputs, selected by a jumper. Voltage and current signals are both accepted, with 16-bit resolution across all channels.
The fast sampling version allows the engineer to choose between a 60 Hz fast mode and a 10 Hz normal mode, trading accuracy against update rate. Current inputs need an optional external 125 Ω resistor, and open wire detection is available for 4 ~ 20 mA signals. Built-in dual watchdog functions and 3000 VDC intra-module isolation support reliable operation in automation and monitoring installations.
The blue-cover variant is supplied with the RoHS-compliant configuration. Its DIN-rail mounting, 10 ~ +30 VDC power input and -25 ~ +75 °C operating range suit control cabinets in building, factory and machine automation, as well as remote diagnosis and test equipment.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Analog inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 6 Differential and 2 Single-ended, or 8 Differential |
| Type | Voltage Current |
| Range | Voltage: ±150 mV, ±500 mV, ±1V, ±5 V, ±10 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR (Only for I-7017F) |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 60 Hz (Only for I-7017F) |
| Input Impedance | 20 MΩ |
| Common Voltage Protection | ±15 VDC |
| Overvoltage Protection | ±120 VDC |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.3 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
