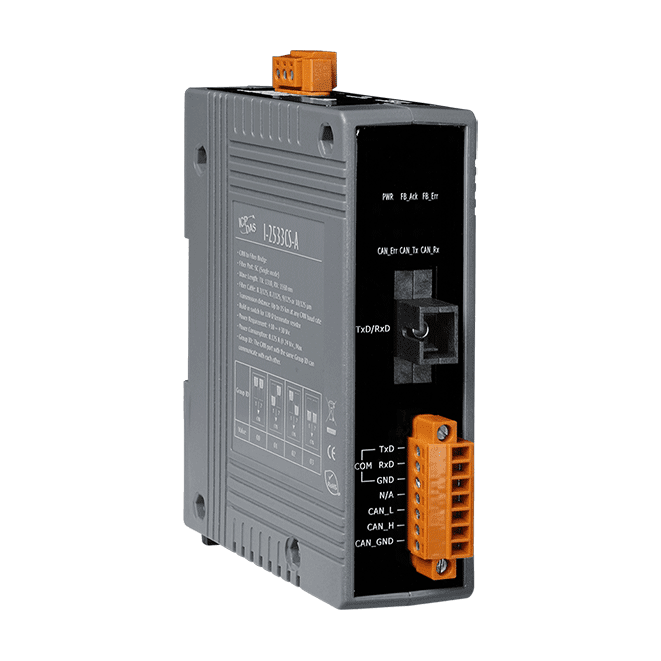

I-2533CS-A CAN to Single-mode Fibre Bridge, 15 km, SC Connector
Single-mode fibre bridge for CAN bus, extending a CAN network up to 15 km over one fibre using WDM. Must be ordered in a pair with the I-2533CS-B.
- Single-mode fibre link up to 15 km at any CAN baud rate, SC connector, TX 1310 nm and RX 1550 nm
- WDM operation so bidirectional CAN data travels over a single fibre
- Must be paired with the I-2533CS-B, as the two units work together
- 2500 Vrms isolation on the CAN side
- Supports CAN 2.0A and CAN 2.0B, fully compatible with ISO 11898-2
- Baud rate set by rotary switch or user-defined, 10 k to 1 M bps
3 002,54 kr per st.
| 1–9 st. | 3 002,54 kr | |
|---|---|---|
| 10–30 st. | 2 913,91 kr | −3 % |
| 31+ st. | 2 847,43 kr | −5 % |
Produktinformation "I-2533CS-A CAN to Single-mode Fibre Bridge, 15 km, SC Connector"
The I-2533CS-A is a local CAN bridge that links a CAN bus segment to a single-mode fibre link, so two CAN networks can be connected over long distances. It converts the electrical CAN signal to optical transmission, and Wavelength Division Multiplexing (WDM) lets bidirectional CAN traffic run over one fibre core, reducing the cost of cabling.
The bridge is supplied as one half of a matched pair and must be used with the I-2533CS-B at the far end. The maximum transmission distance of 15 km is stated to apply at any CAN baud rate, and the two networks can run at different baud rates. A bus error on one network does not affect the other, which helps keep faults contained.
The CAN side is electrically isolated at 2500 Vrms and supports CAN 2.0A and CAN 2.0B to ISO 11898-2. Configuration is handled by a rotary switch for standard baud rates, a user-defined baud rate option, a built-in 120 Ω terminating resistor switch and a utility tool for CAN message filtering over RS-232.
Applications
- Extending CAN bus networks over long single-mode fibre runs
- Connecting two CAN networks that operate at different baud rates
- Electrically isolating CAN segments in industrial control and monitoring systems
| Product type: | CAN bus fibre bridge |
|---|---|
| Interface: | CAN / SC single-mode fibre |
| Protocol: | CAN 2.0A, CAN 2.0B |
| Ports: | 1 |
| Isolation: | 2500 Vrms (CAN side) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 3 x CAN status 2 x Fiber status |
| COM Ports | |
| Ports | 1 x RS-232 (Utility Port) |
| Fiber | |
| Ports | Single-Mode; SC connector x 1; 100 Base-FX |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Wavelength | TX: 1310, RX: 1550 nm |
| TX Output | -14 dBm Min. , -8 dBm Max. |
| Transmission Distance | 15 km (9/125 μm recommended) |
| RX Sensitivity | -31 dBm Max. |
| RX Overload | -5 dBm Max. |
| Budget | 17 dBm |
| Propagation Delay | 190 us (*Note2) |
| CAN | |
| Ports | 1 |
| Specification | ISO 11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 2500 Vrms on the CAN side |
| Terminal Resistor | Switch for 120Ω terminal resistor |
| Filter | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33.0 x 126 x 101 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
