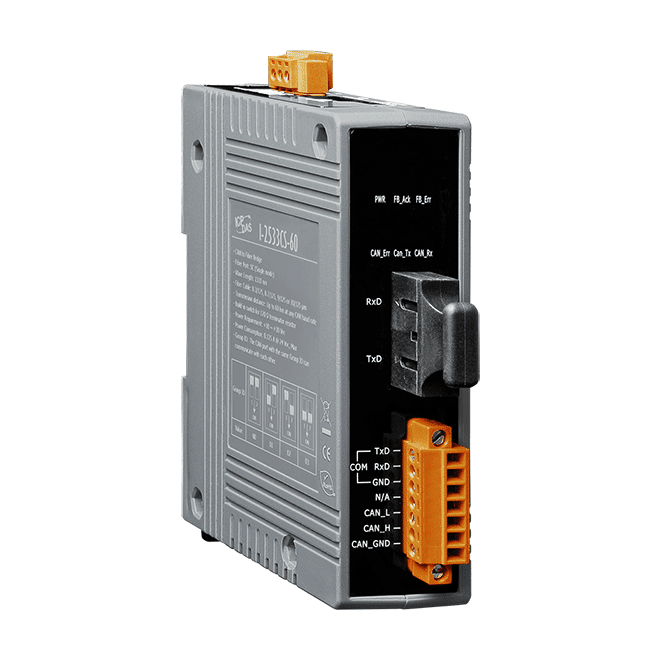

I-2533CS-60 CAN to Single-Mode Fibre Bridge, 60 km SC Connector
I-2533CS-60 bridges two CAN bus segments over single-mode fibre, with up to 60 km transmission at any CAN baud rate and 2500 Vrms isolation on the CAN side.
- Single-mode fibre link at 1310 nm on an SC connector, up to 60 km at any CAN baud rate
- 2500 Vrms isolation on the CAN side
- NXP TJA1042 transceiver, CAN 2.0A and 2.0B, fully compatible with ISO 11898-2
- Rotary switch for standard baud rates (10 k ~ 1 M bps) or user-defined baud rate
- Built-in switch for 120 Ω terminal resistor
- Fibre broken-line detection and utility tool for CAN message filter configuration
3 545,44 kr per st.
| 1–9 st. | 3 545,44 kr | |
|---|---|---|
| 10–30 st. | 3 445,72 kr | −3 % |
| 31+ st. | 3 368,17 kr | −5 % |
Produktinformation "I-2533CS-60 CAN to Single-Mode Fibre Bridge, 60 km SC Connector"
The I-2533CS-60 extends a CAN bus over single-mode fibre. It converts the electrical CAN signal to a 1310 nm optical link on an SC connector, so two CAN networks can be joined over up to 60 km. Because the link is independent of the CAN baud rate, the distance is not reduced when a faster rate is used, and a fault on one CAN network does not stop the other from operating.
Each unit uses an NXP TJA1042 transceiver and supports CAN 2.0A and CAN 2.0B to ISO 11898-2. The baud rate is set with a rotary switch or can be user-defined, and a built-in switch enables the 120 Ω terminal resistor. Fibre broken-line detection and a utility tool for CAN message filter configuration help with commissioning and fault finding.
- Suits point-to-point CAN links where copper cabling would be too long or electrically unsuitable
- Fibre link uses 8.3/125, 8.7/125, 9/125 or 10/125 μm cable, with 9/125 μm recommended for 60 km
- Mounts on DIN-rail with a removable terminal block
Applications
- Connecting two CAN bus systems over long single-mode fibre runs
- Remotely operated underwater vehicle (ROV) systems
| Product type: | CAN to single-mode fibre bridge |
|---|---|
| Interface: | CAN, SC single-mode fibre |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 1 CAN, 1 SC fibre, 1 RS-232 utility |
| Isolation: | 2500 Vrms (CAN side) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 3 x CAN status 2 x Fiber status |
| COM Ports | |
| Ports | 1 x RS-232 (Utility Port) |
| Fiber | |
| Ports | Single-Mode; SC Duplex connector x 1; 100 Base-FX |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Wavelength | 1310 nm |
| TX Output | -5 dBm Min. , 0 dBm Max. |
| Transmission Distance | 60 km (9/125 μm recommended) |
| RX Sensitivity | -35 dBm Max. |
| RX Overload | -5 dBm Max. |
| Budget | 30 dBm |
| Propagation Delay | 190 us (*Note1) |
| CAN | |
| Ports | 1 |
| Specification | ISO 11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 2500 Vrms on the CAN side |
| Terminal Resistor | Switch for 120Ω terminal resistor |
| Filter | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 126 x 101 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
