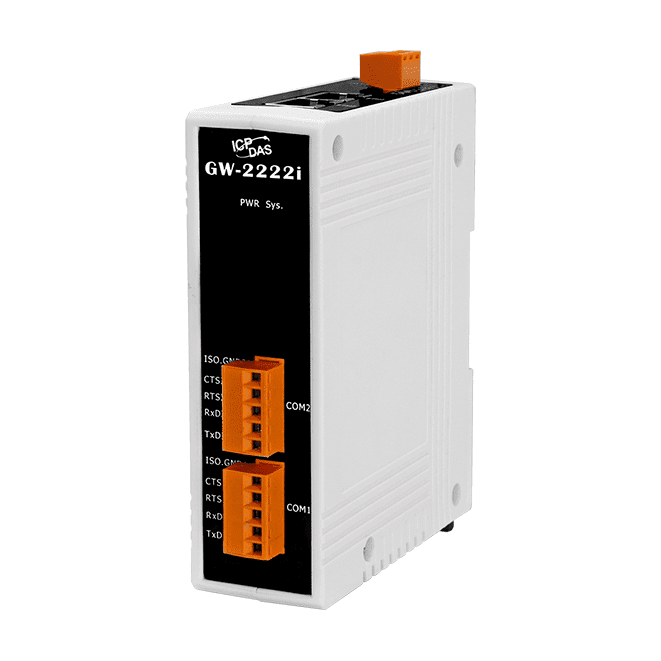

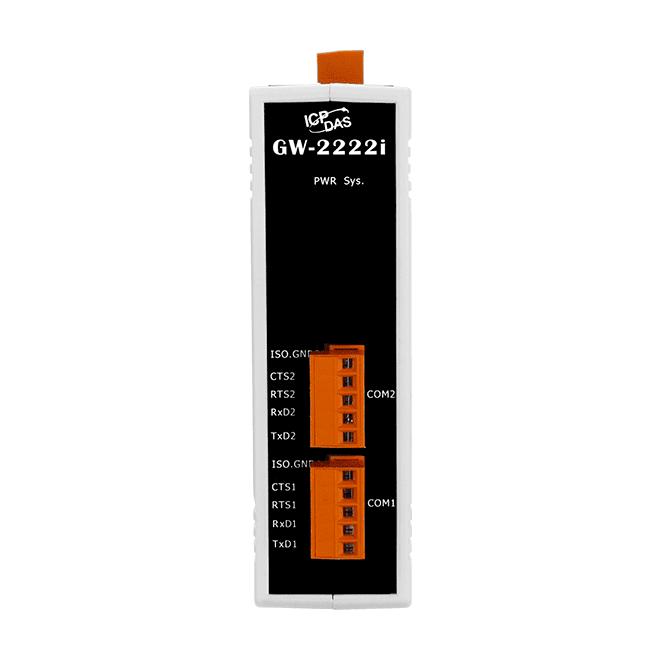

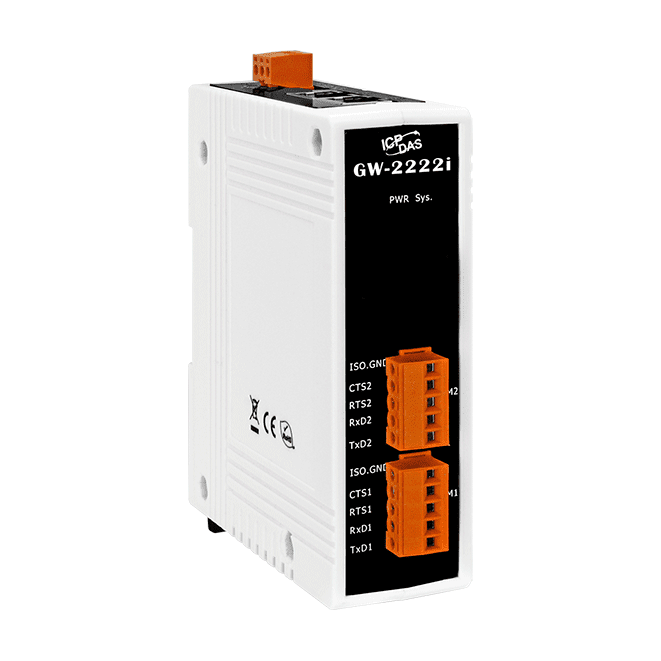

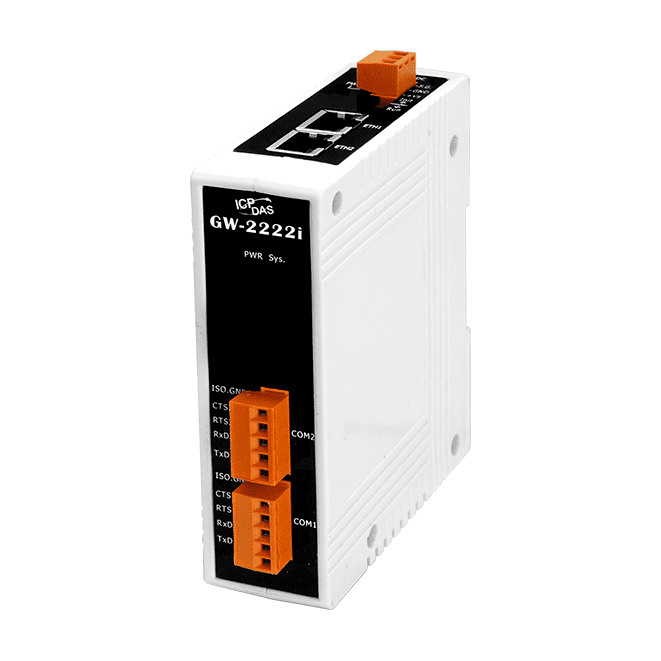

GW-2222i Modbus TCP to RTU/ASCII Gateway with 2-port Isolated RS-232
Modbus TCP to RTU/ASCII gateway with a 2-port Ethernet switch and two isolated RS-232 ports, letting Modbus TCP hosts reach serial devices over Ethernet.
- Modbus TCP/UDP master and slave, plus Modbus RTU/ASCII master and slave
- Up to 32 TCP connections (masters) per serial port
- Read-cache returns repeated responses faster and reduces serial port loading
- Two Ethernet ports for daisy-chain wiring, with PoE (IEEE 802.3af, Class 1) or DC terminal block power
- Two isolated RS-232 ports, up to 115200 bps, with 3000 VDC signal isolation
- Static IP or DHCP configuration, built-in web server and UDP Search device discovery
1 949,99 kr per st.
| 1–9 st. | 1 949,99 kr | |
|---|---|---|
| 10–30 st. | 1 883,52 kr | −3 % |
| 31+ st. | 1 850,28 kr | −5 % |
Produktinformation "GW-2222i Modbus TCP to RTU/ASCII Gateway with 2-port Isolated RS-232"
The GW-2222i is a Modbus TCP to RTU/ASCII gateway for connecting a Modbus TCP host to serial Modbus RTU or ASCII devices over Ethernet. It removes the cable length restrictions of legacy serial links, so existing serial instruments can be integrated into networked SCADA and supervisory systems without adding Ethernet capability to each device.
Two Ethernet ports allow daisy-chain wiring, which simplifies device placement and cuts switch infrastructure. The unit can also run in pair-connection, serial-bridge or serial-tunnel modes, routing data over TCP/IP between two serial Modbus devices. Power can come from PoE (IEEE 802.3af, Class 1) or a DC terminal block supplying +12 ~ 48 VDC.
A read-cache stores previous requests and responses, so repeated queries from multiple masters are answered immediately. This reduces load on the serial ports and improves response times and overall system stability. Configuration is handled through the built-in web server, which supports static IP or DHCP addressing.
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Gateway |
|---|---|
| Interface: | RS-232 / Ethernet |
| Protocol: | Modbus TCP |
| Ports: | 2 Ethernet, 2 RS-232 |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 33 mm x 126 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
