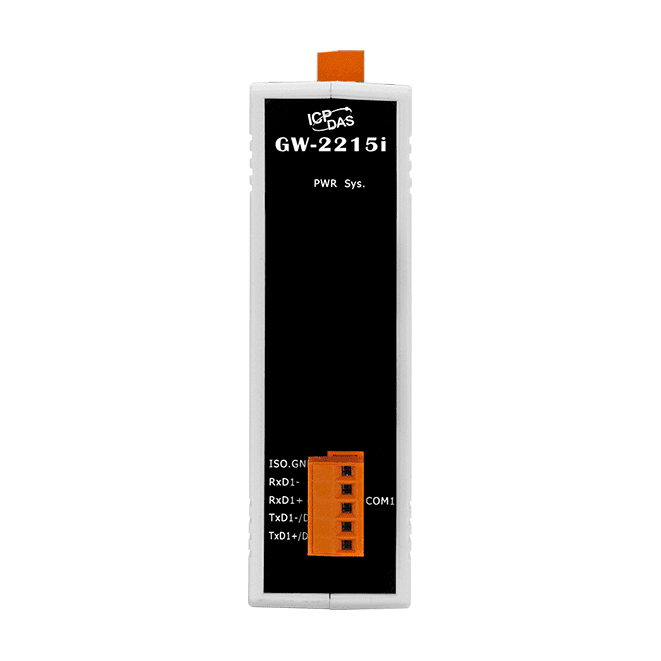

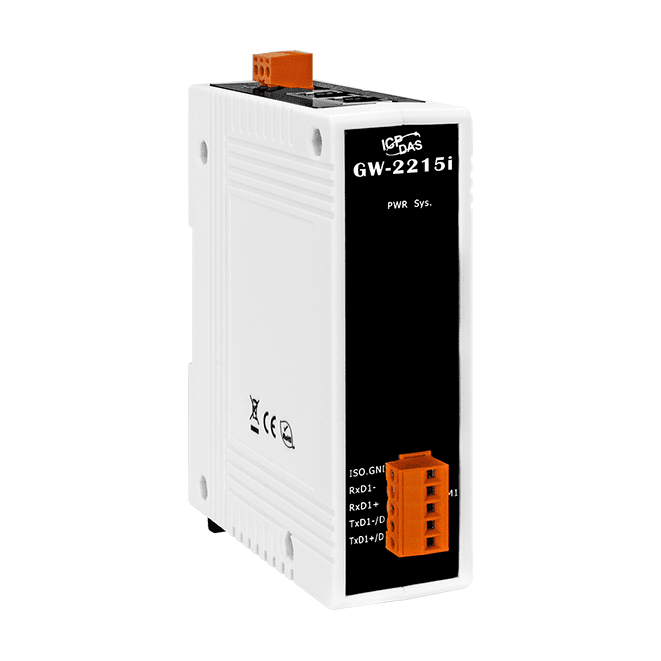

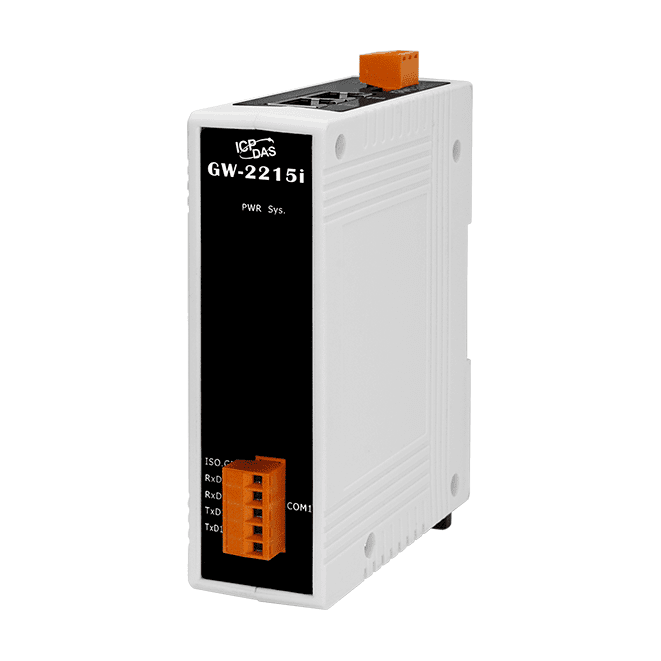

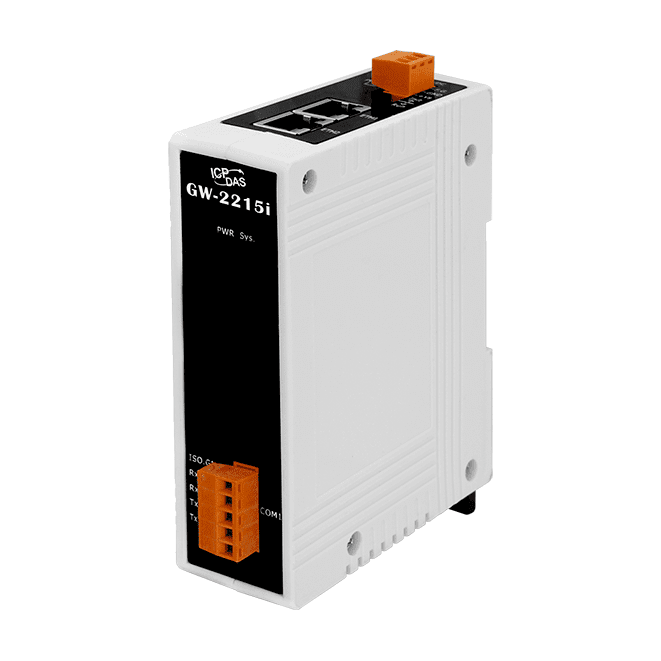

GW-2215i Modbus TCP to RTU/ASCII Gateway with 2-Port Ethernet Switch
GW-2215i CR bridges Modbus TCP/UDP hosts to serial Modbus RTU/ASCII devices over Ethernet, with a 2-port switch, PoE and an isolated RS-422/485 port.
- Modbus TCP/UDP master and slave to Modbus RTU/ASCII master and slave conversion
- Up to 32 TCP masters (connections) per serial port
- Read-cache for faster Modbus TCP/UDP responses and reduced serial port loading
- 2 x 10/100 Base-TX Ethernet ports with integrated switch for daisy-chaining
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power input
- 1 x isolated RS-422/485 port, 115200 bps max., with 1 KΩ bias resistor
1 750,56 kr per st.
| 1–9 st. | 1 750,56 kr | |
|---|---|---|
| 10–30 st. | 1 706,24 kr | −3 % |
| 31+ st. | 1 673,00 kr | −4 % |
Produktinformation "GW-2215i Modbus TCP to RTU/ASCII Gateway with 2-Port Ethernet Switch"
GW-2215i CR is a DIN-rail Modbus gateway that lets a Modbus TCP host reach serial Modbus RTU or ASCII devices across an Ethernet network, removing the cable length limits of legacy serial links. It can act as master or slave on both the TCP/UDP and the RTU/ASCII side, and it supports up to 32 TCP masters per serial port.
The built-in read cache stores recent requests and responses in the module's memory. When several SCADA or HMI masters poll the same slave, the cached reply is returned immediately, which reduces traffic on the serial bus and shortens TCP response times. Two Ethernet ports allow daisy-chaining, and the unit can be set to a static IP or DHCP through its web interface.
Power can come from a PoE switch (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC terminal block. The single RS-422/485 port is isolated, with 3000 VDC signal isolation, and the module operates from -25 ~ +75 °C. The ordering code GW-2215i CR is the RoHS-compliant variant listed in this shop.
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Modbus gateway |
|---|---|
| Interface: | Ethernet, RS-422/485 |
| Protocol: | Modbus RTU/ASCII, Modbus TCP |
| Ports: | 2 Ethernet, 1 RS-422/485 |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal |
| Power input: | PoE, +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 1 x RS-485/422 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 33 mm x 126 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
