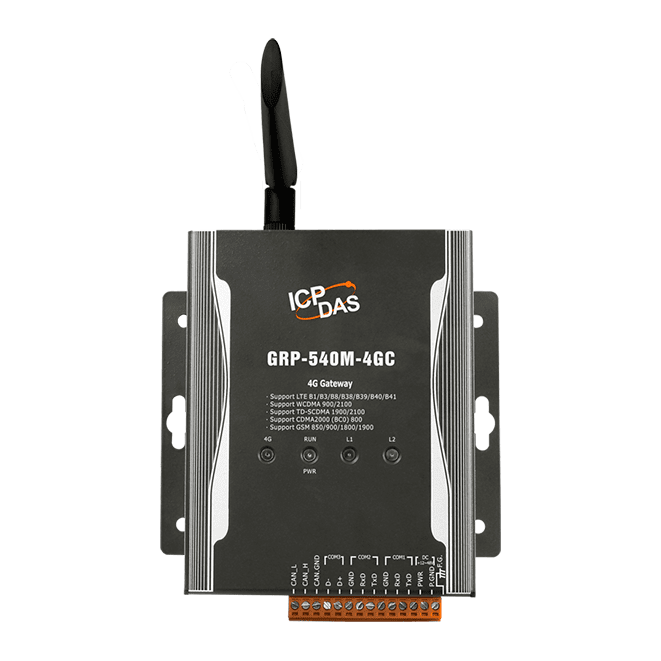

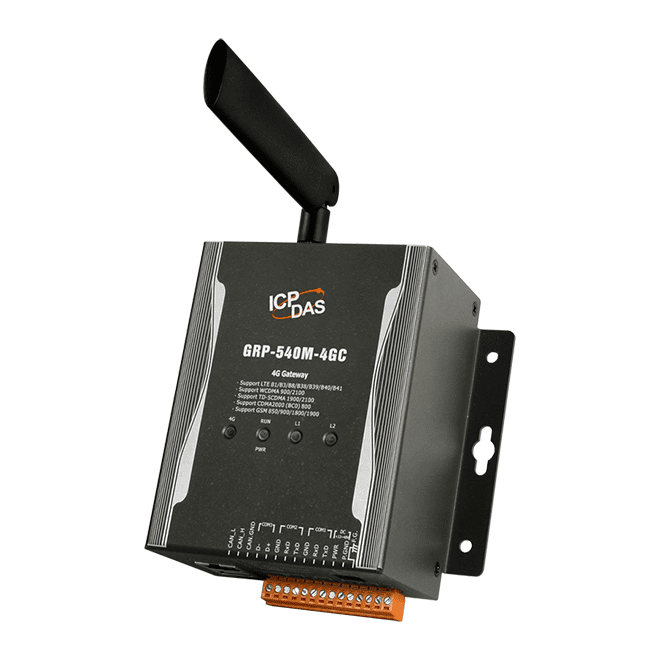

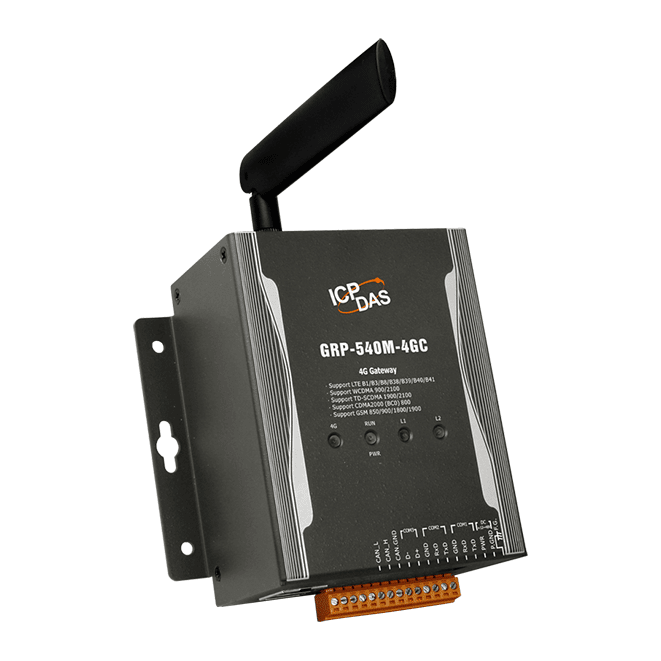

GRP-540M-4GC 4G Gateway with Ethernet, Serial and CAN, China Band
4G gateway bridging Ethernet, RS-232/RS-485 serial and CAN to cellular networks, with 32-channel GPS and a China frequency band. DIN-rail mountable.
- 4G FDD LTE and TDD LTE, with 3G WCDMA and 2G GSM fallback on the China frequency bands
- Ethernet, RS-232, RS-485 (3000VDC isolated) and CAN bus interfaces
- Serial port to 4G gateway function and 4G router function with port mapping
- 32-channel GPS with All-In-View tracking and NMEA 0183 output
- Micro SD card slot supporting up to 32GB SDHC for local storage
- Watchdog timer and metal casing for reliable operation
8 774,96 kr
Produktinformation "GRP-540M-4GC 4G Gateway with Ethernet, Serial and CAN, China Band"
GRP-540M-4GC CR is a cellular gateway for engineers who need to move data from Ethernet, serial and CAN devices over LTE, WCDMA, TD-SCDMA, CDMA2000 and GSM networks. This variant is supplied with the frequency band for China and is intended for Asia only.
The unit includes a 10/100Base-T(X) RJ-45 port, two RS-232 ports (one reserved for console and debug), an isolated RS-485 port and a CAN bus interface. It also provides a 4G router function, port mapping and serial-to-4G gateway operation. A 32-channel GPS receiver outputs NMEA 0183 data, so the unit can be used for position tracking. Wi-Fi is not included on this ordering code; it is available only on the GRP-540M-4GX-W.
The metal housing, watchdog timer and -25 ~ +75 °C operating range suit cabinet installations in harsh environments. The gateway mounts on DIN-rail or by screw.
Applications
- 4G router for remote sites
- Remote video monitoring
- Serial port to 4G gateway
- M2M data transfer from remote I/O and Modbus devices
- GPS tracking
| Product type: | 4G Gateway |
|---|---|
| Interface: | CAN, Ethernet, RS-232, RS-485 |
| Protocol: | NMEA 0183 |
| Ports: | 1 x RJ-45, 3 x serial |
| Isolation: | 3000 VDC (RS-485) |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / Screw |
| Housing: | Metal |
Specifikationer
| CPU Module | |
|---|---|
| CPU | ARM CPU |
| EEPROM | 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Storage Expansion | SD Card (Max. 32GB SDHC) |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x RUN/PWR 1 x 4G 1 x L1 1 x L2 |
| 2G System | |
| Data Transmission Rate | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| Coding Schemes | CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps |
| Frequency Band | WCDMA 900/2100 MHz TD-SCDMA 1900/2100 CDMA2000 (BC0) 800 |
| Power Class | Class 3 (250mW @ WCDMA/HSPA) |
| 4G System | |
| Data Transmission Rate | LTE Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B8 TDD LTE: B38/B39/B40/B41 |
| GPS/GNSS | |
| Protocol | NMEA 0183 |
| Support Channels | 32 |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Debug) 1 x RS-232 1 x RS-485 (3000VDC Isolated) |
| CAN | |
| Signal Line | CAN Bus (CAN_H, CAN_L) |
| Power | |
| Consumption | 4.8W ( 200 mA @ 24 VDC) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail / Screw |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
