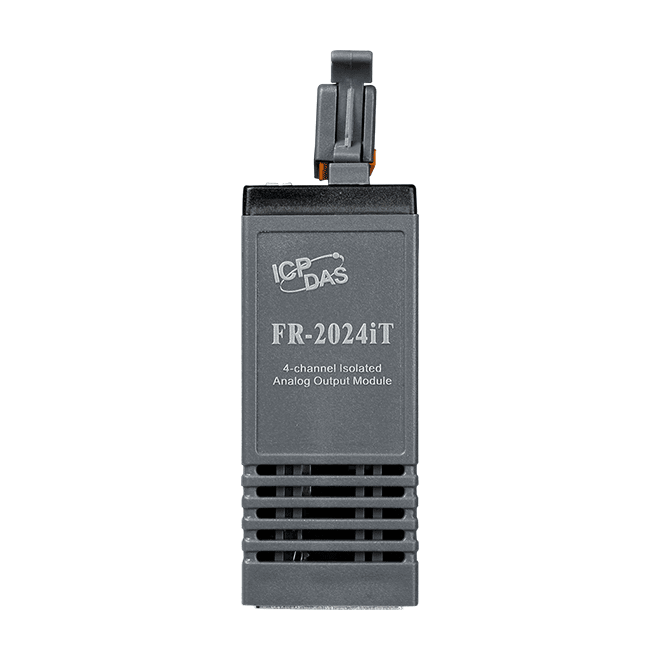

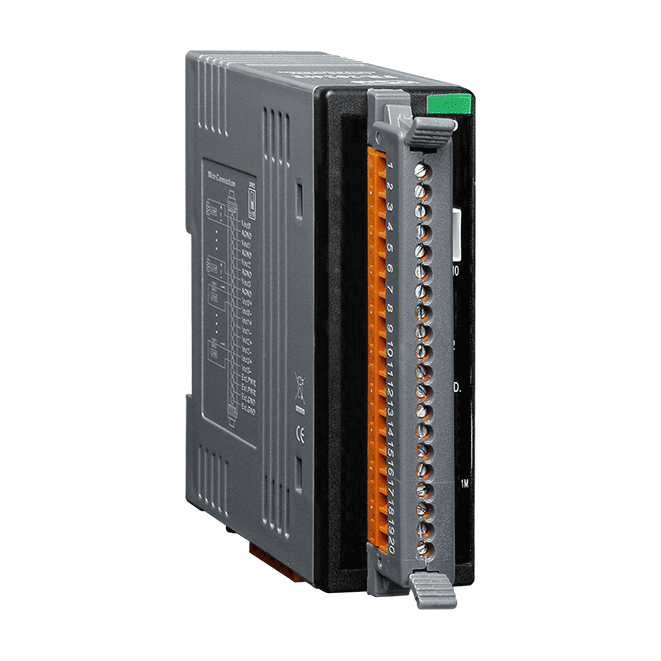

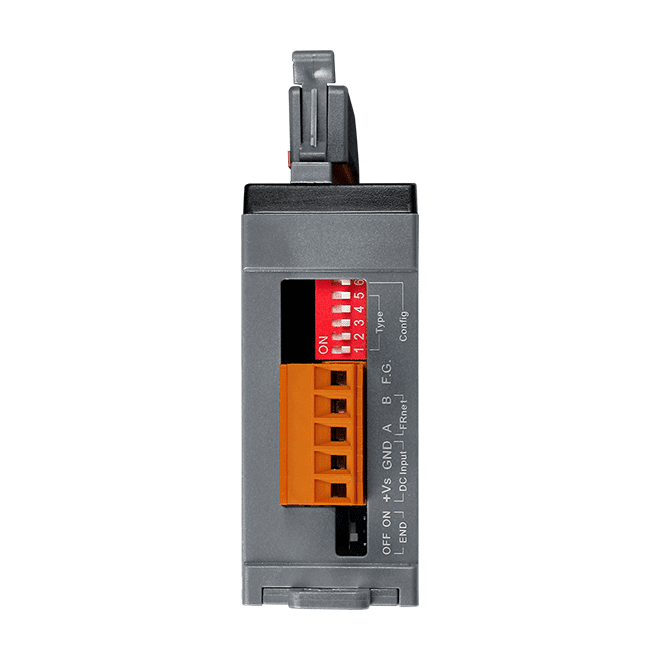

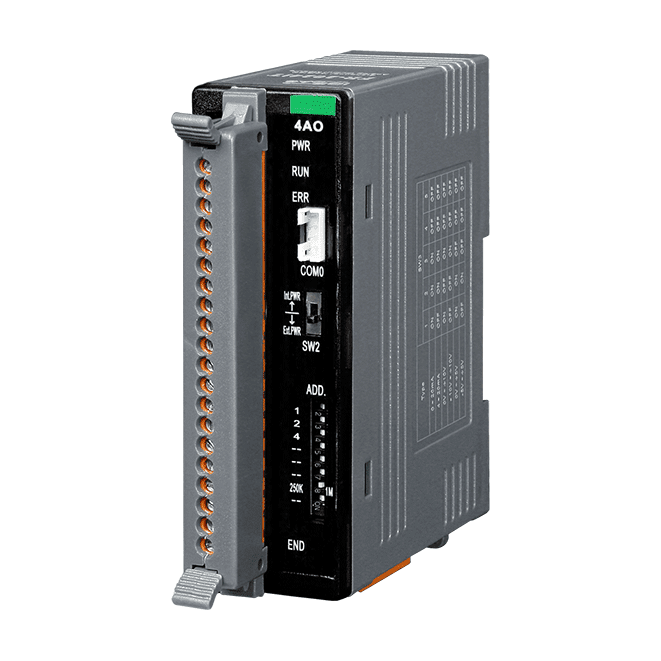

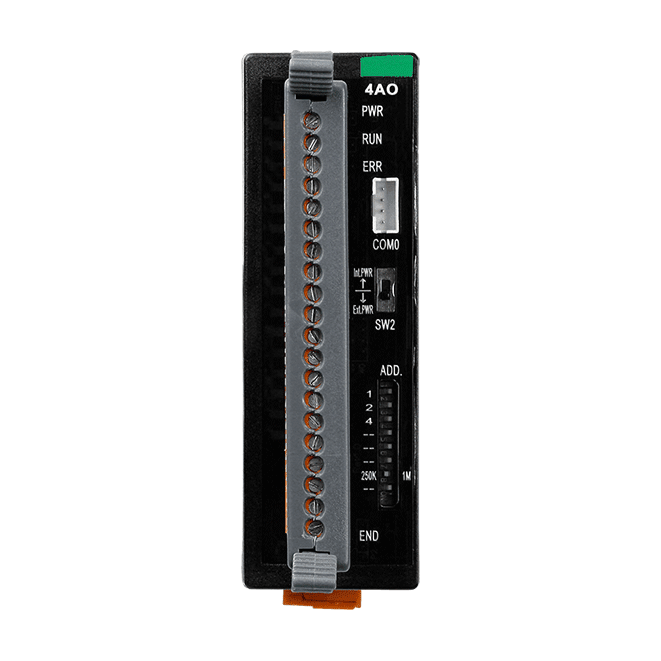

FR-2024iT FRnet I/O Module, 4-ch Isolated Analog Output
12-bit FRnet remote I/O module with four isolated analog outputs, selectable voltage or current ranges, and an isolated communication line for daisy-chained expansion from PC, PAC or PLC.
- Four isolated analog outputs with 12-bit resolution and ±0.1% of FSR accuracy
- Programmable voltage (0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V) and current (0 ~ 20 mA, 4 ~ 20 mA) output ranges
- Power-on value and safe value settings for defined output states
- FRnet interface with daisy-chaining, broadcast (1:n) transmission and fixed I/O scan time
- Selectable 250 kbps or 1 Mbps transfer speed via DIP switch
- Intra-module isolation of 2500 VDC
2 681,24 kr per st.
| 1–9 st. | 2 681,24 kr | |
|---|---|---|
| 10–30 st. | 2 603,68 kr | −3 % |
| 31+ st. | 2 548,29 kr | −5 % |
Produktinformation "FR-2024iT FRnet I/O Module, 4-ch Isolated Analog Output"
The FR-2024iT CR is a 12-bit FRnet analog output module with four channels. Each channel can be configured for voltage or current output, with ranges of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ 20 mA and 4 ~ 20 mA. Power-on and safe output values can be set, so outputs can take a defined state at start-up or when communication is lost.
Modules are chained over FRnet, so a single communication line can extend remote analog output control from a PC, PAC or PLC. The FRnet interface uses built-in wire-saving control, supports broadcast (1:n) transmission and offers a fixed I/O scan time with I/O synchronisation. Transfer speed is selectable between 250 kbps and 1 Mbps (default) by DIP switch, with a maximum distance of 400 m at 250 kbps and 100 m at 1 Mbps.
- Intra-module isolation rated at 2500 VDC
- Accuracy of ±0.1% of FSR with 12-bit resolution
- Power input of +10 VDC ~ +30 VDC, consuming 2.88 W maximum
- DIN-rail mounted plastic housing, operating range -25 ~ +75 °C
Applications
- Remote analog output control from PC, PAC and PLC systems
- Distributed analog actuator control over FRnet daisy chains
- Output duplication and broadcast control across multiple FRnet modules
| Product type: | Analog output module |
|---|---|
| Interface: | FRnet |
| Analog outputs: | 4 |
| Isolation: | 2500 VDC |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV contact for power liner |
| ESD (IEC 61000-4-2) | ±4 kV contact for power liner, communication line and each channel ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ± 3 kV for power liner |
| LED Indicators | |
| Status | Power, Communication Run, Communication Error, Terminal Resistor, Analog Output |
| Analog Output | |
| Channels | 4 |
| Type | Voltage Current |
| Range | Current: 0 ~ 20 mA, 4 ~ 20 mA Voltage: 0 ~ 5V, ±5 V, 0 ~ 10 V, ±10 V |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Zero Drift | Voltage: ±30 μV/ °C Current: ±0.2 μA/ °C |
| Span Drift | ±20 ppm/°C |
| DA Output Response Time | 10 ms per channel |
| Programmable Output Slope | 0.125 to 2048 mA/second 0.0625 to 1024 V/second |
| Voltage Output Capability | 10 V@20 mA |
| Current Load Resistance | External +24V : 1050 Ω |
| Power-on Value | Yes |
| Safe Value | Yes |
| FRnet | |
| Wire Cable | Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may be changed |
| Transfer Speed | 250 kbps and 1Mbps (Default) DIP Switch Selectable |
| Transfer Distance | Max. 400 m for speed 250 K Max. 100 m for speed 1M (Default) |
| Cyclic Time | 2.88 ms for speed 250 K 0.72 ms for speed 1 M (Default) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 2.88 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 102 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
