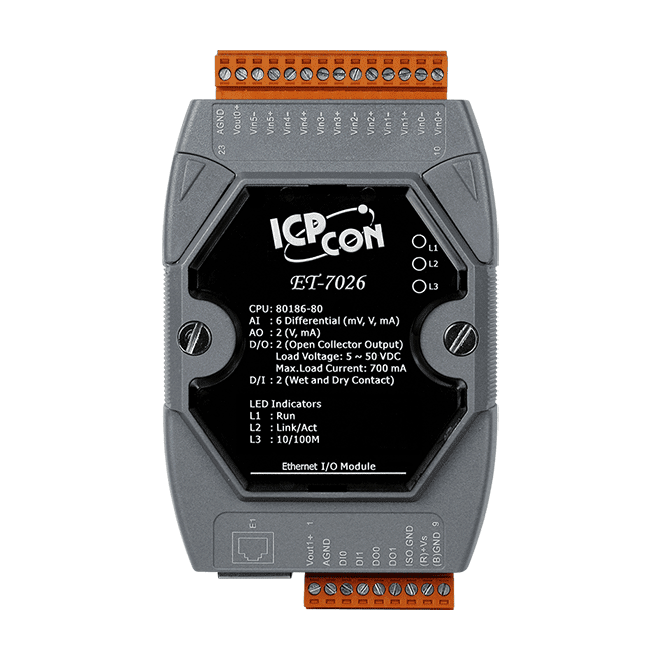

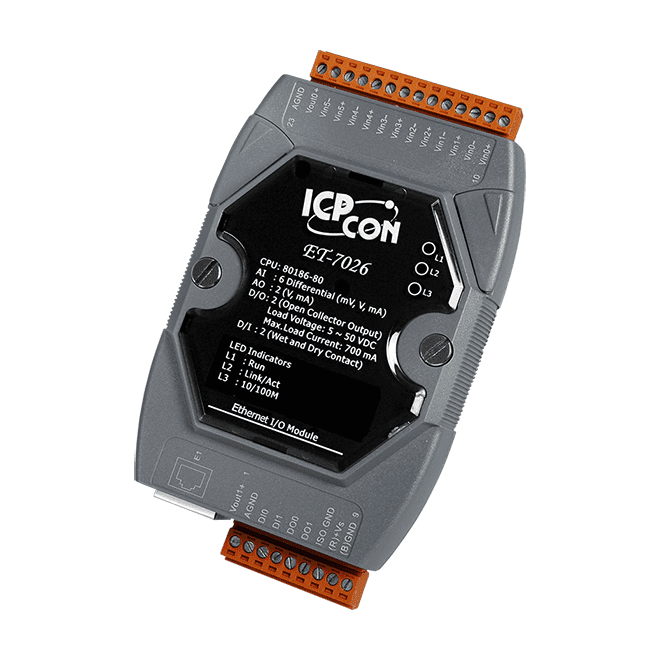

ET-7026 Ethernet I/O Module, 6-ch AI, 2-ch AO, 2-ch DI, 2-ch DO
Modbus TCP/UDP Ethernet I/O module combining 6 analog inputs, 2 analog outputs, 2 digital inputs and 2 digital outputs for remote monitoring and control.
- Six differential analogue inputs with individually configurable voltage and current ranges
- Two analogue outputs, jumper-selectable as voltage or current
- Two digital inputs with counter function and two isolated open-collector digital outputs
- Modbus TCP and Modbus UDP support over a single 10/100 Base-TX RJ-45 port
- Built-in web server and web HMI for configuration and monitoring
- Dual watchdog (module and communication) and programmable power-on and safe values
3 722,71 kr per st.
| 1–9 st. | 3 722,71 kr | |
|---|---|---|
| 10–30 st. | 3 611,92 kr | −3 % |
| 31+ st. | 3 534,36 kr | −5 % |
Produktinformation "ET-7026 Ethernet I/O Module, 6-ch AI, 2-ch AO, 2-ch DI, 2-ch DO"
The ET-7026 CR is a multi-function Ethernet I/O module that brings analog and digital signals onto a single network node. Its six differential analogue inputs and two analogue outputs cover a wide range of process signals, while two digital inputs (with counter capability) and two open-collector digital outputs handle discrete control tasks, all from one DIN-rail unit.
Each analogue input can be configured for its own range, covering voltage and current options from ±500 mV up to ±10 V and 4 ~ 20 mA, with 240 Vrms overvoltage protection. Input and output types are selected by jumper position, so the same module suits a range of field devices. Each channel can be set up individually.
The module suits engineers who need Modbus TCP or Modbus UDP access without a separate controller at the I/O point. A built-in web server and web HMI support setup and monitoring, while the dual watchdog, programmable power-on and safe values, and I/O pair connection help maintain predictable behaviour during faults.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Analog inputs: | 6 |
| Analog outputs: | 2 |
| Ports: | 1 |
| Isolation: | Ethernet 1500 VDC, I/O 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| Analog Input | |
| Channels | 6 (Differential) |
| Type | Voltage Current |
| Range | ±500 mV, ±1V, ±5 V, ±10 V 0 ~ 20 mA, ±20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 50 Hz (total channels) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA @ 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 ~ 20 mA only |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Analog Output | |
| Channels | 2 |
| Type | Voltage Current |
| Range | +0 ~ +5 VDC, ±5 VDC, +0 ~ +10 VDC, ±10 VDC 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Dry Contact Wet Contact |
| ON Voltage Level | Dry: Close to GND Wet: +1 VDC (max.) |
| OFF Voltage Level | Dry: Open Wet: +3.5 ~ +30 VDC |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Overvoltage Protection | +30 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.6 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
