ECAT-M808-8AX/S PCI Express EtherCAT MainDevice Board, 8-Axis Motion Control
PCI Express EtherCAT MainDevice board for up to 8-axis motion control, with 13 digital inputs, 13 digital outputs and a 2-axis encoder interface. Supplied with DN-26 and cables.
- Up to 8-axis motion control on a PCI Express x1 board
- EtherCAT cycle time up to 0.5 ms
- Synchronised motion with E-GEAR, E-CAM, virtual axes and multi-axis linear interpolation
- 13 digital inputs and 13 digital outputs onboard
- 2 encoder interfaces with compare trigger outputs
- Second CPU keeps EtherCAT communication and process recipe running during an OS or program crash
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "ECAT-M808-8AX/S PCI Express EtherCAT MainDevice Board, 8-Axis Motion Control"

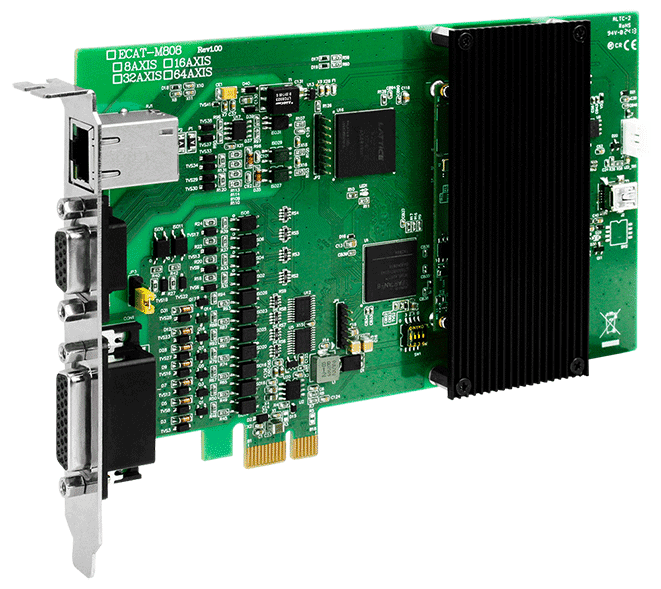

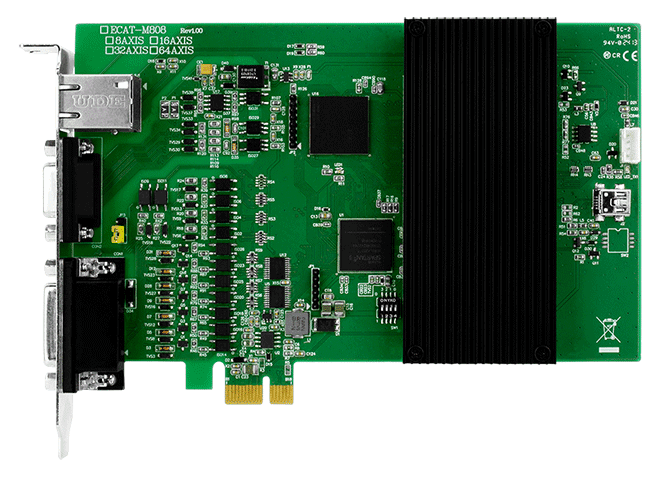

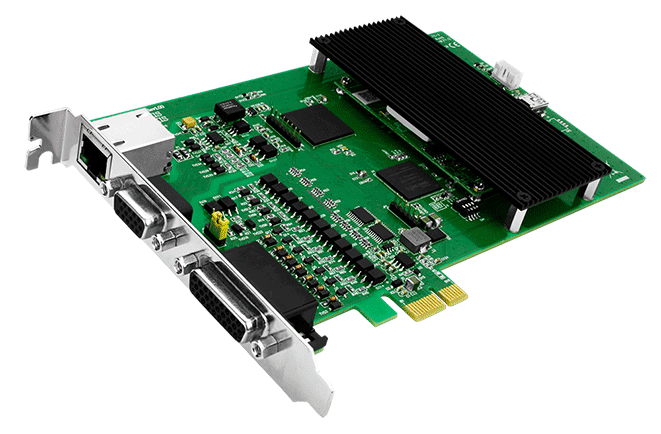

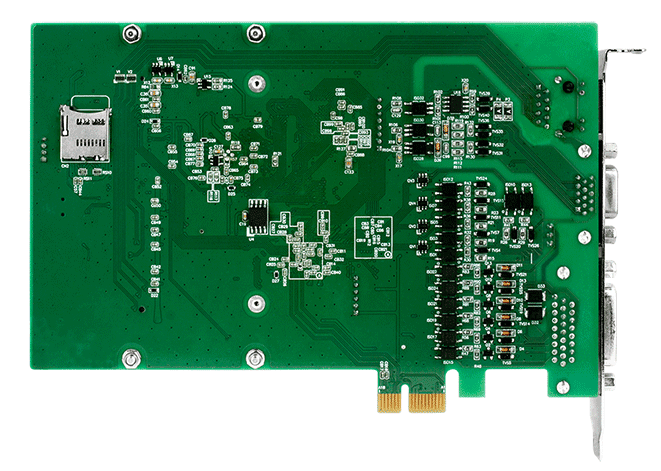

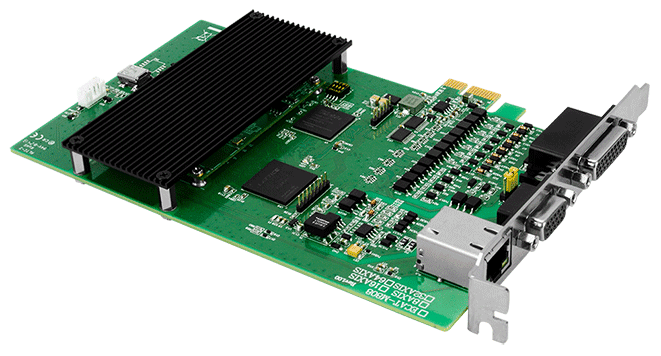

The ECAT-M808-8AX/S CR is a PCI Express EtherCAT MainDevice card for PC-based motion and I/O applications. It supports up to 8 axes and up to 512 EtherCAT slaves, and its onboard CPU handles the multi-axis motion and I/O functions, reducing the processing load on the host PC.
Onboard I/O comprises 13 digital inputs (wet contact, sink/source) and 13 open-collector sink outputs, plus two encoder interfaces with compare trigger outputs. Synchronised motion modes including E-GEAR and E-CAM, virtual axes and multi-axis linear interpolation are available for coordinated machine control.

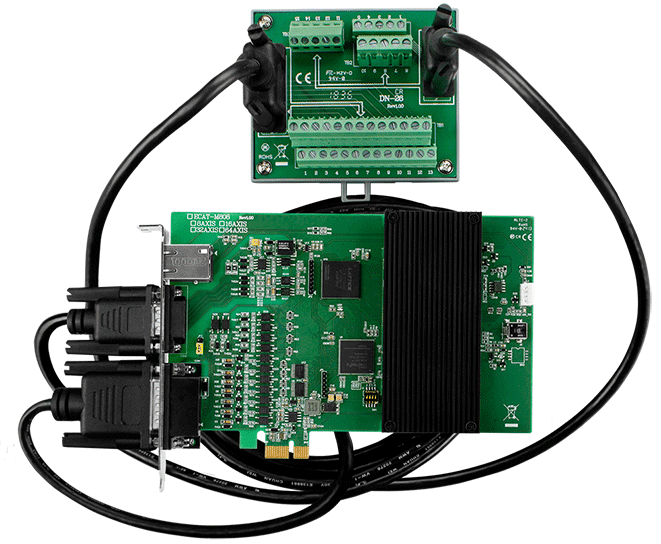

This variant is supplied with a DN-26 and cables, so it is ready to connect on delivery. A second CPU provides EtherCAT communication retention, helping keep the network and process recipe running even if the operating system or application crashes.
Applications
- Motion control
- I/O control
- Data acquisition system
| Product type: | EtherCAT MainDevice board |
|---|---|
| Interface: | PCI Express x1 |
| Protocol: | EtherCAT |
| Digital inputs: | 13 |
| Digital outputs: | 13 |
| Ports: | 1 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | RJ45 x1 DB-26 (Female) DB-15 (Female) |
| Encoder Input | |
| No. of Axes | 2 |
| Type | Quadrant, CW/CCW, Pulse/Dir. |
| Resolution | 32-bit |
| Response Speed | 1 MHz |
| Compare Trigger Output | 2-ch |
| Digital Input | |
| Channels | 13 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +19 V ~ + 24 V |
| OFF Voltage Level | +11 V Max. |
| Isolation | 3000 VDC |
| Digital Output | |
| Channels | 13 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +24 V |
| Load Current | 100 mA/ch |
| Isolation | 3000 Vrms |
| PC Bus | |
| Type | PCI Express x1 |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Axes | ECAT-M808-8AX Max. 8 ECAT-M808-16AX Max. 16 ECAT-M808-32AX Max. 32 ECAT-M808-64AX Max. 64 ECAT-M808-8AX/S Max. 8 ECAT-M808-16AX/S Max. 16 ECAT-M808-32AX/S Max. 32 ECAT-M808-64AX/S Max. 64 |
| No. of Nodes | Max. 512 |
| Data Transfer Medium | Ethernet Cable (Min. CAT 5e), Shielded |
| Mechanical | |
| Dimensions (mm) | 135 x 192 x 21.5 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 0 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
