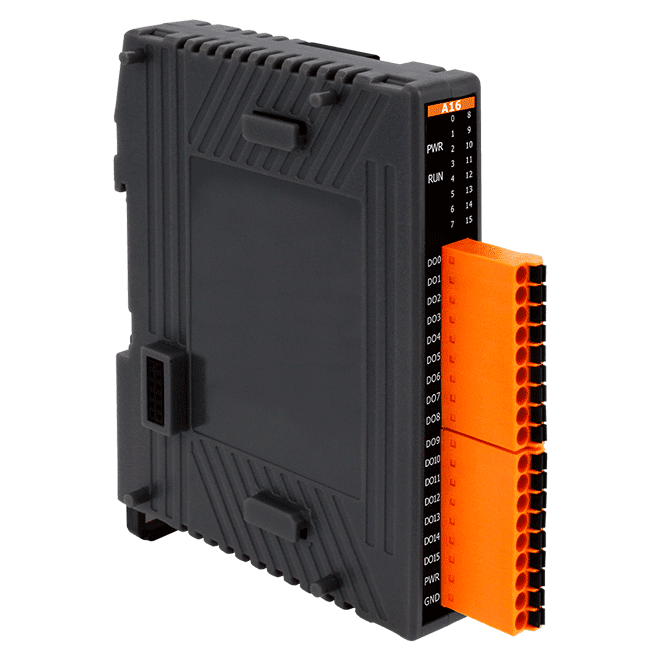

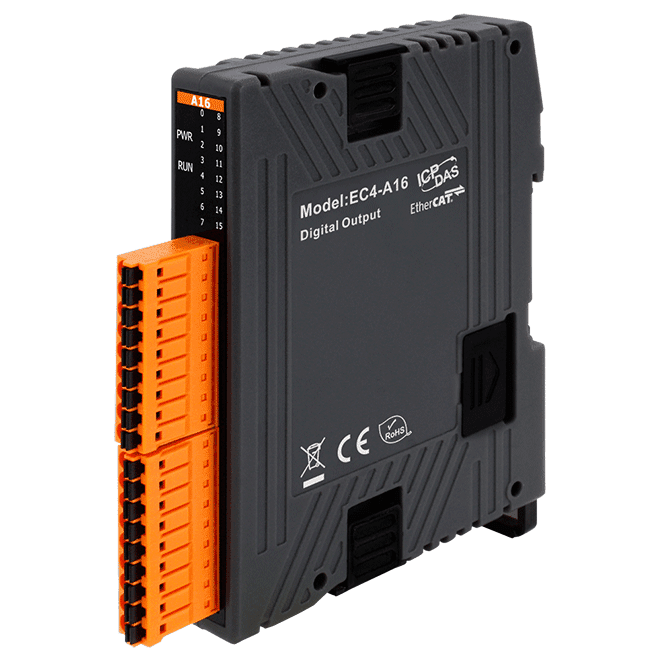

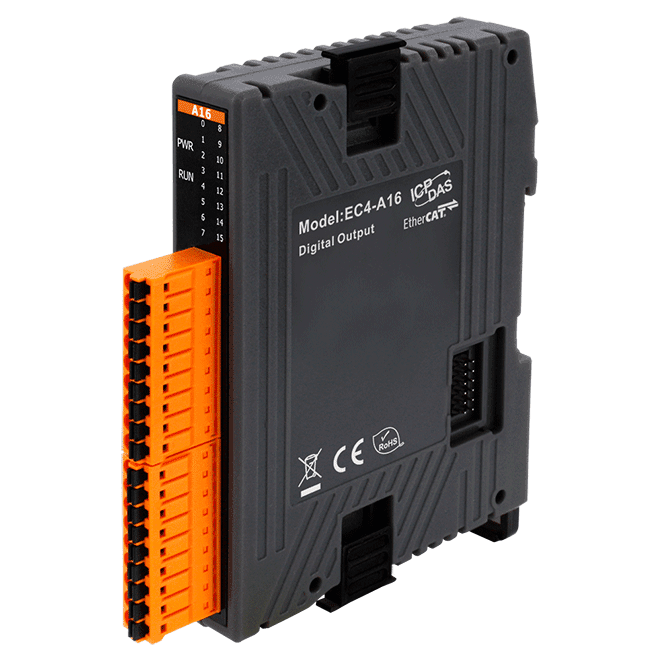

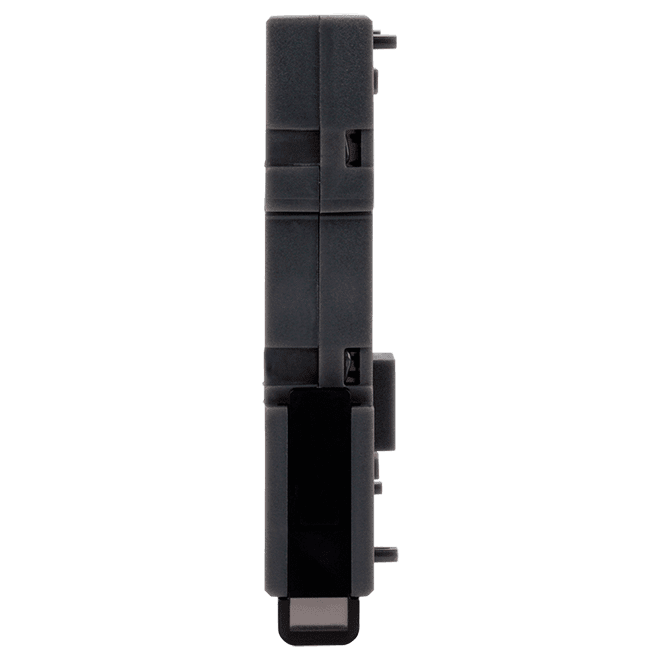

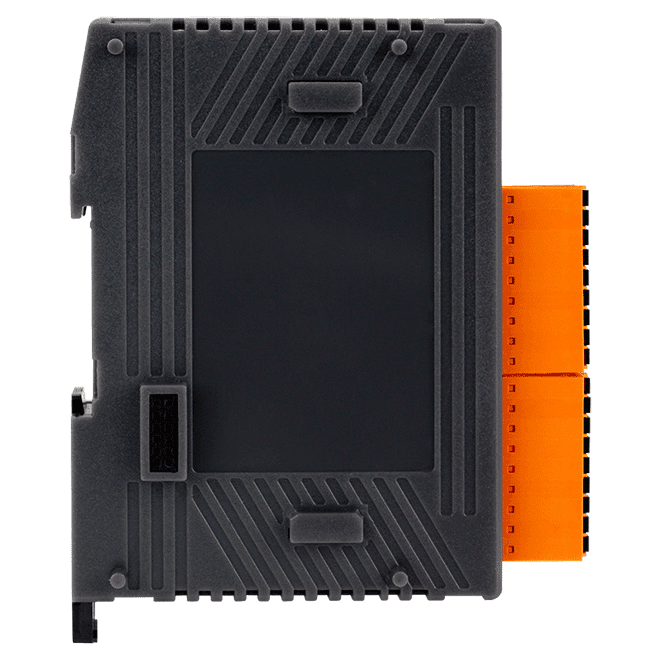

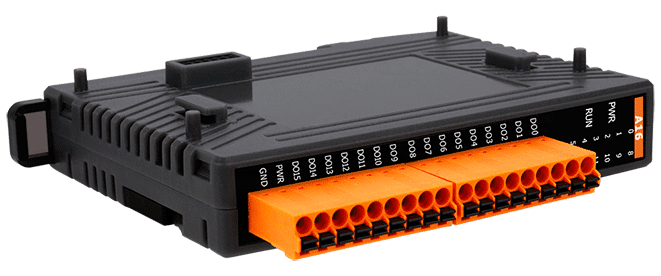

EC4-A16 EtherCAT SubDevice Slim Module, 16-ch Isolated Source-type DO
Slim EtherCAT SubDevice with 16 isolated source-type digital outputs, 500 mA per channel, LED status indication and 100 μs cycle time support.
- 16 isolated source-type N-MOS digital outputs with internal flywheel diode
- 500 mA per channel, load voltage +10 VDC to +40 VDC
- 3000 VDC isolation
- EtherCAT interface with 100 μs cycle time and distributed clocks support
- Configurable power-on output values and selectable output hold on state machine change
- LED indicators for I/O status and removable terminal block connector
1 606,53 kr per st.
| 1–9 st. | 1 606,53 kr | |
|---|---|---|
| 10–30 st. | 1 551,13 kr | −3 % |
| 31+ st. | 1 528,97 kr | −5 % |
Produktinformation "EC4-A16 EtherCAT SubDevice Slim Module, 16-ch Isolated Source-type DO"
The EC4-A16 is a slim EtherCAT SubDevice that adds 16 isolated digital outputs to an EtherCAT network. Each channel is a source-type N-MOS output with an internal flywheel diode, rated at 500 mA per channel for load voltages from +10 VDC to +40 VDC. The module is intended for engineers who need dense digital output control on EtherCAT without a large footprint.

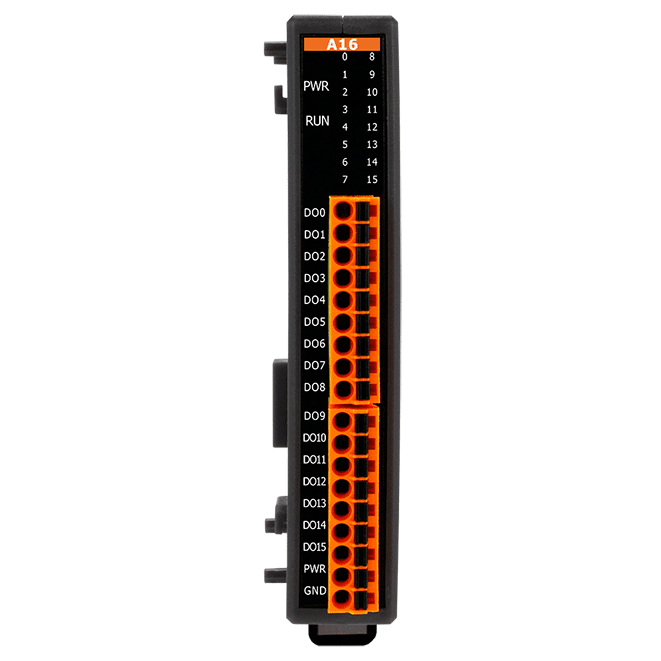

The module supports a 100 μs cycle time with distributed clocks. Power-on output values are configurable, and you can choose whether outputs keep their values when the EtherCAT state machine changes. The current output state of each channel is shown by LED indicators on the enclosure, and the removable terminal block simplifies wiring and replacement.
The housing measures 17.5 x 108 x 73 mm (W x L x D, excluding terminals) and can be installed on a DIN rail or mounted on a wall. The module has passed the conformance testing tool and is stated to be compatible with various standard EtherCAT MainDevices. It carries CE, UKCA, RoHS and WEEE markings.
Applications
- Distributed digital output control on EtherCAT networks
| Product type: | Remote I/O module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Digital outputs: | 16 |
| Isolation: | 3000 VDC |
| Power input: | +24 VDC |
| Operating temperature: | -25 ~ +70 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±8KV(Air for Random Point) |
| Digital Output | |
| Channels | 16 |
| Type | N-MOS (Source), with internal flywheel diode |
| Load Voltage | +10VDC ~ +40VDC |
| Load Current | 500 mA/Channel (Source) |
| Isolation | 3000VDC |
| EtherCAT | |
| Cycle Time | 100 μs |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +24 VDC |
| Consumption | 1.5 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 17.5 x 108 x 73 (W x L x D)(excluding terminals) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
