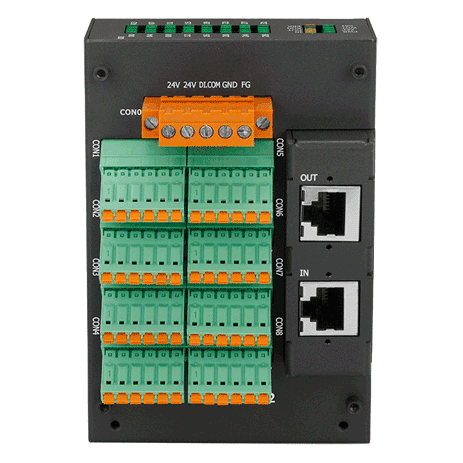

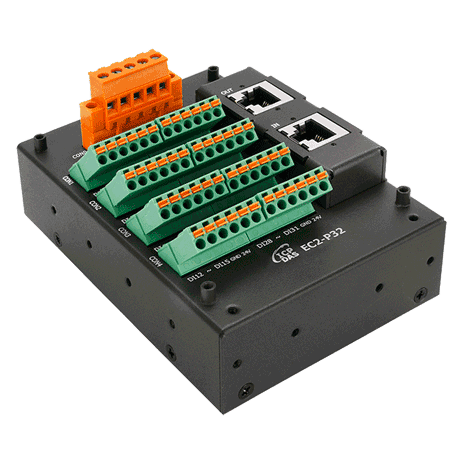

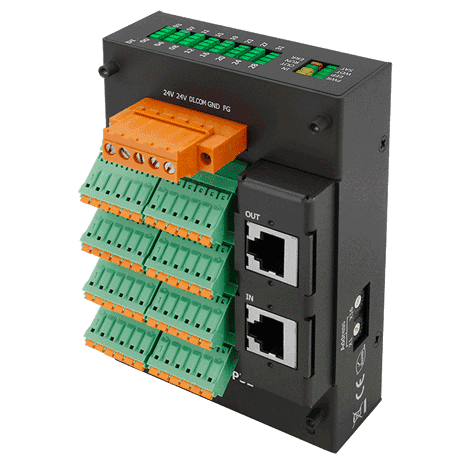

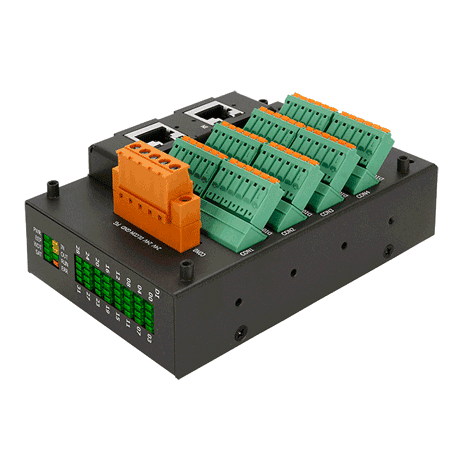

EC2-P32 EtherCAT Slave I/O Module, 32-ch Isolated Digital Input
EtherCAT slave module with 32 isolated digital inputs, two RJ-45 bus ports for daisy-chain wiring, and a removable terminal block for scalable distributed I/O.
- 32 isolated digital inputs, rated 3750 VDC isolation
- Wet (sink and source) and dry (source) contact support
- Two RJ-45 EtherCAT ports with daisy-chain connection
- Up to 100 m between stations (100BASE-TX)
- Process data and LED indicators for input status
- On-the-fly processing with distributed clocks and 100 us cycle time
2 492,89 kr per st.
| 1–9 st. | 2 492,89 kr | |
|---|---|---|
| 10–30 st. | 2 415,33 kr | −3 % |
| 31+ st. | 2 371,01 kr | −5 % |
Produktinformation "EC2-P32 EtherCAT Slave I/O Module, 32-ch Isolated Digital Input"
EC2-P32 is an EtherCAT slave I/O module that brings 32 isolated digital inputs onto an EtherCAT network. Its two RJ-45 ports allow modules to be daisy-chained, reducing cabling as the number of I/O points grows.
Input states are available as process data for the EtherCAT master and are also shown by LED indicators on the module, so status can be checked locally during commissioning and fault finding. The module supports on-the-fly processing and distributed clocks, with a 100 us cycle time, and the inputs include a low-pass filter. Each input is isolated to 3750 VDC.

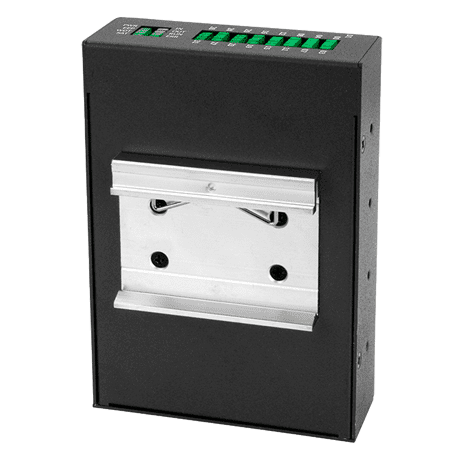

Choose the EC2-P32 when you need a compact, DIN-rail or wall-mounted input station with 32 channels, supporting both wet (sink and source) and dry (source) contacts.
Applications
- Distributed digital input acquisition on EtherCAT networks
| Product type: | Remote I/O |
|---|---|
| Interface: | 2 x RJ-45 |
| Protocol: | EtherCAT |
| Digital inputs: | 32 |
| Ports: | 2 |
| Isolation: | 3750 VDC |
| Power input: | +24 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal, IP40 |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Input | |
| Channels | 32 |
| Type | Wet (Sink & Source )/ Dry (Source) |
| ON Voltage Level | Wet Contact: +10 V ~ +24 V Dry Contact: Close to GND |
| OFF Voltage Level | Wet Contact :+4 V Max. Dry Contact: Open |
| Isolation | 3750 VDC |
| EtherCAT | |
| Ports | EtherCAT, 2 X RJ45 |
| Node ID | Up to 256 |
| Distance Between Stations | Max. 100m (100Base-Tx) |
| Data Transfer Medium | Ethernet/EtherCAT cable(min. CAT5), shielded |
| Cycle Time | 100 us |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +24 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Metal with IP40 |
| Dimensions (mm) | 83 x 122 x 65 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
