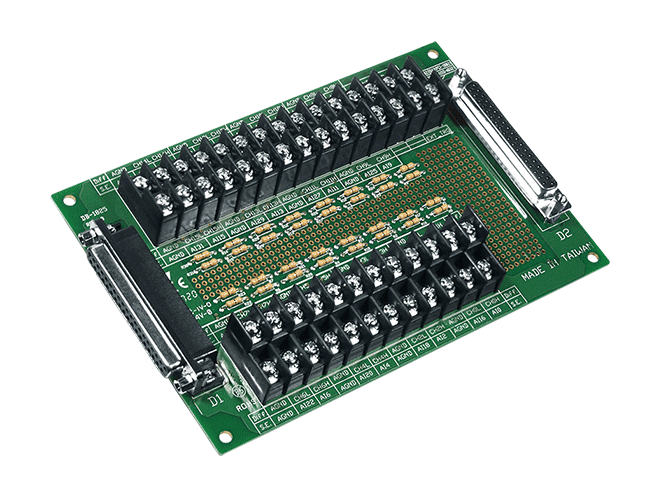

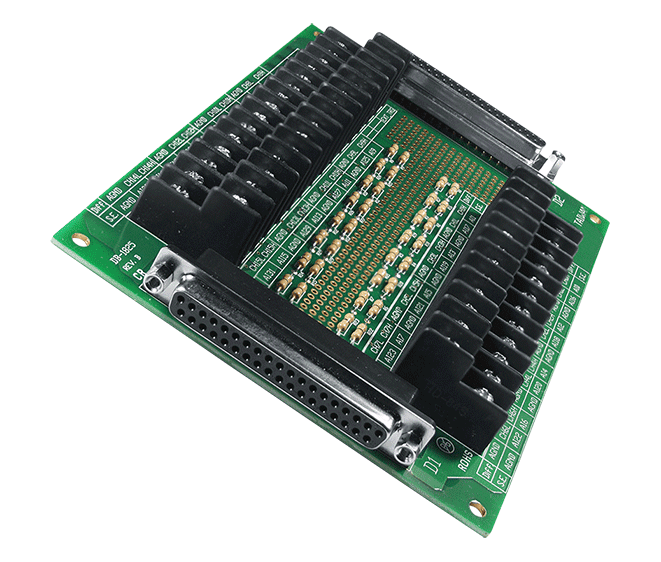

DB-1825/2/DIN DB37 Screw Terminal Board with DIN-rail Mounting
DB37 to screw terminal board with DIN-rail mounting for PCI-1202U, 1602U, 1802U, 822 and 826 DAQ cards. Supplied with a 2 m DB37 male-to-male cable (CA-3720).
- Screw terminal board for 37-pin DB37 cable I/O with PCI-1202U, 1602U, 1802U, 822 and 826 series cards
- 32 single-ended or 16 differential channels
- DIN-rail mounting for cabinet installation
- Supplied with CA-3720 DB37 male-to-male cable, 45º, 2 m
- Blank pads for break detection, low-pass filter, current shunt and voltage divider (manual soldering)
- Operating temperature 0 to +60 °C; storage -30 to +80 °C
864,20 kr per st.
| 1–9 st. | 864,20 kr | |
|---|---|---|
| 10–30 st. | 842,04 kr | −3 % |
| 31+ st. | 819,88 kr | −5 % |
Produktinformation "DB-1825/2/DIN DB37 Screw Terminal Board with DIN-rail Mounting"
DB-1825/2/DIN connects a 37-pin DB37 cable from a PCI-1202U, 1602U, 1802U, 822 or 826 data acquisition card to a screw terminal board, giving engineers a practical way to wire field signals without building their own breakout. It provides 32 single-ended or 16 differential channels.
This DIN-rail variant suits panel and cabinet installations. The board is supplied with a CA-3720 DB37 male-to-male cable, 45º, 2 m long, so it can be connected to the DAQ card straight away.
Blank pads on the board allow break detection, a low-pass filter, a current shunt and a voltage divider to be added by manual soldering where the application requires them. The board is CE, UKCA, FCC, RoHS and WEEE certified, and is rated for 0 to +60 °C operation.
Applications
- Wiring field signals to PCI-1202U, 1602U, 1802U, 822 and 826 data acquisition cards
- Cabinet-mounted DAQ wiring on DIN rail
| Product type: | DAQ daughter board |
|---|---|
| Interface: | DB37 |
| Analog inputs: | 32 SE / 16 Diff |
| Ports: | 37-pin |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | DIN-rail |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 170 mm x 114 mm |
| Environment | |
| Operating Temperature | 0~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
