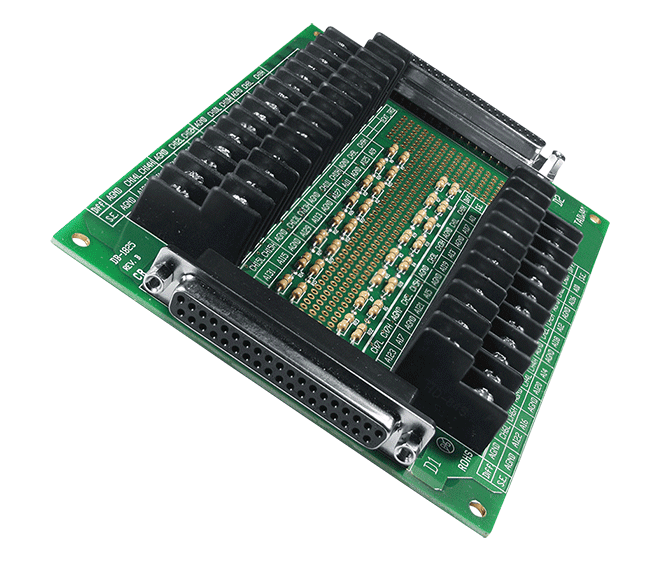

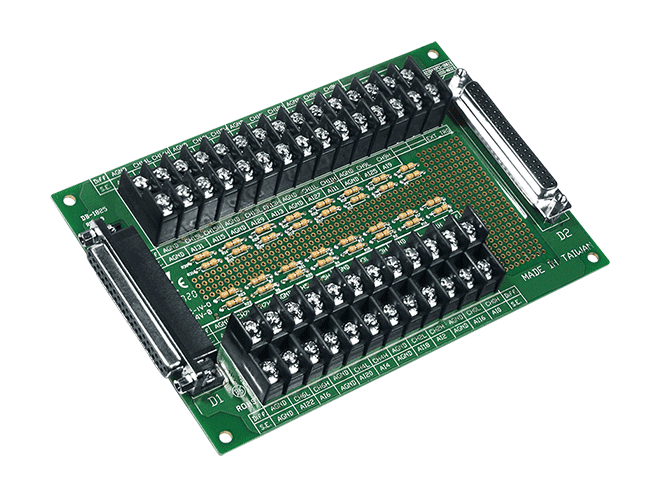

DB-1825/2 DB37 Screw Terminal Board with 2 m CA-3720 Cable
Female DB37 to screw terminal board for PCI-1202U/1602U/1802U data acquisition cards, supplied with a 2 m DB37 male-to-male cable (CA-3720).
- Female DB37 screw terminal board for the 37-pin cable I/O port of PCI-1202U, PCI-1602U and PCI-1802U cards
- Supports 32 single-ended or 16 differential channels
- Blank pads for break detection, low-pass filter, current shunt and voltage divider (manual soldering)
- Supplied with CA-3720 DB37 male-to-male cable, 45 degree, 2 m
- Dimensions 170 mm x 114 mm
- Operating temperature 0 to +60 °C, storage -30 to +80 °C
797,72 kr per st.
| 1–9 st. | 797,72 kr | |
|---|---|---|
| 10–30 st. | 764,49 kr | −4 % |
| 31+ st. | 753,41 kr | −6 % |
Produktinformation "DB-1825/2 DB37 Screw Terminal Board with 2 m CA-3720 Cable"
The DB-1825/2 CR breaks out the 37-pin cable I/O port of PCI-1202U, PCI-1602U and PCI-1802U data acquisition cards onto a screw terminal board, so field wiring can be terminated without working directly at the card. It is supplied with a 2 m DB37 male-to-male cable (CA-3720) for the connection to the card.
The board provides 32 single-ended or 16 differential channels, as stated for this series. Blank pads allow the user to add break detection, a low-pass filter, a current shunt and a voltage divider by manual soldering, which suits engineers who need to adapt the signal conditioning to their own circuit.
The board measures 170 mm x 114 mm and is rated for an operating range of 0 to +60 °C with 10% to 90% humidity, non-condensing. It carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- Field wiring termination for PCI-1202U, PCI-1602U and PCI-1802U data acquisition cards
| Product type: | DAQ daughter board |
|---|---|
| Interface: | DB37 |
| Ports: | 37-pin |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 170 mm x 114 mm |
| Environment | |
| Operating Temperature | 0~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
