CL-220-WF IAQ Data Logger with Wi-Fi, Ethernet and RS-485 Interfaces
Indoor air quality data logger recording PM1/PM2.5/PM10, temperature, humidity and dew point, with Wi-Fi, Ethernet, RS-485 and PoE. Supports DCON, Modbus RTU/TCP and MQTT.
- Records PM1, PM2.5, PM10, temperature, humidity and dew point with date and time stamps
- Stores up to 450,000 records on the built-in data logger
- RS-485 and Ethernet ports with Wi-Fi (IEEE 802.11b/g/n) for flexible networking
- Supports DCON, Modbus RTU, Modbus TCP and MQTT (Ethernet) protocols
- Relay output (1 x Form A, SPST, 30 VDC or 250 VAC @ 16 A) for alarms or IAQ device control
- Redundant power via PoE (IEEE 802.3af, Class 1) or +12 ~ +48 VDC input
4 431,80 kr per st.
| 1–9 st. | 4 431,80 kr | |
|---|---|---|
| 10–30 st. | 4 298,85 kr | −3 % |
| 31+ st. | 4 210,21 kr | −5 % |
Produktinformation "CL-220-WF IAQ Data Logger with Wi-Fi, Ethernet and RS-485 Interfaces"

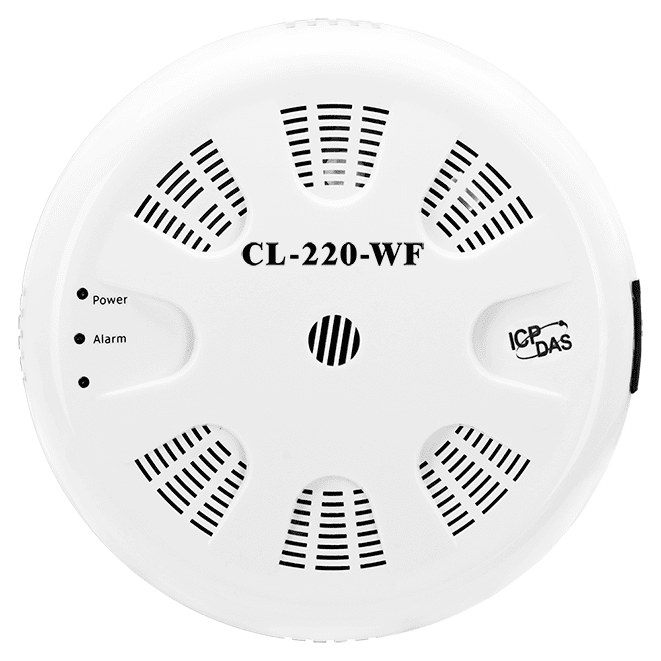

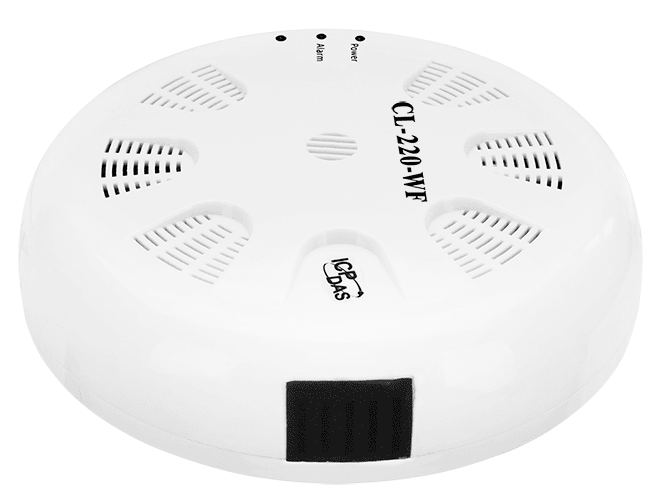

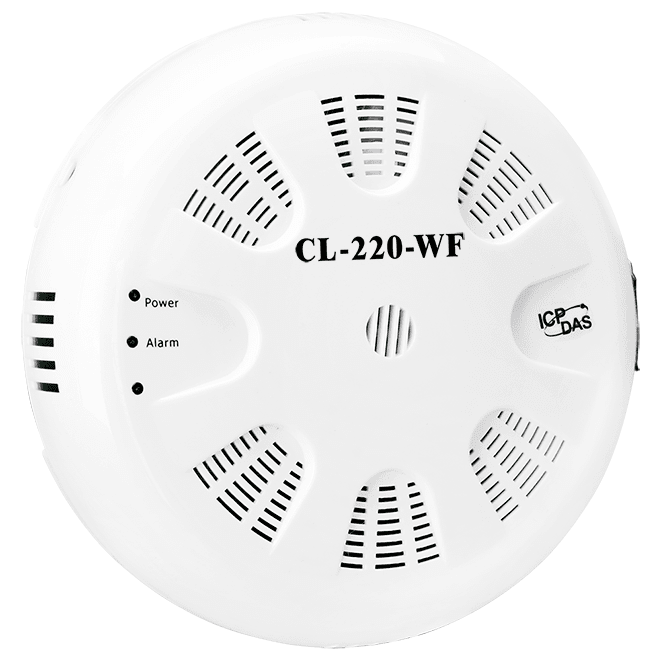

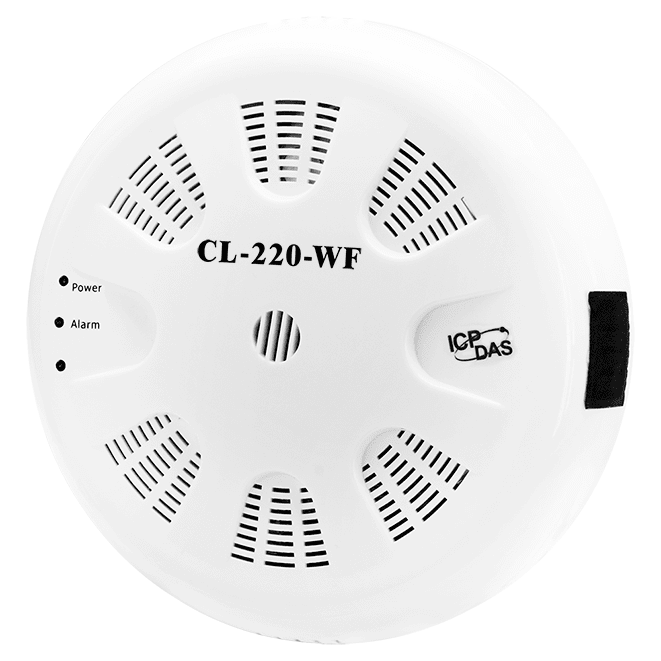

CL-220-WF CR is an indoor air quality data logger that measures PM1, PM2.5 and PM10 particulate levels, temperature, relative humidity and dew point. Readings are stored with date and time stamps, with capacity for up to 450,000 records, and the unit can be configured through its built-in web interface.

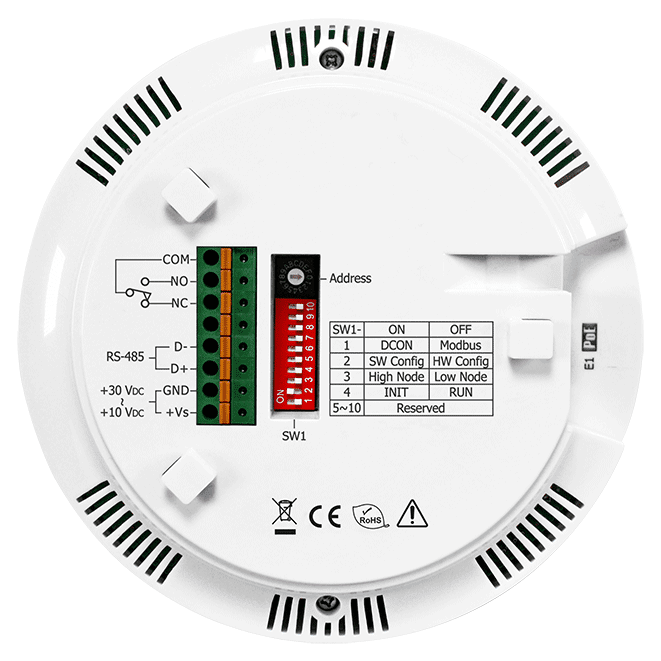

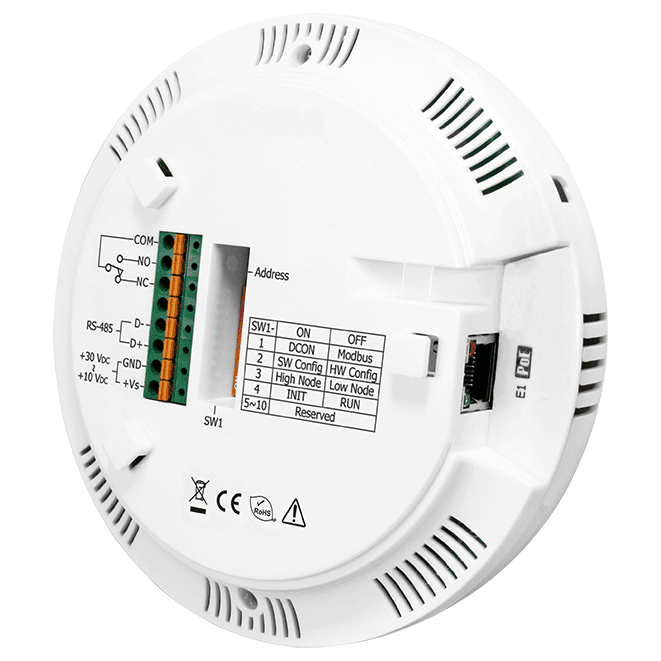

The logger offers RS-485, Ethernet and IEEE 802.11b/g/n Wi-Fi connectivity, so it can be integrated into existing HMI or SCADA systems over DCON, Modbus RTU, Modbus TCP or, on Ethernet, MQTT. A relay output (1 x Form A, SPST) can be used for alarm signalling or to control IAQ equipment. Power can come from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block input, giving redundant supply options.
Mounting options are ceiling or wall, and the housing is rated IP20, so it suits dry indoor locations such as buildings, warehouses, museums and parking facilities.
Applications
- Transportation of Food or Pharmaceuticals
- Food and Beverage Industry (HACCP)
- Blood Stations and Pharmacies
- Building and Energy Management
- Warehouse Management
- Museums, Archives and Galleries
- Indoor or Underground Parking Lot Automatic Monitoring Solution
| Product type: | Data Logger |
|---|---|
| Interface: | Ethernet, RS-485, Wi-Fi |
| Protocol: | DCON, Modbus RTU, Modbus TCP, MQTT |
| Relay outputs: | 1 |
| Ports: | 2 |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Power input: | +12 ~ +48 VDC, PoE |
| Operating temperature: | 0 ~ 50 °C |
| Mounting: | Ceiling or wall |
Specifikationer
| System | |
|---|---|
| Security | IP filter (whitelist) and Password (web) |
| Alarm | PM1/PM2.5/PM10/RH/Temperature |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 450,000 records |
| Temperature Measurement | |
| Range | -10 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Life Time | 10 years |
| Humidity Measurement | |
| Range | 0 ~ 100% RH, Non-condensing |
| Resolution | 0.1% RH, Non-condensing |
| Accuracy | ±5% RH, Non-condensing |
| Life Time | 10 years |
| Dew Point | |
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| PM1/PM2.5/PM10 Measurement | |
| Range | 0 to 1,000μg/m3 ( Laser Type) |
| Resolution | 1μg/m3 |
| Accuracy | ± 10% of FSR. |
| Response Time | 1 seconds |
| Warm-up Time | 20 seconds |
| Life Time | 5 years, Customer has to replace the filter patch. |
| Particle | |
| Sizes | 0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm |
| Wi-Fi | |
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard Supported | IEEE 802.11 b/g/n |
| RX Sensitivity | -95.7 dBm @ 1 DSSS, -74.0 dBm @ 54 OFDM |
| Output Power | 18 dBm @ 1 DSSS, 14.5 dBm @ 54 OFDM |
| Mode | Infrastructure & Limited AP |
| Encryption | WEP, WPA and WPA2 |
| Antenna | 1 dBi (PCB Antenna) |
| Relay Output | |
| Channels | 1 x Form A, SPST 30 VDC @ 16 A or 250 VAC @ 16 A |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 1 x Ethernet |
| Protocol | DCON and Modbus/RTU (RS-485) Modbus TCP(Ethernet, Wi-Fi) and MQTT(Ethernet) |
| Power | |
| Consumption | Non-PoE: 2.3 W (Max.) PoE: 2.5 W (Max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | Ø 150 x 53 (Ø x H) |
| Installation | Ceiling Mounting/Wall Mounting |
| Ingress Protection Rating | IP20 |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
