CAN-8223-G CANopen Remote I/O Unit, 2 I/O Expansion Slots
CANopen slave remote I/O unit with two expansion slots for I-87K or I-8000 series DI, DO, AI and AO modules, with an EDS file generated dynamically by a utility tool.
- Slave-mode CANopen node following CiA 301 v4.02 and CiA 401 v2.1 device profile
- Two expansion slots accepting I-87K or I-8000 series DI, DO, AI and AO modules
- Dynamic PDO mapping, event-triggered, remote-request, cyclic and acyclic SYNC transmission modes
- Node Guarding and Heartbeat Producer error control, with Emergency (EMCY) message support
- Utility tool to generate an EDS file dynamically for different CANopen masters
- Built-in 120Ω terminal resistor and CAN baud rates from 10 k to 1 M
3 057,94 kr per st.
| 1–9 st. | 3 057,94 kr | |
|---|---|---|
| 10–30 st. | 2 969,31 kr | −3 % |
| 31+ st. | 2 902,83 kr | −5 % |
Produktinformation "CAN-8223-G CANopen Remote I/O Unit, 2 I/O Expansion Slots"

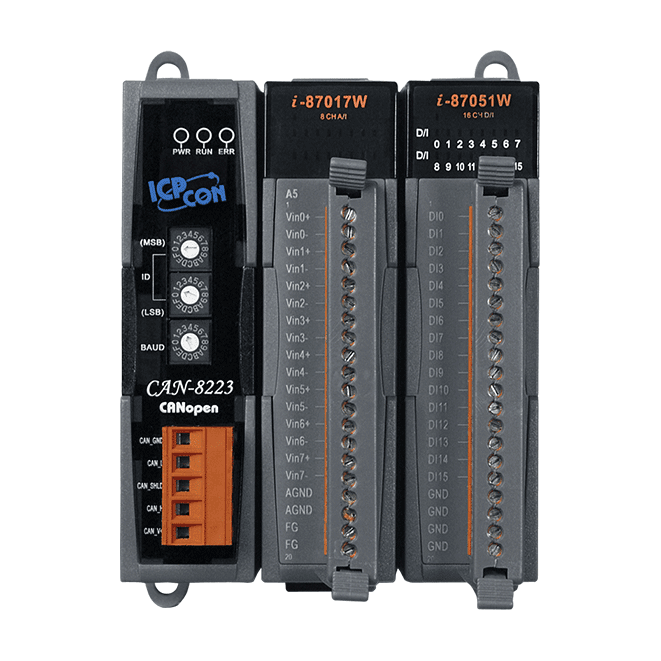

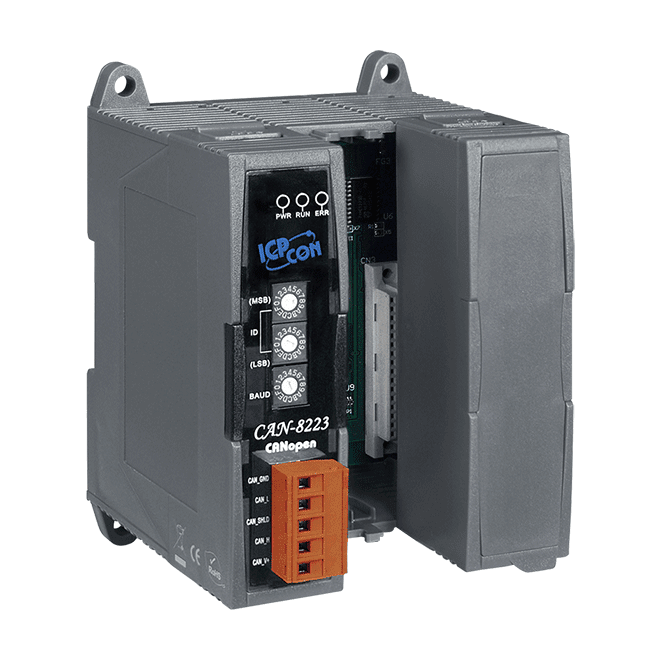

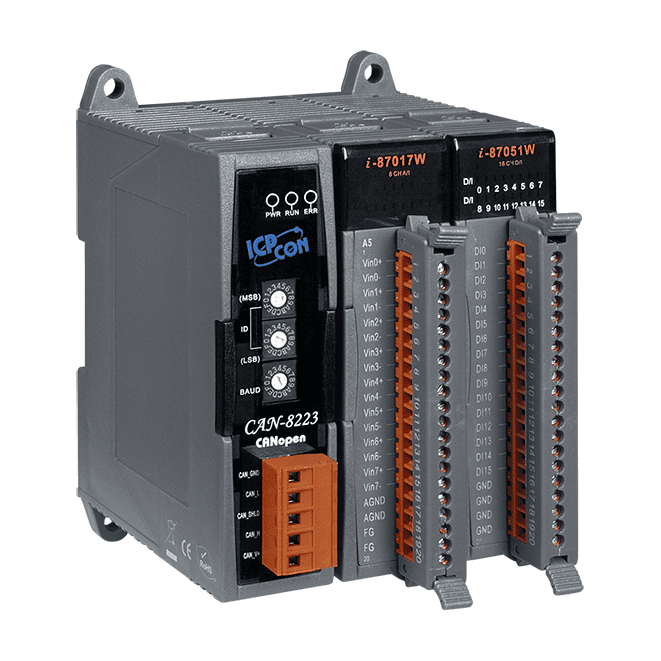

CAN-8223-G is a CANopen slave remote I/O unit that lets engineers add field I/O to a CANopen network by fitting plug-in modules into its two expansion slots. It follows CiA 301 v4.02 and CiA 401 v2.1, so it can be integrated with standard CANopen masters.
Each slot accepts digital input, digital output, analogue input or analogue output modules from the I-87K or I-8000 series, so the channel mix can be tailored to the application. Process data mapping and emergency messaging are supported, and the bundled utility generates an EDS file dynamically, based on CiA SP306, for compatibility with different CANopen master interfaces.
The unit has a built-in 120Ω terminal resistor, a 10 k to 1 M baud rate range and a Node ID range of 1 to 255. Its operating range of -25 to +75 °C and DIN-rail or wall mounting make it suitable for installation in demanding industrial enclosures.
Applications
- Industrial Machinery
- Laboratory Equipment & Research
- Restaurant Appliances
- Maritime
- Medical
- Specialty Vehicles
| Product type: | Remote I/O unit |
|---|---|
| Interface: | CAN bus |
| Protocol: | CANopen |
| Isolation: | 3000 VDC (DC-to-DC), 2500 Vrms (photo-coupler) |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| I/O Expansion | |
| Slots | 2 slots |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 255 |
| No. of PDOs | 32 RxPDO , 32 TxPDO |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Mechanical | |
| Dimensions (mm) | 95 x 132 x 91 (W x L x H) |
| Installation | DIN-Rail, Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
