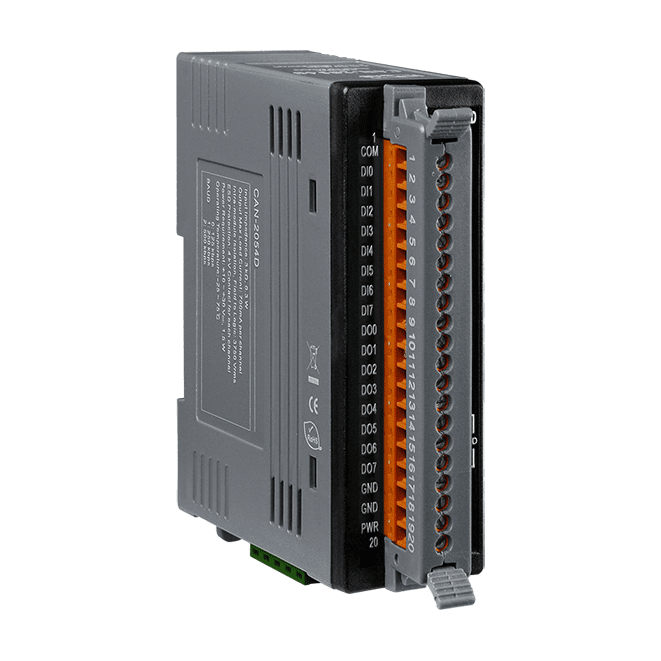

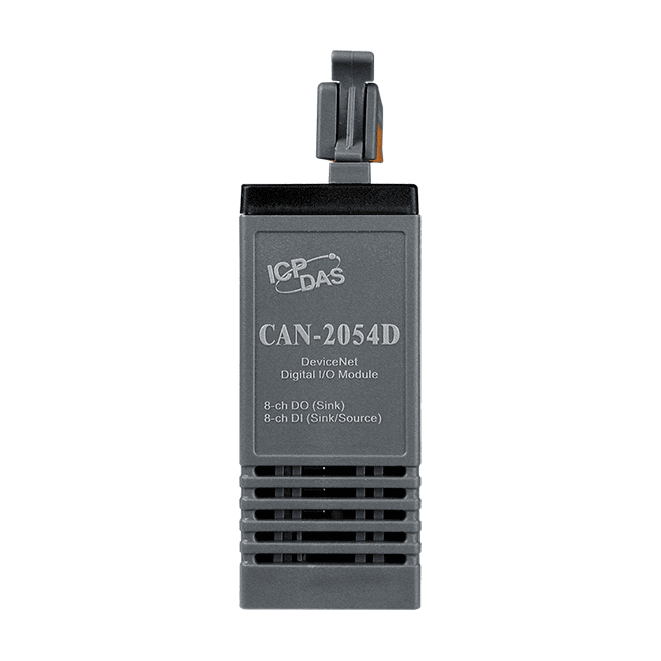

CAN-2054D DeviceNet Slave Module, 8-ch Isolated DI and 8-ch Isolated DO
DeviceNet slave I/O module with 8 isolated digital inputs (wet contact) and 8 isolated sink-type open-collector outputs, for connecting discrete I/O to a DeviceNet master.
- DeviceNet general I/O slave with 8 isolated wet-contact digital inputs and 8 isolated sink-type open-collector outputs
- Configuration and I/O access through the EDS file for the DeviceNet master interface
- Group 2 only server (non UCMM-capable) with predefined master/slave connection set
- One connection each for explicit messaging, polled I/O and bit-strobe I/O
- Supports DeviceNet heartbeat and shutdown messages
- Output load of 700 mA per channel with 3750 Vrms intra-module isolation
2 016,47 kr per st.
| 1–9 st. | 2 016,47 kr | |
|---|---|---|
| 10–30 st. | 1 961,07 kr | −3 % |
| 31+ st. | 1 916,75 kr | −5 % |
Produktinformation "CAN-2054D DeviceNet Slave Module, 8-ch Isolated DI and 8-ch Isolated DO"
The CAN-2054D is a DeviceNet slave module that gives a DeviceNet master access to eight digital inputs and eight digital outputs over a single node. Input and output status can be read, and the module's configuration can be set, through the supplied EDS file, so it can be added to a DeviceNet network without custom programming.
Each input channel is isolated and accepts sink or source signals from a wet contact, with an ON level of +3.5 ~ +30 VDC. Each output channel is an isolated sink-type open-collector driver rated at 700 mA per channel, with a load voltage of +5 ~ +30 VDC and 3750 Vrms intra-module isolation. The module is suited to interfacing with PNP, NPN, TTL and relay contact signals.
The module operates as a Group 2 only server (non UCMM-capable) and supports the predefined master/slave connection set, with one connection each for explicit messaging, polled I/O and bit-strobe I/O. Heartbeat and shutdown messages are supported. It mounts on DIN-rail and is specified for an operating temperature of -25 ~ +75 ℃.
Applications
- Machine control
- Factory automation
- Packaging machine control
- Remote data acquisition
- Environmental monitoring
| Product type: | Fieldbus I/O module |
|---|---|
| Interface: | DeviceNet |
| Protocol: | DeviceNet |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 1 |
| Isolation: | Isolated DI and DO |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 2 x DeviceNet status |
| Digital Input | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 3 kΩ, 0.3 W |
| Digital Output | |
| Channels | 8 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 700 mA per channel |
| Intra-module Isolation | 3750 Vrms |
| DeviceNet | |
| Ports | 1 |
| Connection Supported | 1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O |
| Baud Rate | 125 kbps, 250 kbps, 500 kbps |

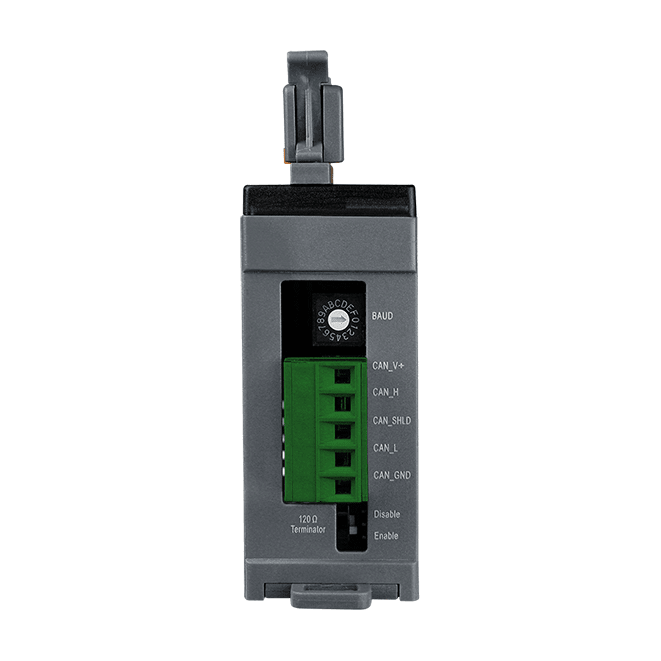

| Terminal Resistor | Switch for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0, Errata5 |

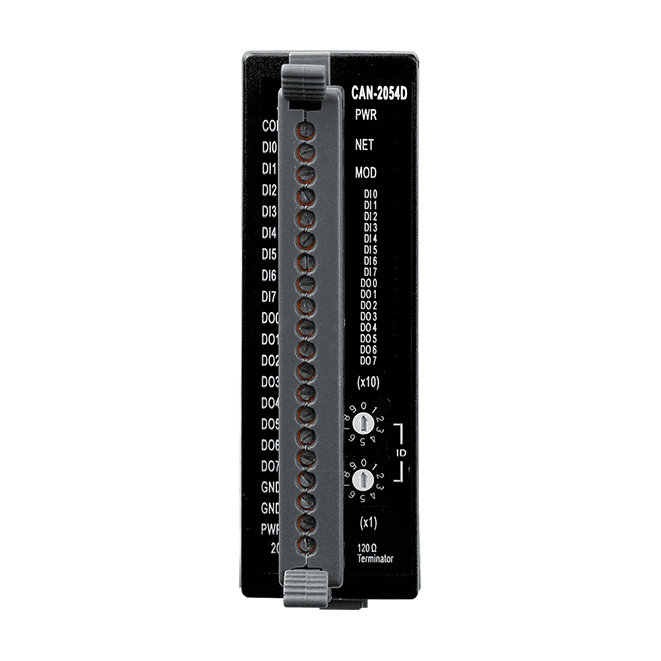

| Node ID | 0 ~ 63 |
| Shutdown Message | Yes |
| Heartbeat Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 32.3 x 99 x 77.5 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
