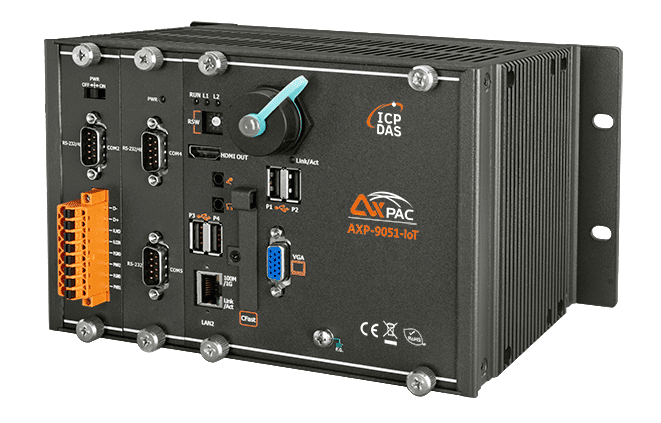

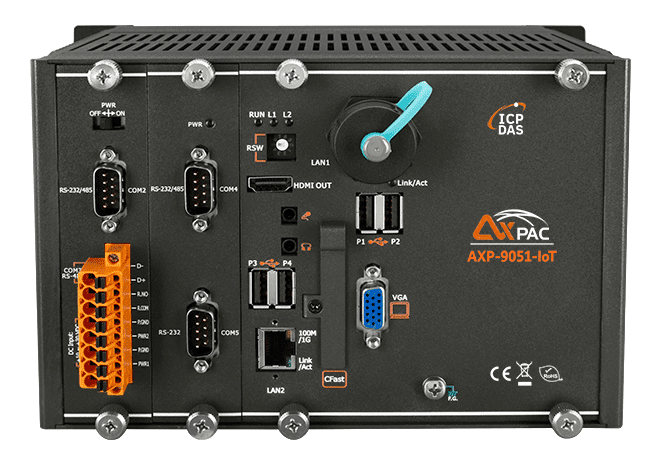

AXP-9051-IoT Windows 10 IoT PAC with Intel Core i5-8365UE CPU
Metal standard Windows 10 IoT PAC combining control, computing and HMI in one unit, with an Intel Core i5-8365UE CPU, 16 GB DDR4 and 128 GB SSD.
- Windows 10 IoT Enterprise LTSC (64-bit) operating system
- Intel Core i5-8365UE processor, 1.6 ~ 4.1 GHz, 4 cores / 8 threads
- 16 GB DDR4 SDRAM and 128 GB SATA III SSD, plus a CFast card slot
- VGA and HDMI outputs, up to 1920 x 1200 (VGA) and 4096 x 2160 @ 30P (HDMI)
- Dual 10/100/1000 Base-TX Ethernet ports
- 1 x RS-232, 1 x RS-485 and 2 x RS-232/RS-485 ports, 3000 VDC isolated
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "AXP-9051-IoT Windows 10 IoT PAC with Intel Core i5-8365UE CPU"
The AXP-9051-IoT is a metal standard programmable automation controller running Windows 10 IoT Enterprise LTSC (64-bit). It brings computing, I/O and operator interface together in one housing, which suits projects that need HMI, data acquisition and control in a single PAC.
An Intel Core i5-8365UE processor is paired with 16 GB DDR4 SDRAM and a 128 GB SATA III SSD, with a CFast card slot for additional storage. The platform can run Universal Windows apps and traditional Windows applications side by side. Connectivity includes dual 10/100/1000 Base-TX Ethernet ports, VGA and HDMI display outputs, USB 2.0 and USB 3.0 ports, and isolated RS-232 and RS-485 serial ports. Remote I/O can be added using the manufacturer's Ethernet and RS-485 I/O modules.
Reliability features include a dual watchdog timer, a redundant power input with an alarm relay, and a CPU heat sink with a Smart Fan. The unit operates from -25 ~ +60 °C and supports DIN-rail or wall mounting. This ordering code is listed as RoHS compliant and carries CE, UKCA and WEEE marking.
Applications
- Factory Automation
- Automated Test Equipment
- Smart Transportation
- IIoT
- InduSoft
- LabVIEW
- Wireless
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC (serial) |
| Power input: | +19 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Intel® Core™ Whiskey Lake U i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 16 GB DDR4 SDRAM (SODIMM slots with a 16 GB DDR4 x 1) |
| Storage | 1 x 128 GB SSD (SATAIII) 1 x CFast card slot |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | 1xVGA, 1xHDMI |
| Resolution | VGA 1920 x 1200 @ 60Hz HDMI 4096 x 2160 @ 30P |
| LED Indicators | |
| Status | 1 x System 2 x Power 2 x Programmable |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Intel® I219LM) 1 x RJ-45, 10/100/1000 Base-TX (Intel® I211LM) |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated) 1 x RS-485 (3000 VDC Isolated) 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 2 x USB 3.0 |
| Power | |
| Capacity | 80 W supply to CPU and backplane, 40 W supply to I/O expansion slots and USB ports, 120 W in total |
| Input Range | +19 ~ 30 VDC (2 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 30.5 W (Typical) 71 W (CPU Full Load) |
| Mechanical | |
| Dimensions (mm) | 239 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Cooling Type | CPU Heat Sink and 180,000 hour long-life fan with Smart Fan function |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
